Cortex GS-6 - Page 18

18

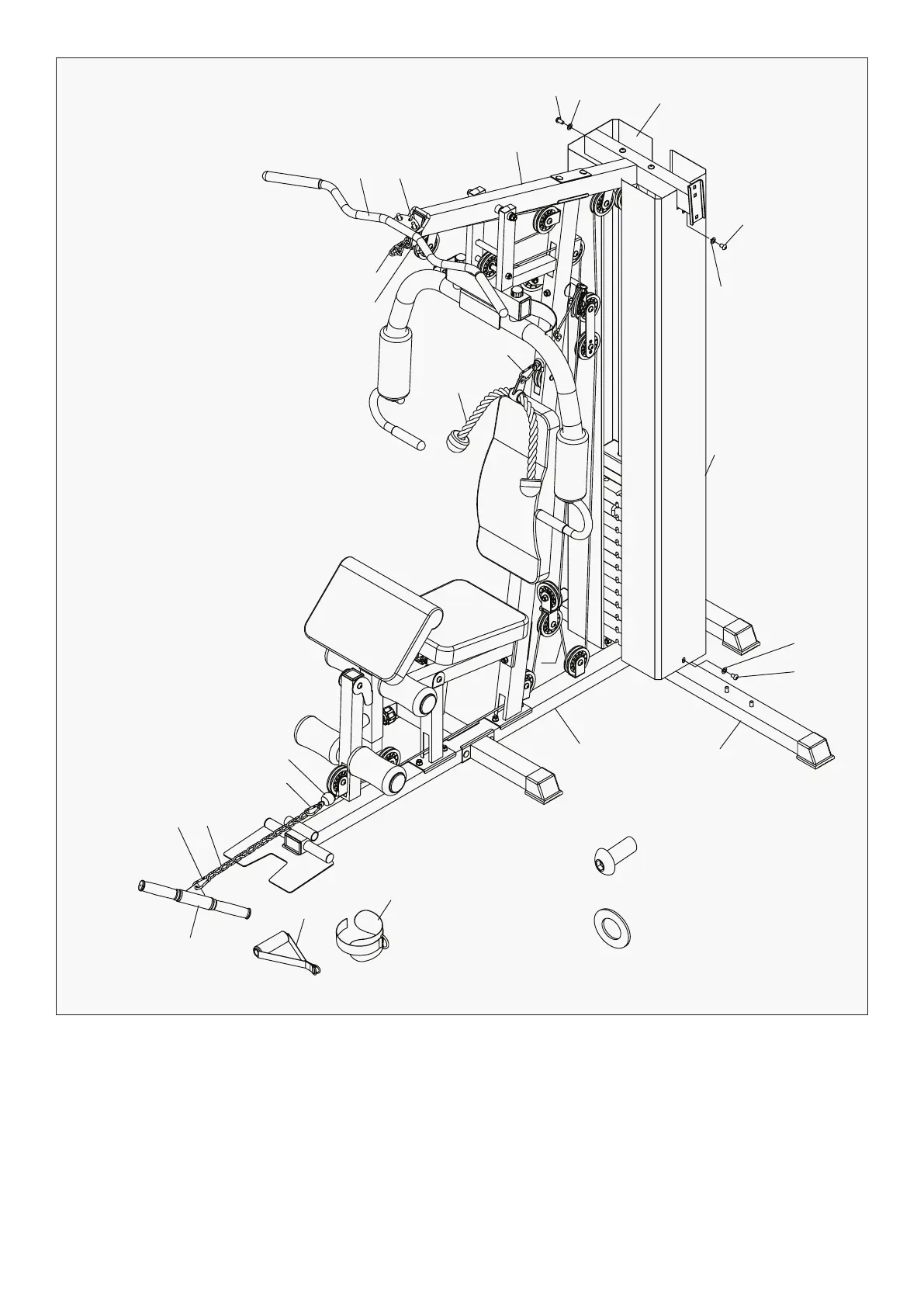

STEP 9
| ASSEMBLY INSTRUCTIONS
1. Attach Right Weight Plate Cover (#60) and (#61) to frame (#88) and (#90), secure with 2 M10x20
(#49), 2 WashersΦ10 (#14) .
2. Attach Lat Bar (#80) to the Lat Cable (3380mm) (#75) though 6 Chains (#79) with 2 C-clip (#77).
3. Attach Small Bar Set (#83) to the Triceps Cable (4215mm) (#74) though 15 Chains (#82) with 2
C-clip (#77).
4. Attach Triceps Rope (#78) to the Triceps Cable (4215mm) (#74) with 1 C-clip (#77).
#49 M10X20 - 1pc
#14 Φ10 - 4pcs
80
79
75
78
77
77
90
49
49
14
61
14
49
88
89
74
77
77 82
83
107
87
60
14
74
