Cortex GS-6 - Page 21

21ASSEMBLY INSTRUCTIONS |

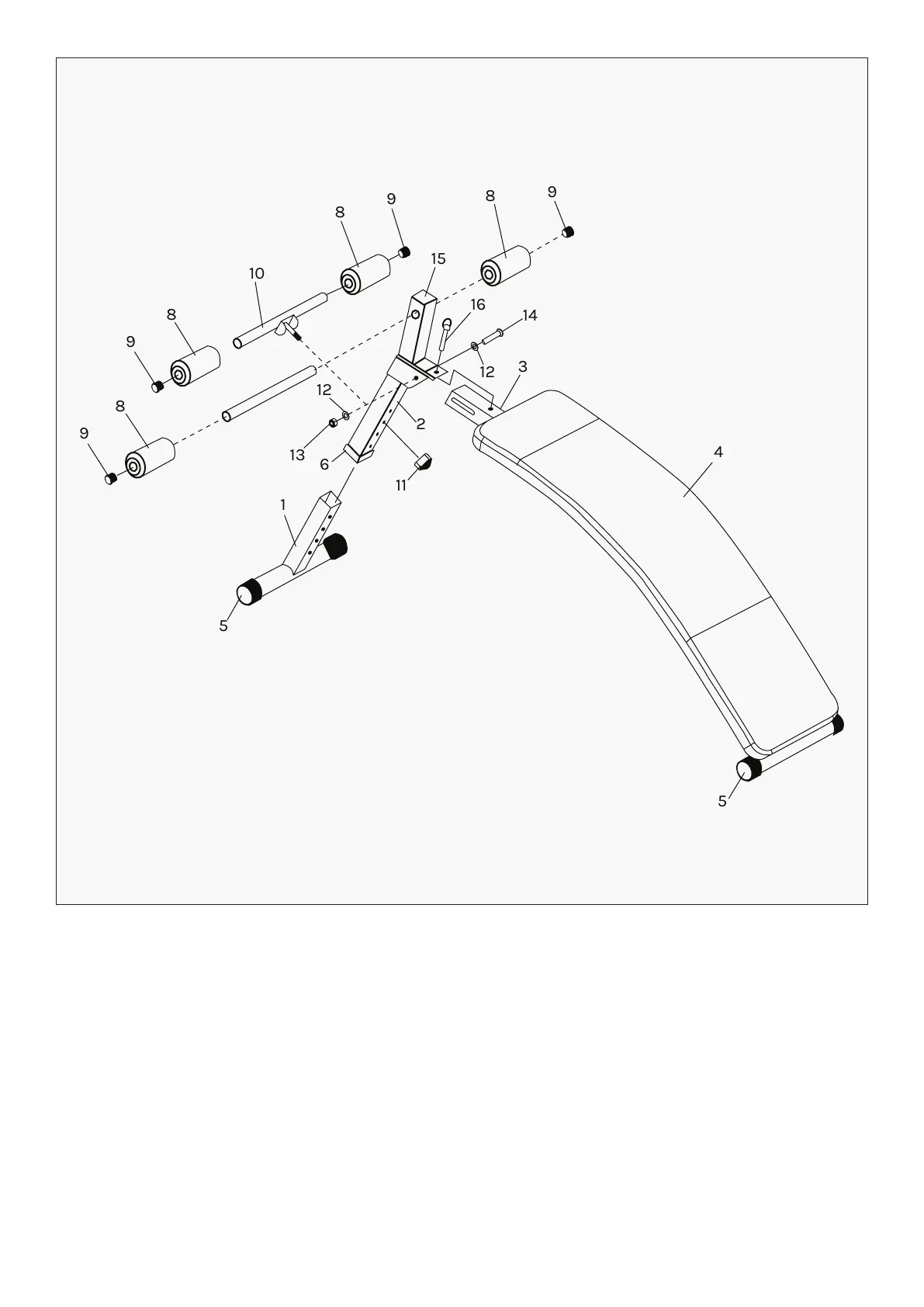

STEP 12
1. Attach 1x Arch Frame (#3) to the Front Vertical Stand (#2). Secure it with 1x Carriage Bolt M10 x
70mm (#14), 2x Washerφ10 (#12) and 1x Allen Bolt M10mm (#13).
2. Attach the 1x Base Frame (#1) to the Front Vertical Stand (#2). Adjust the height and secure it
with 1x Adjustable Position Foam Tube (#10) and 1x Lock Knob (#11).
3. Push 4x Foam Rolls (#8) onto Long Foam Tube (#7) and Adjustable Position Foam Tube (#10).
4. Put Plus (#9) onto the two ends of Long Foam Tube (#7) and Adjustable Positional Foam Tube (#10).
5. Check that all the parts is tight.
