5 | PARTS LIST
III. PARTS LIST
Part No. Description Qty
1
Tube, Bottom Cross Brace
1
2
Assembly, Rear Left Stabiliser
1
3
Assembly, Rear Right Stabiliser
1
4
Assembly, Stand Leg
2
5
Weldment, Left Dumbbell Platform
1
6
Weldment, Right Dumbbell Platform
1
7
Weldment, Towel Bar
1
8
Foot Pegs, Set of Four
1
9
Hold Down Straps, 2F 2M
1
10
Nut-NL 0.375-16 G2-Blk Z
20
11
Washer-Flat 0.375 Regular BLK Z
36
12
Screw-BHCS 0.375-16x3.0 G2-BlkO
8
13
Screw-BHCS 0.375-16x2.75 G2-BlkO
4
14
Screw-BHCS 0.375-16x2.5 G2-BlkO
4
15
Screw-FHCS 0.375-16x1.0 G2-BlkO
4
16
Plate, Center with Logo
1
Hardware Card A Qty
2.75" Screw, Button Head
4
2.5" Screw, Button Head
4
1.0" Screw, Flat Head
4
Nut, Lock
12
Washer, Flat
20
Hardware Card B Qty
3.0" Screw, Button Head
8
Nut, Lock
8
Washer, Flat
4
7/32" Allen Wrench
1
Tools Required
Hardware
You will also need:
7/32" Allen Wrench (included)
7/32" Allen Wrench (included)
9/16: Socket
9/16" Wrench or Adjustable Wrench
Utility Knife or scissors to cut nylon ties

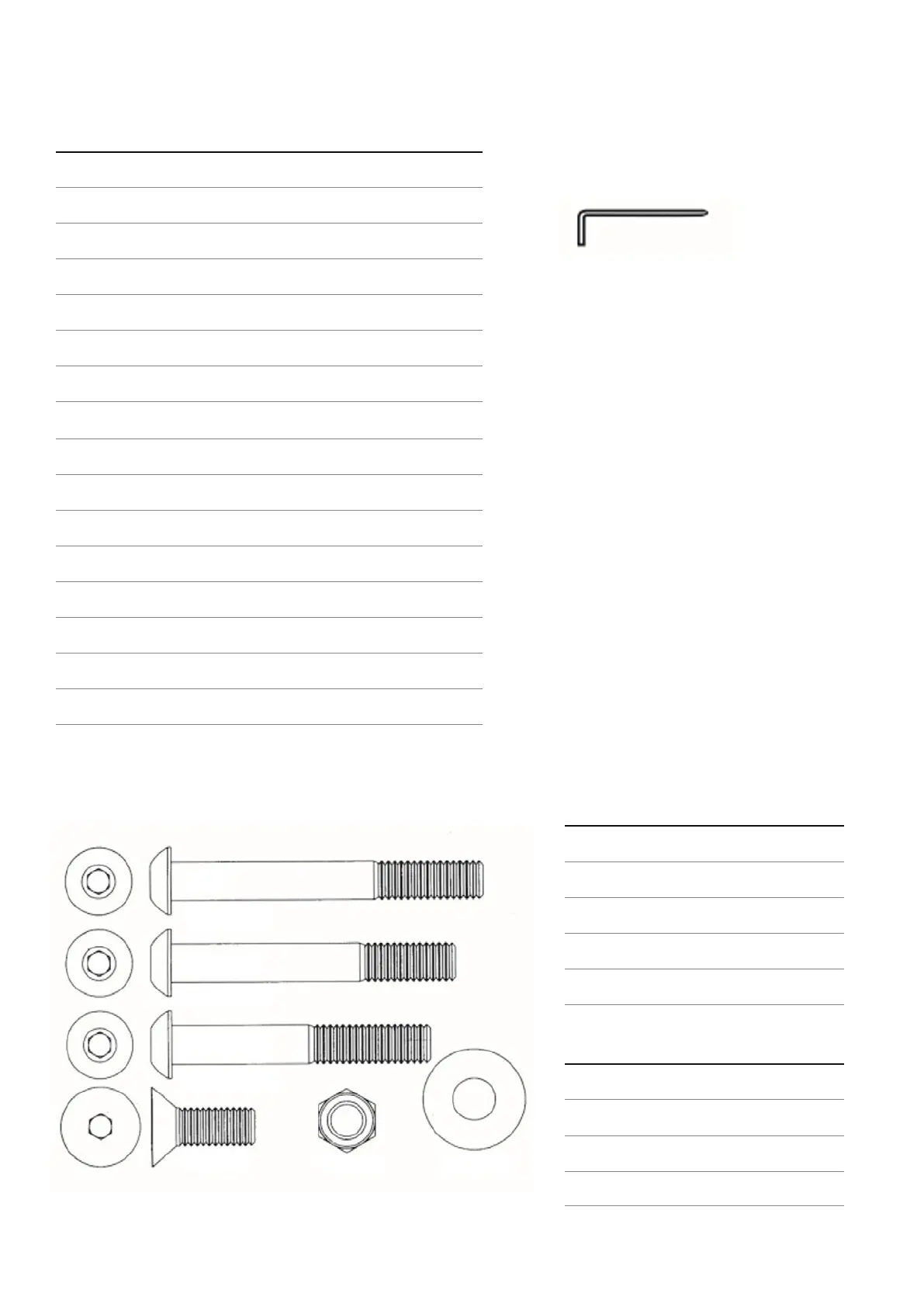

3.0"
2.75"
2.5"
Button Head
Button Head
Button Head
Flat Head Lock Nut Flat Washer
