Electrical Installation
All model ovens on the front cover are dual rated, designed to be connected to
Either 208/240V AC ,60Hz, 3 wire , two-phase power supply.
The electrical supply should be 3-wire two-phase AC. Install a suitable conduit box(not furnished). An
appropriately-sized, U-listed conduit connector must be used to correctly attach the conduit to the junction box.
Important: Local Codes may vary; installation, electrical connections and grounding must comply with all
applicable local codes.
lf local codes permit grounding through the electrical supply neutral, connect both the white neutral wire and the
bare ground wire from the oven to the white neutral electrical supply wire.
Three-wire Connection
Connect red wire from oven to red wire injunction box.
Connect black wire from oven to black wire in junction box.
Connect green ground wire from oven to gray neutral wire in junction box.
The conduit cable, where connected at the oven, swivels. Rotate conduit cable upward (or downward) and direct
through hole prepared in cabinet to attach to J-Box.
To maintain serviceability, the flex conduit must not be shortened and should be routed to permit temporary
removal of the oven.
Circuit Required
208V,60Hz
240V,60Hz
12AMP
15AMP

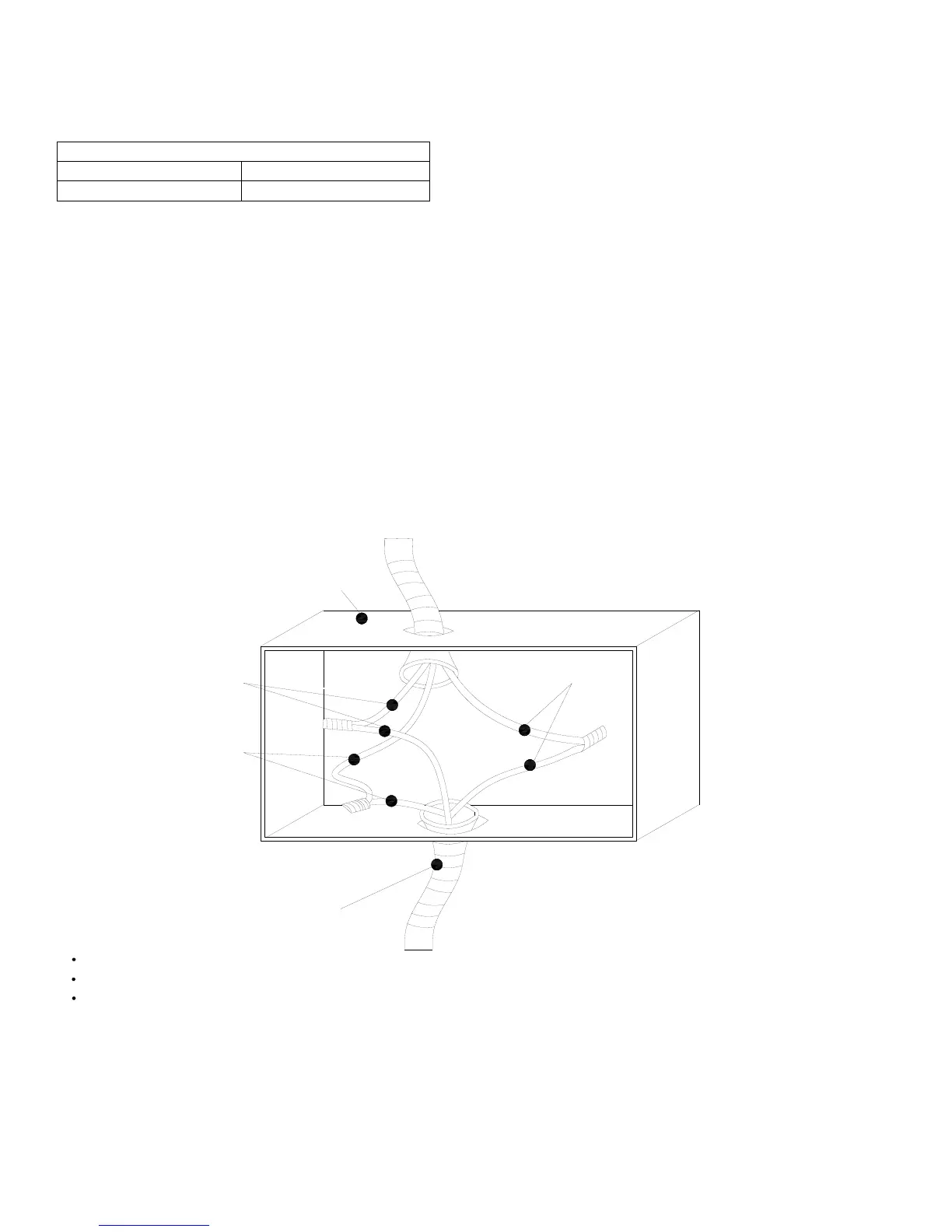

Cable from
power supply
Cable
from oven
Grounded Neutral
U.L.-Listed conduit connector
Black wires
Red wires
Green wires
Junction box
