7
ENGLISH
!

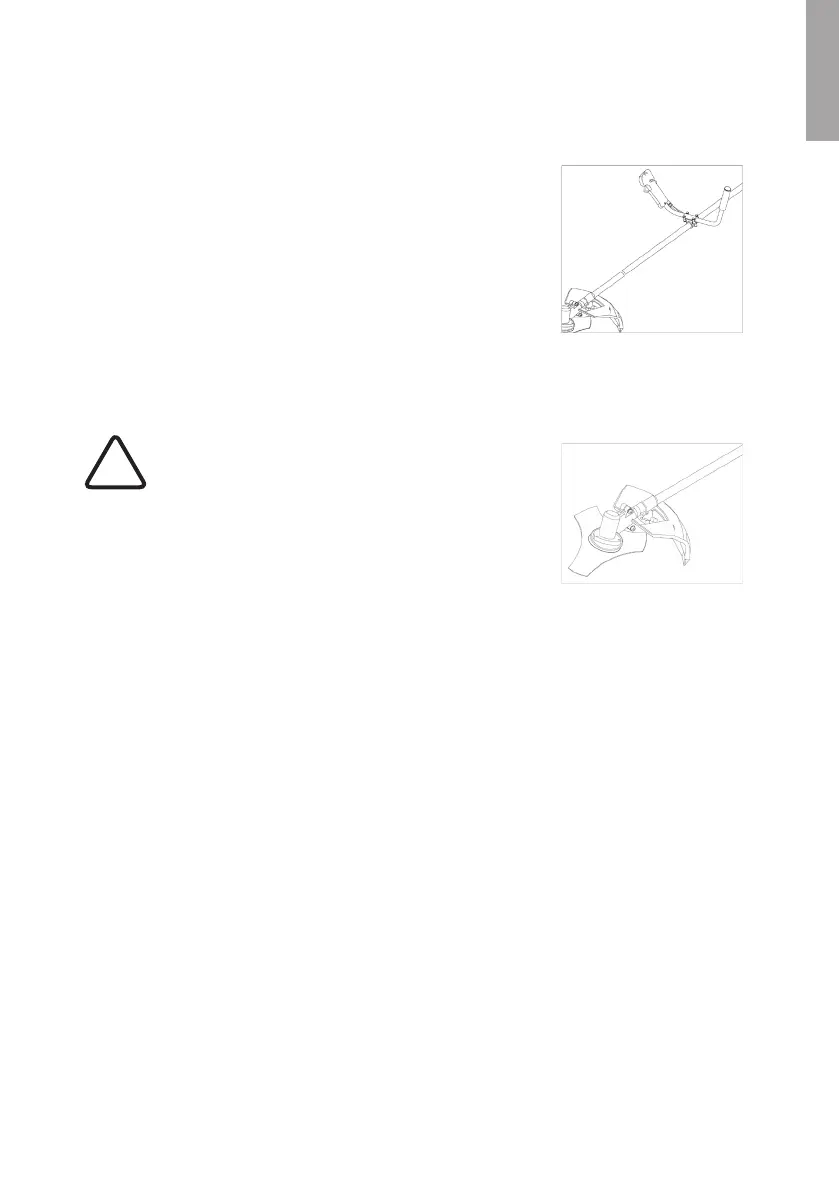

5. Assembly
.1 Assembling the handle
1. Loosen the 4 screws on the handle fastening which is
assembled on the shaft.
2. Place the handle in the handle fastening so that the
higher part (with the throttle control) comes as close to
the shaft as possible.
3. Screw the 4 bolts loosely on the handle fastening
4. Adjust the placement of the handle when the assembly is
finished.
. Assembling the trimmer protection
Warning: The trimmer protection must be
assembled correctly to protect the operator and
to limit the length of the wire, as it includes a
blade that cuts the wire.
1. Loosen the 4 bolts on the underside of the fastening
assembled on the shaft.
2. Screw the trimmer protection on using the bolts (place
the two plates included in the tool kit under the screw
heads for reinforcement).
. Assembling the harness
Using the harness:
A) Hold the trimmer to your right side
B) Place the wide strap over your left shoulder
C) Tighten the waist strap.
D) Attach the spring hook to the shaft loop.
E) Adjust the harness so that the trimmer is balanced. Adjust the placement of the
handle if necessary.
• When using the trimmer blade, the harness must be balanced so that the head
of the trimmer is 0 to 300 mm above the ground.
• When using the brushwood blade, the harness must be balanced so that the
blade is 100 to 300 mm above the ground.
