Mounting and adjustments
Important! Always unplug the saw before servicing.

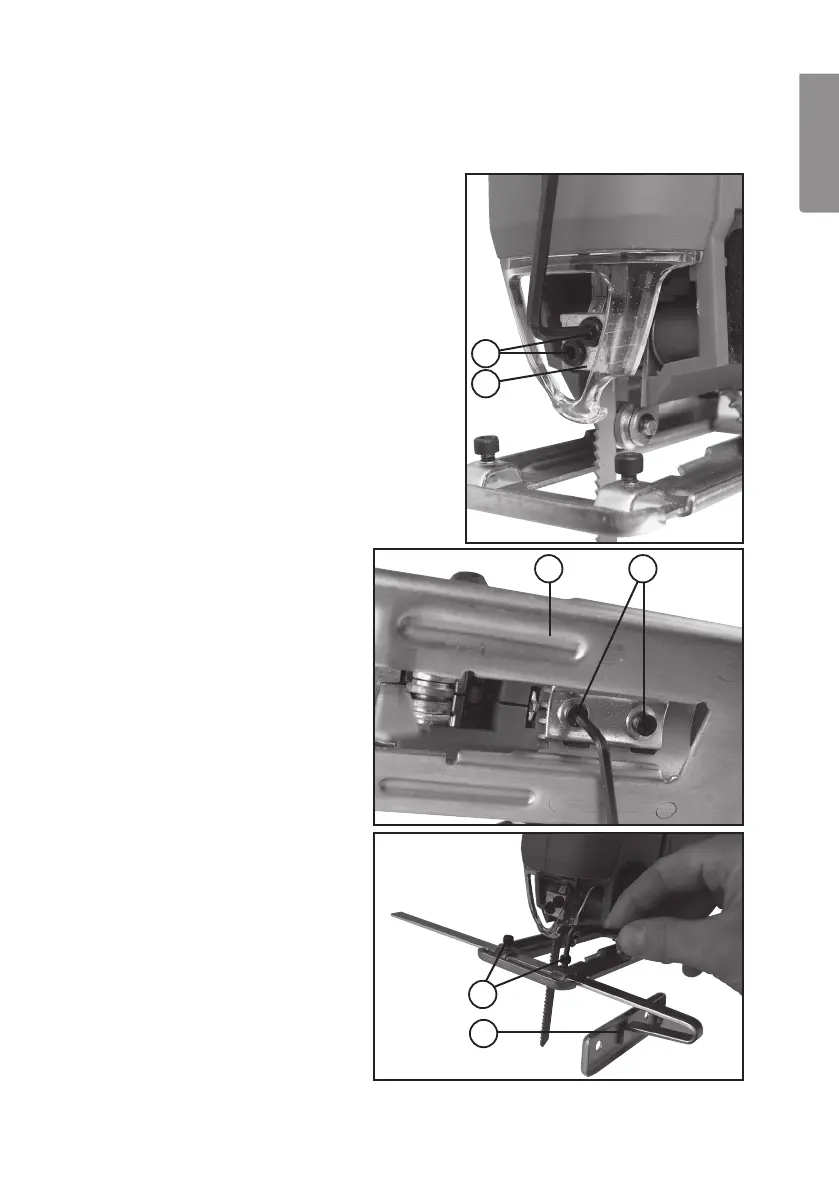

Changing the saw blade
• Loosenthesocketheadscrews(12)
holding the saw blade.
•
Insert the saw blade into
the blade holder (5).
• Tightenthescrews(12).
• Makesurethatthebladeis
correctly mounted.
Adjusting the foot plate
• Thefootplate(6)canbetilted
max. 45° to the right or left.
• Loosenthesockethead
screws (13).
• Pullthefootplate(6)backwards
and set the desired angle.
• Tightenthesockethead
screws (13).
Sawing with
the parallel guide
• Mounttheparallelguide(10)
into the slots.
• Setthedesiredmeasurement.
• Tightenthescrews(14).
