INSTALLING THE FRONT FANS &
THE FRONT RADIATOR
前板风扇&水冷排安装说明 , 前板風扇&水冷排安裝說明
1918

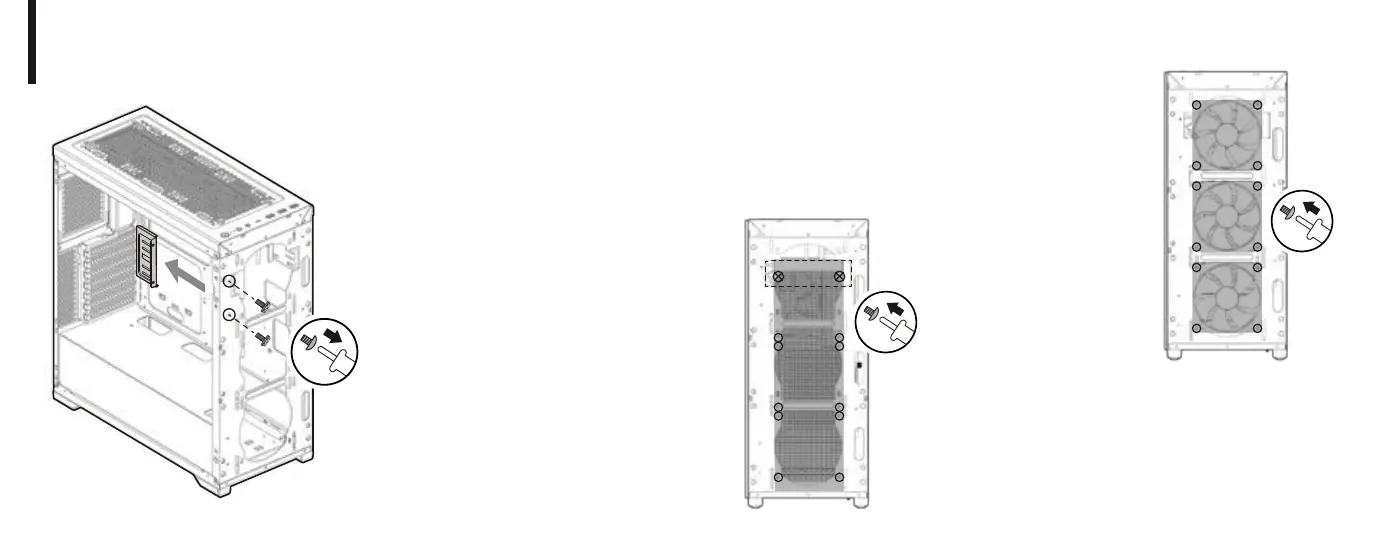

Please remove the 5.25” ODD mounting bracket first,
and then install the front fans or the radiator.
请先拆下5.25” ODD锁孔档板，再安装前板风扇或水冷排。
請先拆下5.25” ODD鎖孔檔板，再安裝前板風扇或水冷排。
Please install the fans or the radiator from the inside of the front panel.
请从前板内侧安装风扇或水冷排。
請從前板內側安裝風扇或水冷排。
There are two mounting holes of the 360mm radiator unable to be screwed
because of the space of 5.25” ODD. Please tighten the rest of the screws so the
radiator can be fixed well at the front panel.
当前板安装360mm水冷排，会有两个锁孔悬空，此设计是为了预留5.25” ODD空间，
请将其余螺丝全都锁紧，水冷排即可妥善固定于前板。
當前板安裝360mm水冷排，會有兩個鎖孔懸空，此設計是為了預留5.25” ODD空間，
請將其餘螺絲全都鎖緊，水冷排即可妥善固定於前板。
Install the fans
Install the radiator
