Deck Height Indicator Icons (g. 20 & 21)
The dash display houses a set of icons that make up
the deck height indicator (g. 20). A lit LED shows
the current deck height. Operate the deck lift handle
(g. 21) to change the deck height. The LED display
will change to show the new deck position. There are
nine deck height positions. Position 9 offers the
longest cut , while position 1 offers the shortest.
To help prevent grass scalping start with a longer cut.
Move the deck to a lower position on second trim to
achieve desired nish.
Digital Display Clock (g. 22 & 23)
The clock display has three functions.
Primary function (g. 22) - During normal use the
display indicates the current time in digital format.
Secondary function (g. 23) - In secondary mode
the clock displays engine rotational output in terms
of revolutions per minute (RPM). The RPM level is
displayed briey at startup before the display
switches to clock mode. The display also switches
from clock mode briey if engine output jumps when
throttle is increased.
Setting the clock - The clock can be reset using the
two hidden touch pads situated either side of the
clock display (g. 22).
To reset the clock
1 - press and hold touch pad 1 until the two
circular digits begin to double ash.
2 - Press hidden touch pad 1 once to change the
hour to the next sequential digit. Keep pressing
the pad to cycle to the desired number.
3 - Press hidden touch pad 2 once to change the
minute to the next sequential digit. Keep pressing
the pad to cycle to the desired number.
The clock will automatically leave edit mode when
left for a few seconds. The two circular digits will
revert back to single ash to signal the process is at
an end.
Service intervals
The clock will automatically display Ins 1, Ins 2 and
Ser at set intervals during the life of the tractor.
Ins 1 - Displayed at 20 hours total run time. At
notication thoroughly visually inspect the condition
of the tractor.
Ins 2 - Displayed at 50 hours total run time. At
notication thoroughly visually inspect the condition
of the tractor.
Page 20

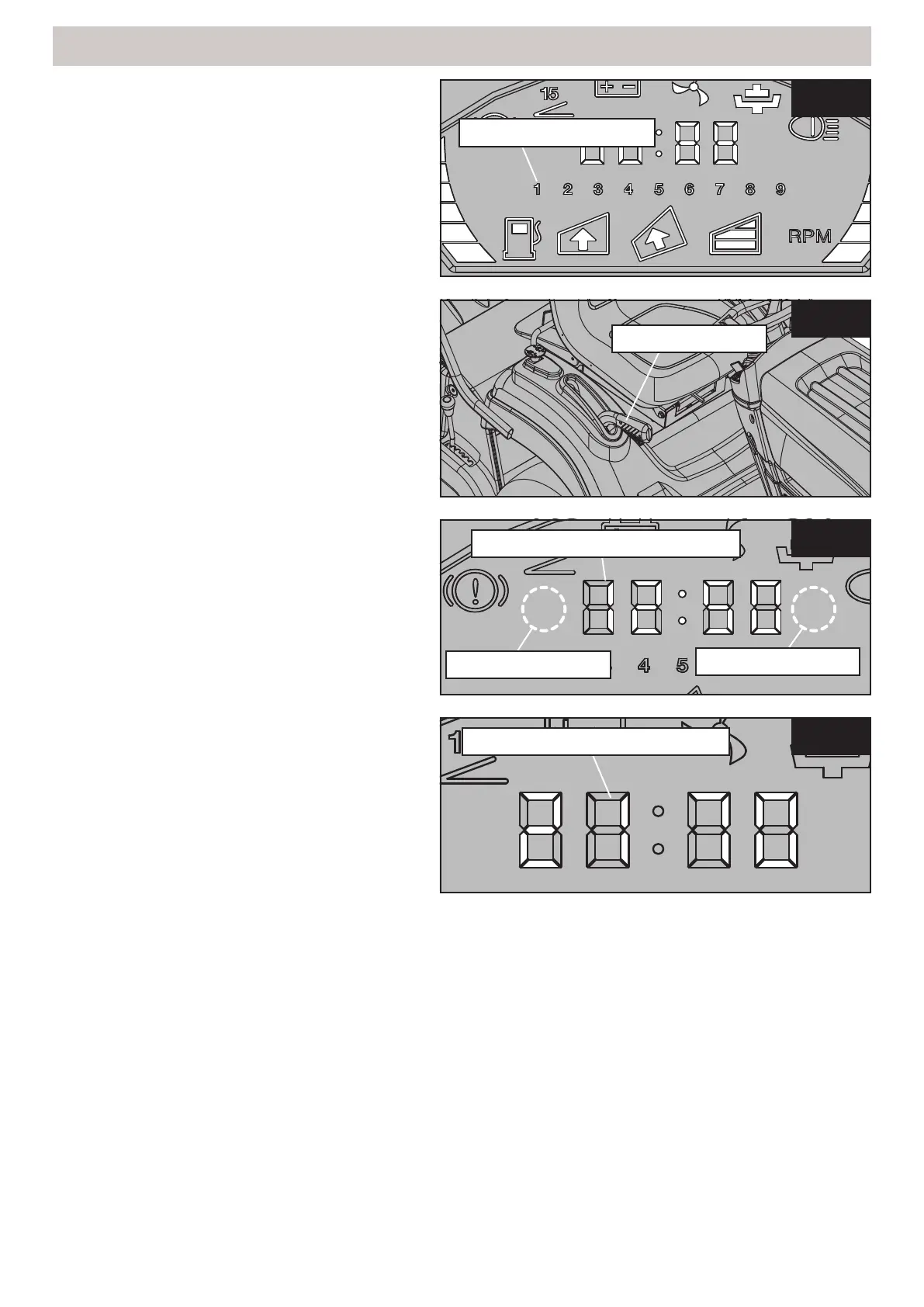

fig. 20
fig. 21
Deck Height Indicator
Deck lift handle
fig. 22
Clock mode (example figures only)
fig. 23
RPM mode (example figures only)
Hidden touch pad 1
Hidden touch pad 2
Dashboard Display and Controls
Ser - Displayed at 100 hours total run time. When this
notication displays the tractor has completed 100 hours
service. This unit requires full inspection and service by
your nearest approved dealer.
Clearing inspection notes
To clear Ins 1 and Ins 2 notications;
• Press and hold touch pad 1 until Clrd is displayed.
To clear Ser notication;
• Ser notications must only be cleared by an approved
dealer after the tractor is fully serviced.
See page 46 for service checklist information.
