CountyLine CL-30P-DDF - Page 7

30” PEDESTAL FAN
Item # Description Part Number
1 Logo Plate 95-043-0360
2 Front Grille 95-032-0180
3 Height Adjustment Knob 95-015-0205
4, 5, 6
Fan Blade Assembly 95-003-0630
7 Power Switch (Chain) 95-031-0140
8 Motor Assembly 95-030-0545
9 Rear Grille 95-032-0280
10 Height Adjust. Knob Nut 95-015-0215
11 Pipe Ring 95-017-0215
12 Pipe Support 95-017-0220
13 Lower Support Pole 95-017-0205
Item # Description Part Number
14 Latch Spring 95-060-0210
15 Upper Base 95-024-0225
16
Lower Base (Rubber
Base Ring)
95-024-0235
17 Motor Support 95-030-0560
18 Left Support 95-030-0570
19 Right Support 95-030-0575
20 Tilt Adjustment Knob 95-015-0210
21 Upper Support Pole 95-010-0305
22 Power Cord 95-026-0260
23 Capacitor 95-004-0240
Replacement Parts

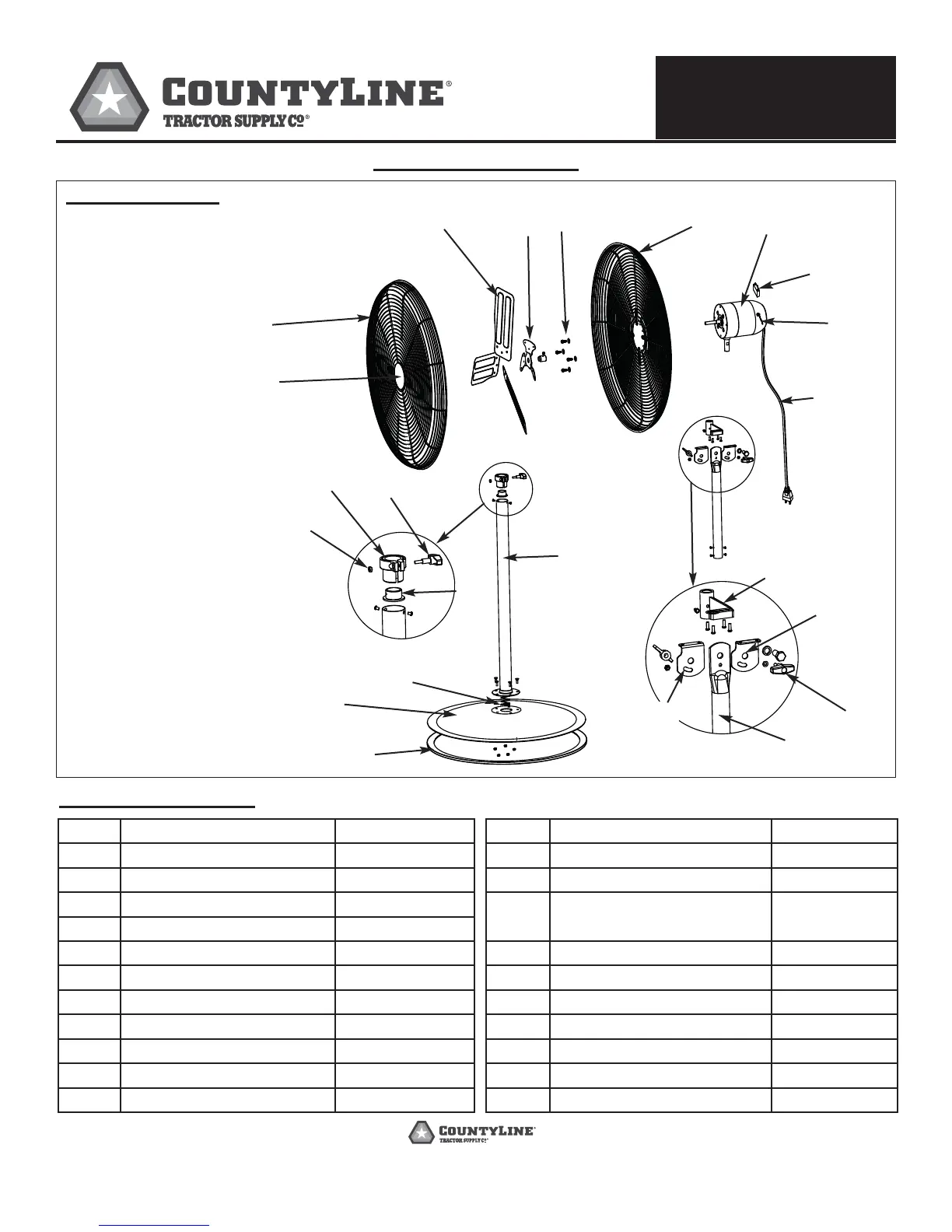

Figure 6: Exploded View of
CL-30P-DDF
1
2
12
4
5
6
7
9
8
3
10
11
13
14
16
17
19
22
21
15
20
18
23
Exploded View
