CountyLine CL-30P-DDF - 24-Inch Barrel Fan; Floor Installation and Parts

1. Locate fan in safe, desired position on level ground,
and connect to approved power source.
Replacement Parts
Item # Description Part Number
1 Front Grille 95-043-0415
2 Fan Barrel 95-001-0400
3 Power Knob 95-027-0130
4 Power Knob Holder 95-031-0325
5 Capacitor 95-004-0235
6 Power Cord 95-026-0255
7 Motor 95-030-0535
8 Motor Mount Assembly 95-030-0555
9 Motor Cooling Fan 95-030-0556
10 Fan Blade Assembly 95-003-0625
11 Rear Grille 95-032-0275
12 Front Leg 95-009-0600
13 Horizontal Adj. Knob 95-015-0150
14 Spacer 95-050-0200
15 Outer Ring Frame 95-024-0320
Item # Description Part Number
16 Vertical Adj. Knob 95-015-0150
17 Wall Mount 95-078-0200
18 Handle Pad 95-007-0100
19 Spacer 95-050-0200
20 Handle Arm 95-006-0300
21 Rear Leg 95-009-0610
22 Large Base Cap 95-024-0410
23 Large Base 95-024-0400
24 Foot Pad 95-023-0240
25 Wall Bracket - L 95-077-0100
26 Wall Bracket - R 95-077-0110
27 Small Base 95-024-0500
28 Small Base Cap 95-024-0500
29 Wheel 95-024-0510
30 Lower Mount 95-024-0325
Installation and Assembly - Floor
NEVER LEAVE A FAN
UNATTENDED WHILE
OPERATING OR WHILE
CONNECTED TO A POWER
SOURCE
4
www.TractorSupply.com For customer support, call 1-866-641-4540 HVF Air Circulator User’s Manual

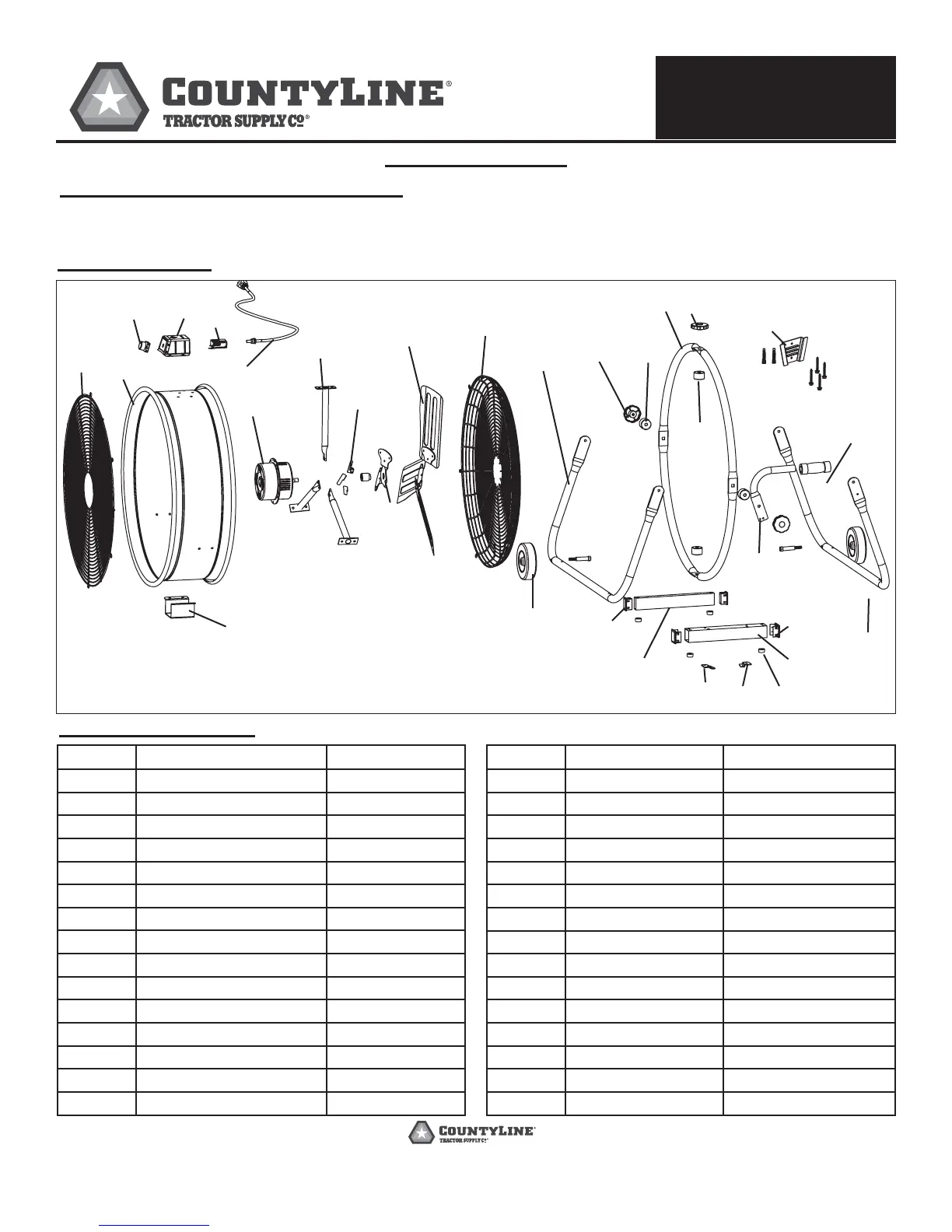

Exploded View
1
2
3
4
5
7
8
9
10
11
12
13
14
16
19
17
18
21
20
22
23
25
26
27
Figure 2: Exploded
View of CL-24O-DDF
28
24
29
30
15
6
24” BARREL FAN
