CountyLine CL-30P-DDF - 30-Inch Floor Fan Ceiling Mount; Ceiling Mount Components

30” FLOOR FAN -OPTIONAL CEILING MOUNT
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
Exploded View
24
26
25
26
Replacement Parts
Item# Description Part Number
14 Wheel Axle 95-008-0260
15 Wheel Frame 95-008-0500
16 Upper Swivel Housing 95-050-0141
17 Frame Lower Swivel Latch 95-050-0150
18 Latch Spring 95-060-0155
19 Lower Swivel Housing 95-050-0161
20 Rear Guard 95-032-0240
21 Rear Swivel Bracket 95-050-0170
22 Capacitor 95-004-0200
23 Power Switch 95-025-0500
24 Rear Motor Cover 95-048-0100
25 Power Cord 95-026-0150
26 Guard Latch Assembly 95-033-0220
Item# Description Part Number
1 Front Guard 95-032-0140
2 Front Swivel Bracket 95-050-0100
3 Fan Blade Assy 95-003-0505
4 Fan Holder 95-003-0150
5 Motor 95-030-0500
6 Frame Foot 95-023-0200
7 Cart Frame 95-009-0400
8 Swivel Cover 95-050-0106
9 Frame Swivel Bracket 95-050-0111
10 Frame Upper Swivel Latch 95-050-0120
11 Swivel Latch Pin 95-050-0131
12 Frame Cap 95-011-0300
13 Wheel 95-008-0160

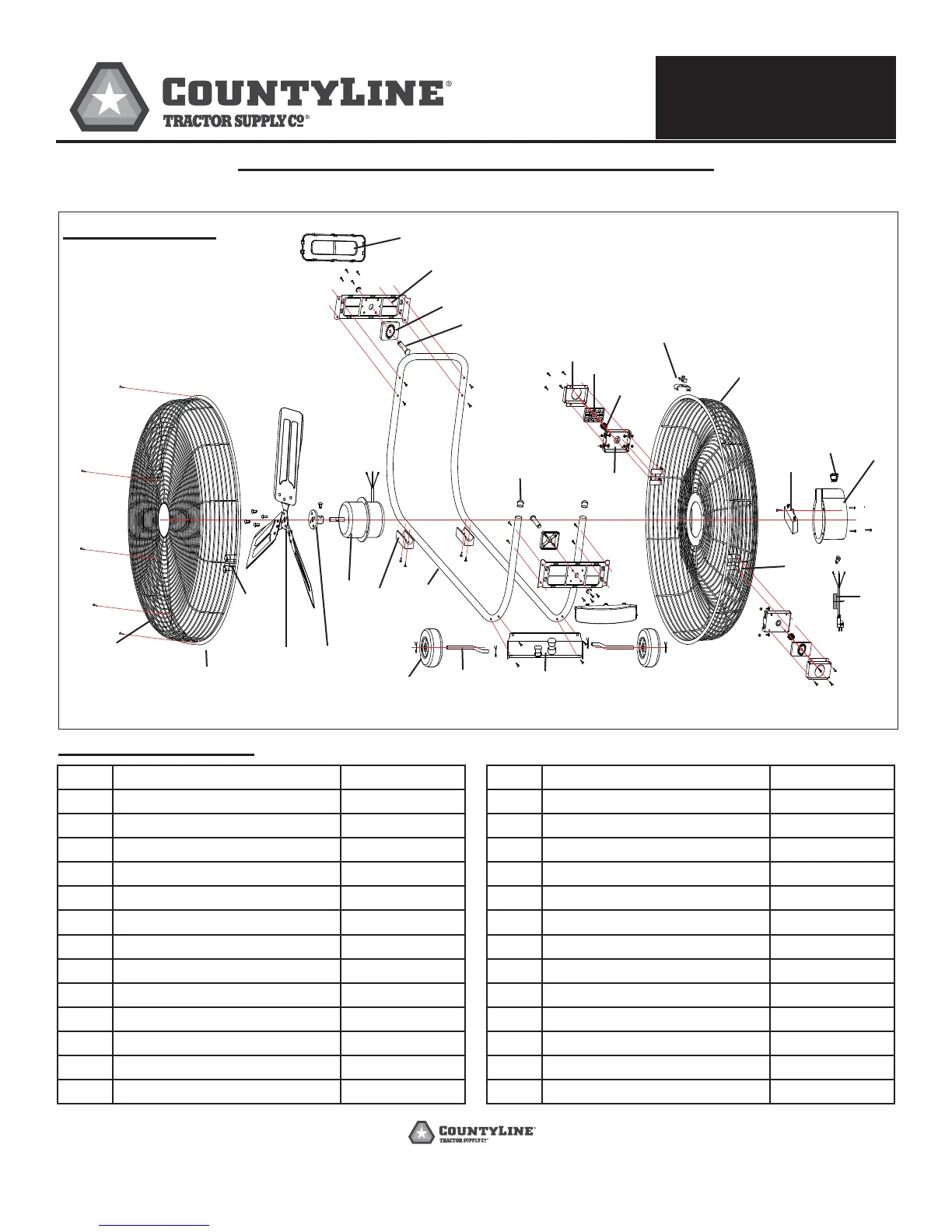

Figure 7: Exploded View of CL-30-DDF
