Courtyard TCS46GL - Care Instructions

To Previous Page

FIGURE C

FIGURE B

Step C:

Remove the tank from the tank support assembly

and through the tank fastener. See Figure C.

Note:

To replace the tank, repeat Step 8, Step 9, and

Step 10 in the assembly instructions.

FIGURE A

Step A:

Loosen the fuel supply hose from the igniter valve.

See Figure A.

tep B:

To remove the fuel supply hose from the tank,

rotate counterclockwise. See Figure B.

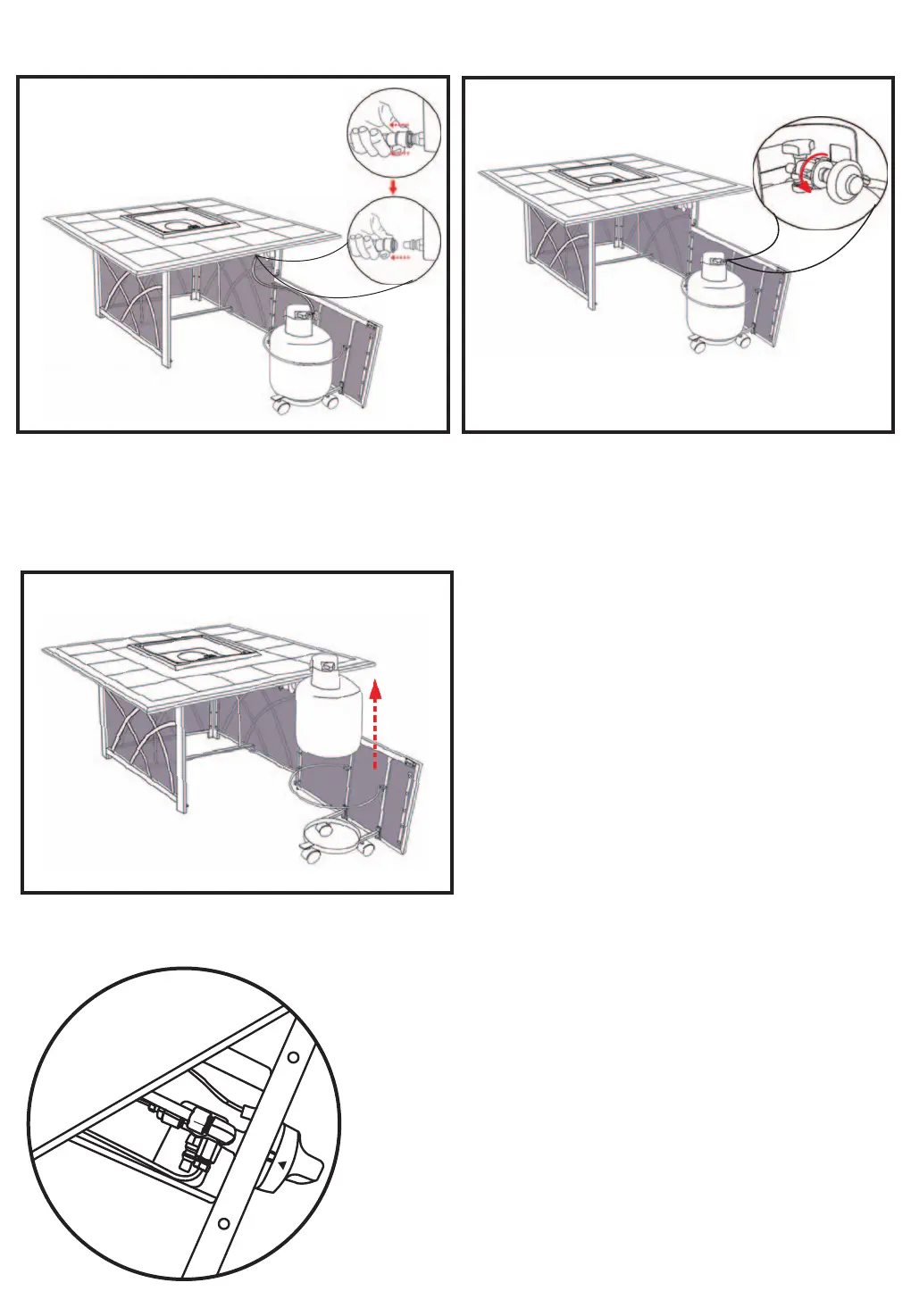

INSTRUCTIONS FOR REMOVING THE TANK

counterclockwise

Note:

You must make periodic checks to ensure that

all connections are secured.

CARE INSTRUCTIONS

Note:

Close the valve tightly before removing the tank.
