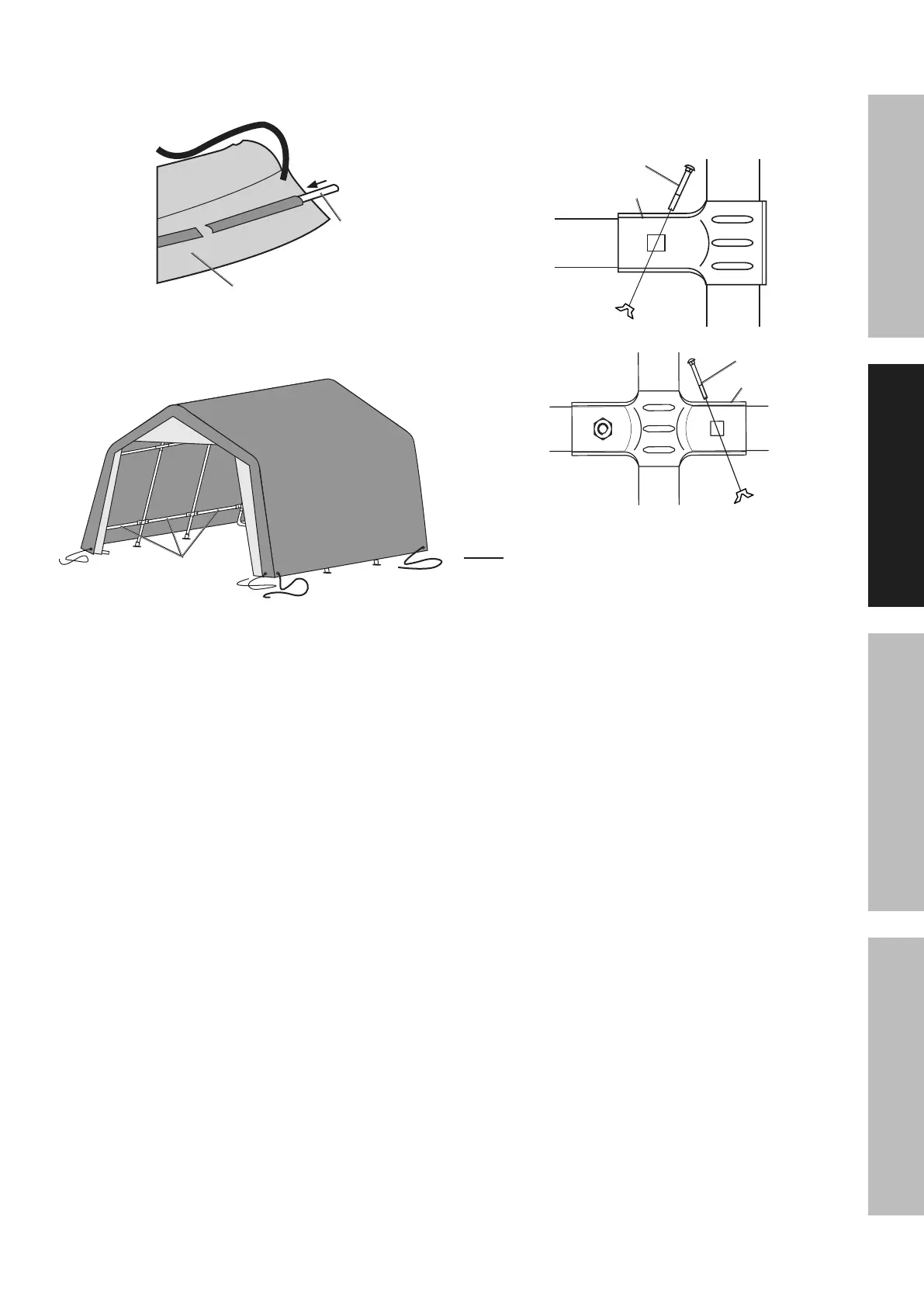

7. After installing roof cover, insert three Bottom
Rails (5) into the fabric tubes on each side
of the Roof Cover as shown in Figure T.
15
5
Figure T: Insert Bottom Rails
8. Make sure the Bottom Rails are level and
horizontal as shown in Figure U.
Bottom Rails (5)
Figure U: Bottom Rails in place.
9. Attach Bottom Rails to the Corner Studs (2)
using 3‑Way End Rail Clamps (9), Bolts
and Nuts (13), and to the Center Studs (1)
with 4‑Way Center Rail Clamps (10),
as shown in Figure V.
13
10
13
9
Figure V: 3- and 4-Way Rail Clamp Connections
Note: Only finger tighten the Nuts at this point.
10. Make sure that all the Bottom Rails are of the same
height from the ground, then tighten all Nuts.
11. Secure the four corners of Roof Cover to the
Corner Legs (6) using Ratchet Tie‑Downs (8); see
Securing Ratchet Tie‑Downs on page 10.
Page 13For technical questions, please call 1-888-866-5797.62860
