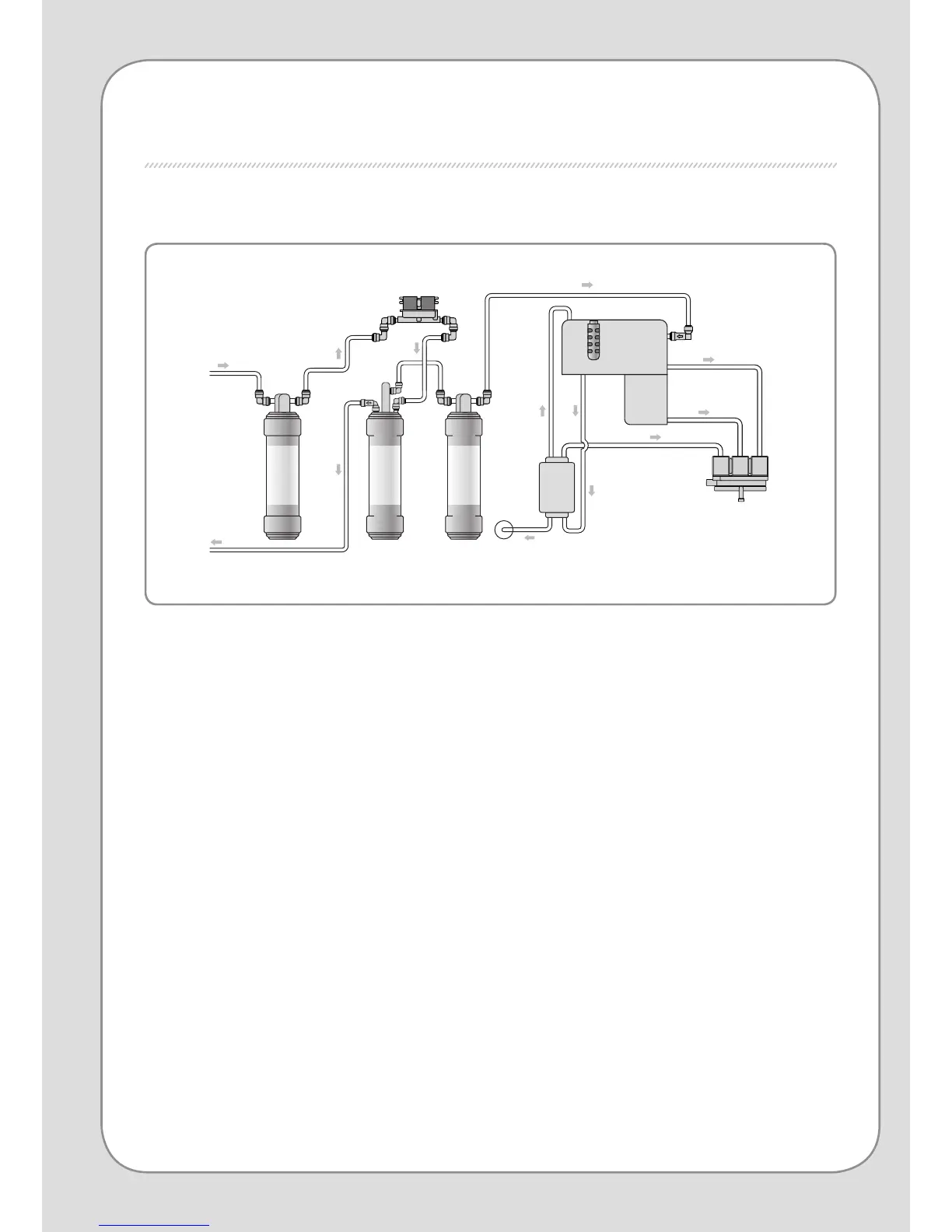

WATER FLOW DIAGRAM
CHP-06DL
Neo-sense Filter
Storage
tank
Antibacterial Filter*
Feed Water
Disposed Water
Disposed Water
Valve
Hot Water
Drain
3 WAY
Valve
FEED-NOS
Valve
Cool / Hot / Room
Water
Heating
tank
Cooling
tank
Check Valve
Inno-sense Filter
Membrane Filter(RO)
*
The Antibacterial lter contains silver, which is known to inhibit the propagation of microorganisms and to
maintain the integrity of the lter.
