INSTALLATION

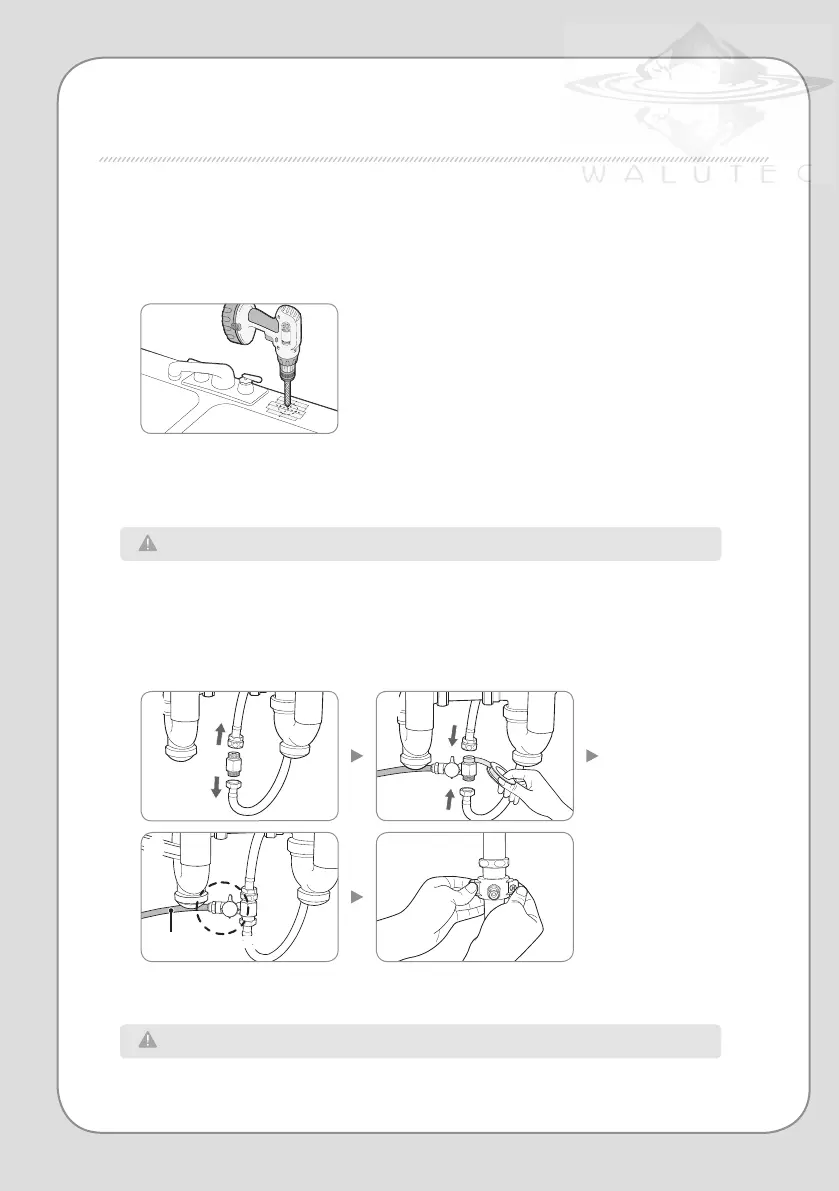

1. Drilling tubing hole
a) Place some masking tape over the area to be drilled to prevent scratches if drill bit slips.
b) Mark hole with center punch. Use a small drill bit for a first hole, then use a suitable drill bit
(Drill a Diameter about 1/2˝ (12.5 mm) hole).
a, b)
The water supply fitting must be connected to the cold water line.
Connect the blue tube from the water outlet of the product to the drain clamp.
2. Installing the water supply tting and drain clamp
a) First, turn off cold water supply line. Then, open the faucets to drain water from the cold
water pipe. Detach the water supply fitting from the water pipe.
b) Tape the water supply fitting with the teflon tape and connect to the cold water pipe.
c) Wrench the cold water pipe fitting then connect the 1/4˝ tubing (orange) to the water
supply fitting.
d) Make a hole on the drain pipe and install the drain clamp on the hole.
Connect the blue tube from the water outlet of the product to drain clamp.
3. Make a hole on the drain pipe and install the drain clamp on the hole.
a) b)
c)
TUBING (ORANGE)
d)
To Next Page
