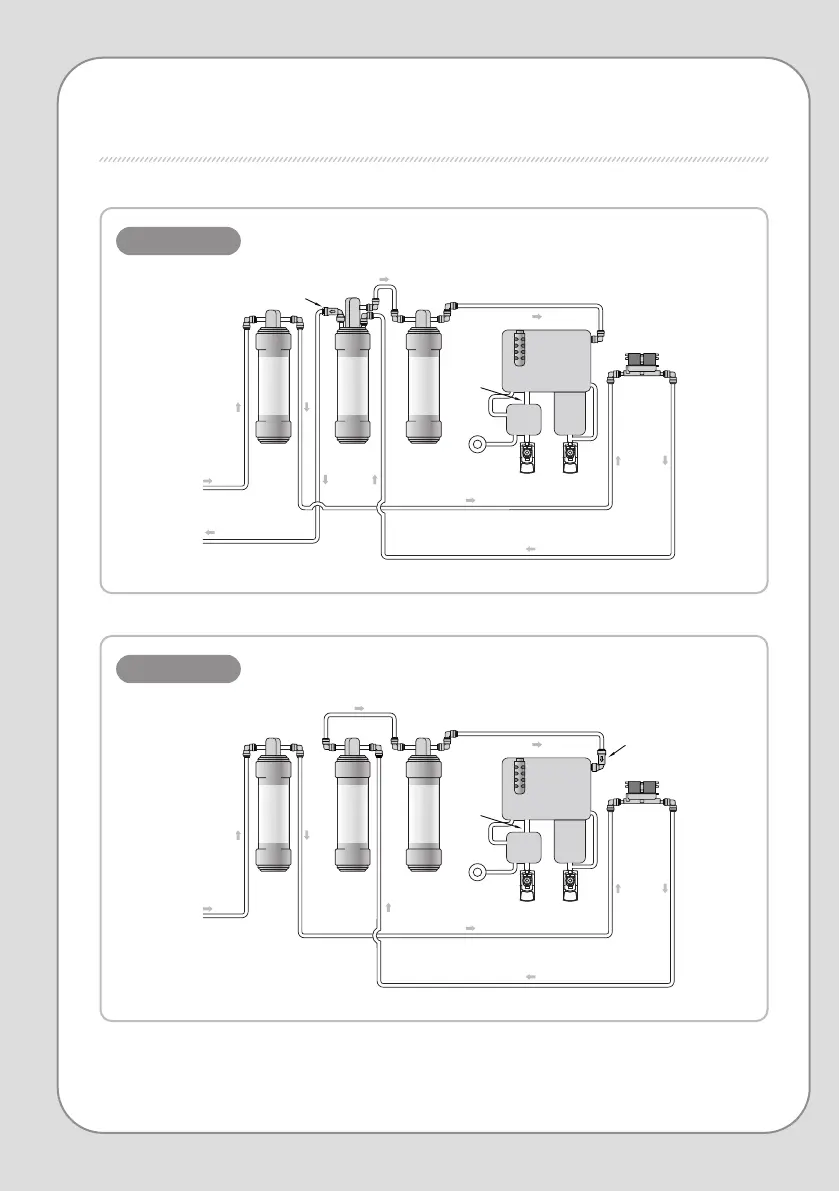

CHP-260L
Feed Water
Disposed Water
Disposed Water
Valve (General)
Hot
Water
Cool/Room
Water
Storage
tank
Heating
tank
Cooling
tank
Hot Water
Drain
Over
Heating
FEED-NOS
VALVE
Neo-sense Filter
Antibacterial Filter
Membrane Filter(RO)
Plus Inno-sense Filter
CHP-260N
Feed Water
Hot
Water
Cool/Room
Water
Storage
tank
Heating
tank
Cooling
tank
Hot Water
Drain
Over
Heating
FEED-NOS
VALVE
Neo-sense Filter
Antibacterial Filter
Nanotrap Filter
Plus Inno-sense
Filter (D)
Constant
Flow Fitting
CHP-260L
CHP-260N
WATER FLOW DIAGRAM
