COX 16.5HP - Electrical Schematic: B&S Engine

11 June 2015 Page 33 Rev6 05/04/13
Owners Manual for Lawn Boss Models A14011M A14111M

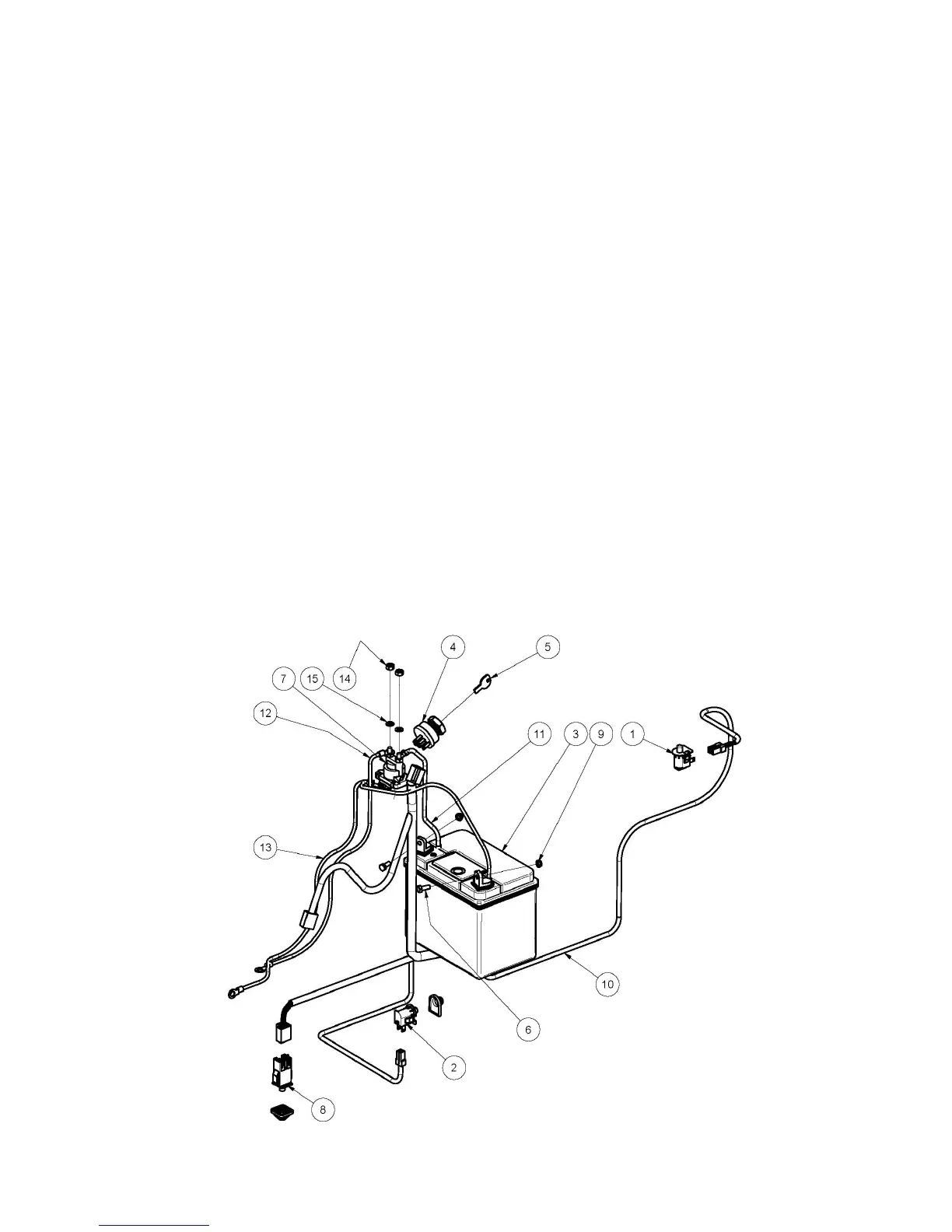

Electrical Components Schematic 16.5HP & 19.5HP B&S Only
ITEM PART NUMBER DESCRIPTION QTY
Engine, B&S 1
1 AM16512F Switch, Seat 1
1.1 SP1PNCSM Switch, Plunger 1
2 SKIT132 Switch, Plunger , Inc Cover 1
3 Battery, Automotive, 12V, CMFU1, 9PL, 240CCA 1
4 13125 Switch, Key 1
5 AM015 Pair, Key, Ignition 1
6 SH0616M Screw 2
7 AM159 Solenoid, Starter 1
NM6NT Nut 2
SH0620M Screw 2
8 SKIT133 Switch, Plunger, Inc Cover 1
9 NHM6 Nut 2
10 A143026 Harness, Wiring, Main 1
11 89082 Lead, Battery, Red, L= 295 1
12 AM265 Lead, Battery, Red, L= 490 1
13 15235 Lead, Battery, Black, 3term 1
14 N04C Nut 2
15 W040818 Washer 2
16 A143112 Harness, Wiring, Engine, B&S 1
17 Fuse, Glass, 3ag, 15 Amp 1
18 AM211 Hour Meter, Optional
