COX 16.5HP - Electrical Schematic: 16 HP Honda Engine

11 June 2015 Page 37 Rev6 05/04/13
Owners Manual for Lawn Boss Models A14011M A14111M

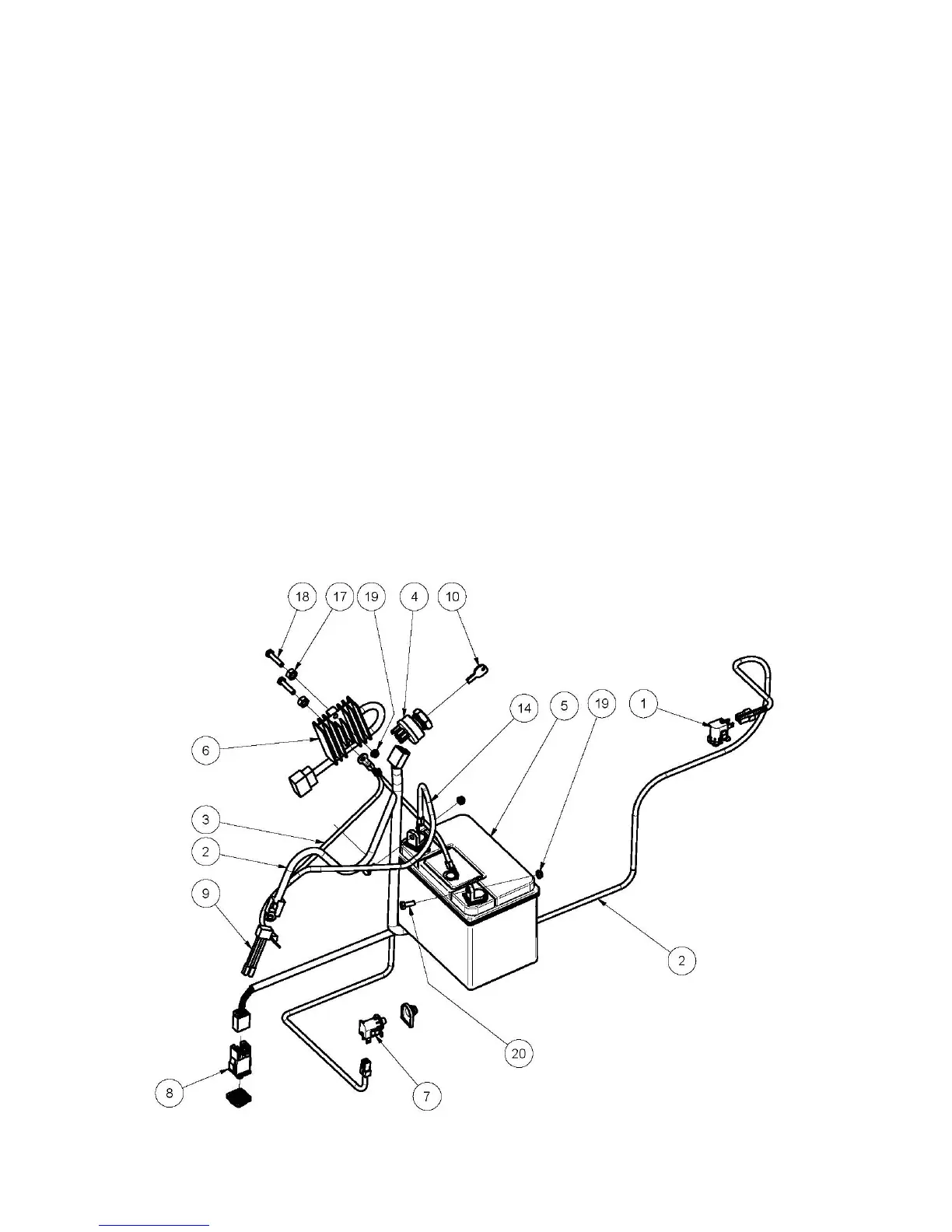

Electrical Components Schematic 16HP HONDA Only
ITEM PART NUMBER DESCRIPTION QTY
Engine, 16.0hp, V2cyl, Elec, Hon, GXV530
1 AM16512F Switch, Seat 1
1.1 SP1PNCSM Switch, Plunger 1
2 A143026 Harness, Wiring, Main 1
3 13369 Lead, Battery, Black, 3term 1
4 13125 Switch, Key 1
5 Battery, Automotive, 12V, CMFU1, 9PL, 240CCA 1
6 Regulator/Rectifier, Honda 1
7 SKIT132 Switch, Plunger, Inc Cover 1
8 SKIT133 Switch, Plunger, Inc Cover 1
9 A143113 Harness, Wiring, Engine, Hon, 16.0 Hp 1
10 AM015 Pair, Key, Ignition 1
14 84132 Lead, Battery, Red 1
16 Fuse, Glass, 3 Ag, 15 Amp 1
17 NHM8 Nut 2
18 B0635M Bolt 2
19 NHM6 Nut 2
NM6NT Nut 2
20 SH0616M Screw 2
21 AM211 Hour Meter, Optional
