WARNING!
All electrical hookups must be performed by a
licensed electrician!
Power Input
All Coyote Spas are tested for the following:
240 VAC, 60 Hz, 50 A
Connect the power input wires to the terminal block
labeled “AC-Input”. Make sure to respect the
alignment and that the screws are properly tightened.

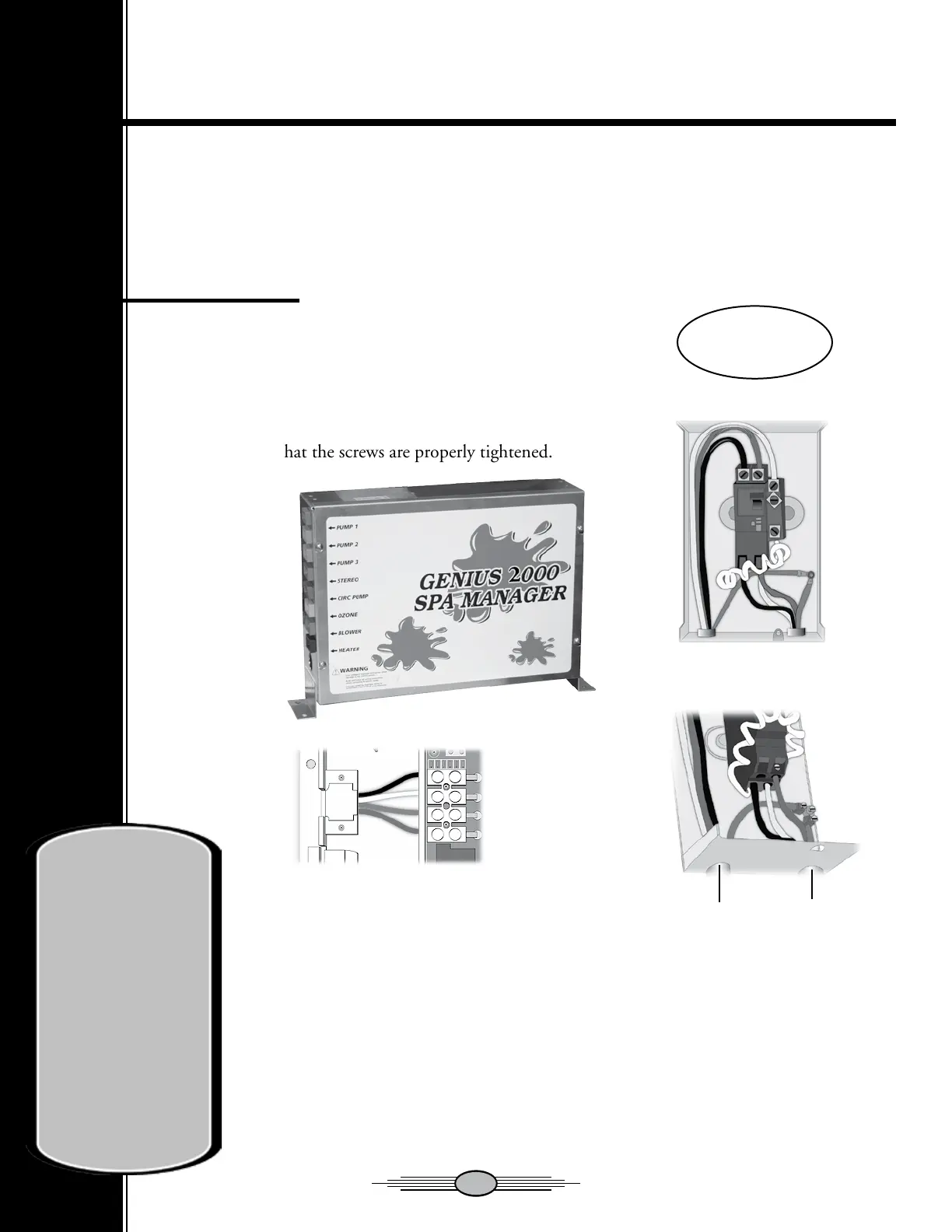

Equipment Compartment and Wiring Diagram
10
10
CAUTION!
Do not turn on power
to the spa until the
spa is filled to the
required level.
Running the spa
pump without water
could cause
immediate damage
and invalidate your
warranty!
IMPORTANT
CONNECTIONS:
Neutral of the GFCI must be
connected to the neutral bus.
Neutral from the spa must
be connected to the breaker.
Sub Panel
Wiring Diagram
Example
From Electrical
Box
To Spa
Load 1
Neutral
Ground
Load 2
To Next Page
