USER MANUAL
10

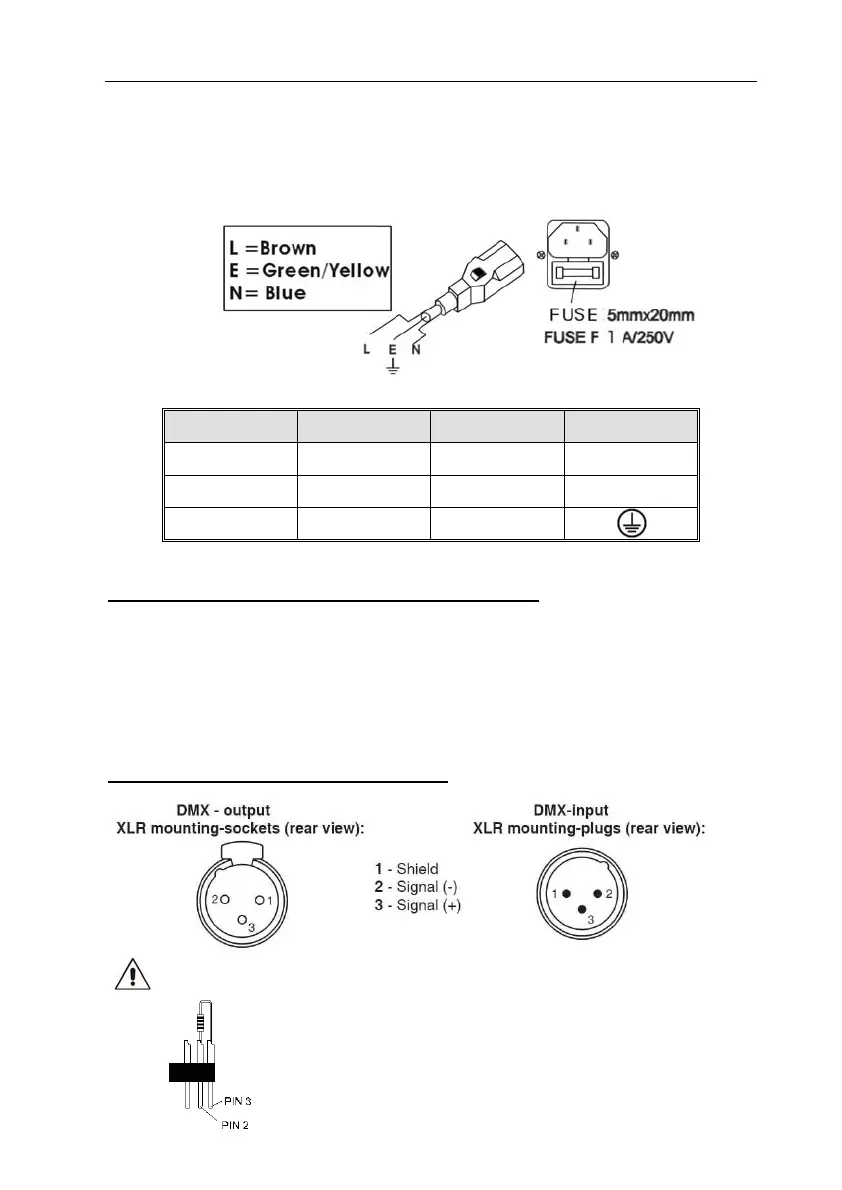

The unit is supplied with a power plug appropriate to its voltage and destination.
Should any other connections be required they must be carried out with the
following configuration.
DMX-512 connection between fixtures
The fixture is equipped with 3-pin XLR sockets for DMX input and output. The
sockets are wired in parallel. Only use a shielded twisted-pair cable designed for
3-pin XLR-plugs and connectors in order to connect the controller with the fixture
or one fixture with another.
Occupation of the XLR-connection
Caution: At the laser fixture, the DMX-cable has to terminated with a
terminator. Solder a 120 Ohm resistor between Signal (-)
and Signal (+) into a 3-pin XLR-plug and plug and plug it in
the DMX-output of the last fixture.
Cable(EU) Cable(US) Pin International
Brown Black Live L
Light blue White Neutral N
Yellow/Green Green Earth
