CR-Tec FS-4 - DMX Protocol

USER MANUAL
19

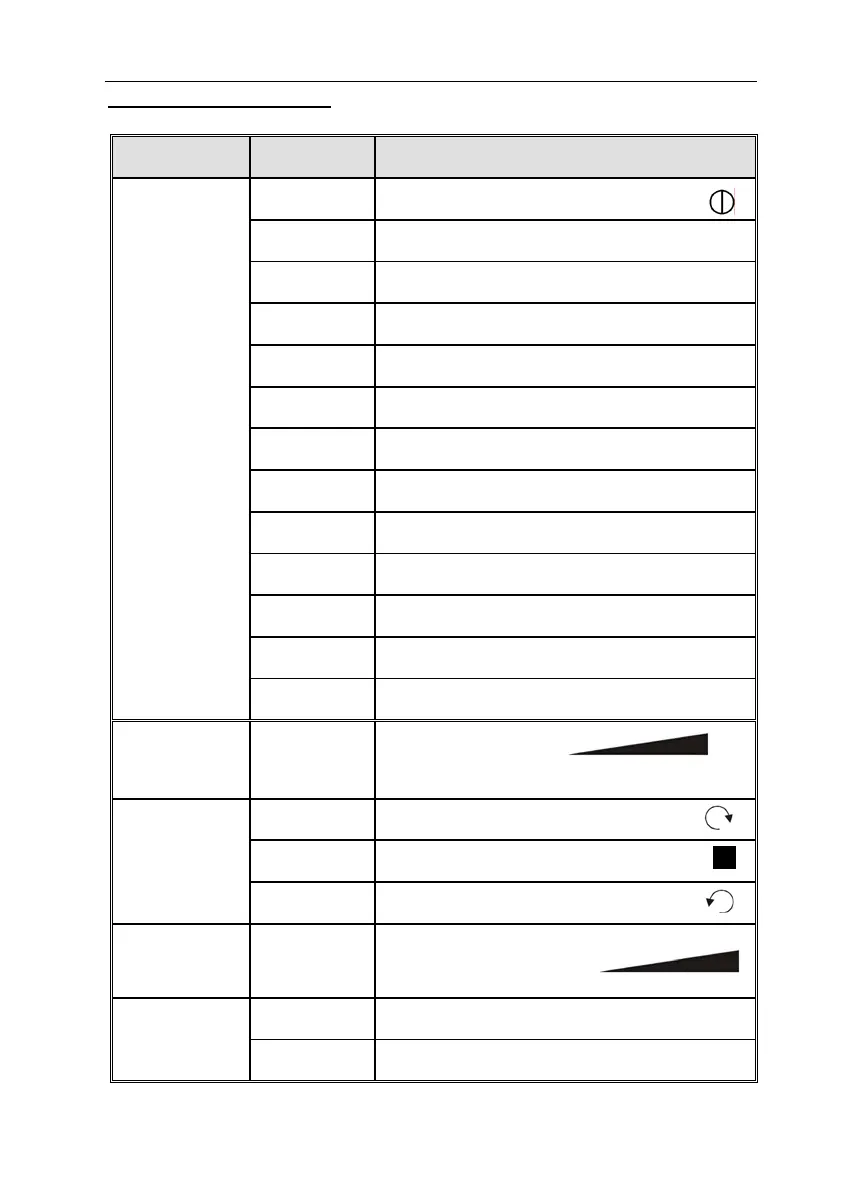

DMX PROTOCOL
CANNEL
DMX VALUE DESCRIPTION
1
MODE
000-019
Laser Block Out
020-039 ARA, Auto Running Random Effect
040-059 SRA, Sound Activated Random Effect
060-079 SLP, Slow Moving Patterns Effect
080-099 FAP, Fast Moving Patterns Effect
100-119 SOP, Sound Activated Moving Patterns Effect
120-139 SLL, Slow Moving Lines Effect
140-159 FAL, Fast Moving Lines Effect
160-179 SOL, Sound Activated Moving Lines Effect
080-199 SLD, Slow Moving Dots Effect
200-219 FAD, Fast Moving Dots Effect
220-239 SOD, Sound Activated Moving Dots Effect
251-255 DMX MODE (Other channels actived)
2
ROT SPEED
000-255
M1 Rotating Speed
M1 Stands for Motor 1
3
ROT
DIRECTION
000-075
M1 Clockwise Rotation
076-150
M1 Stop
151-255
M1Anti-clockwise Rotation
4
LIBRATE
RANGE
000-255
M1 Librating Range
5
LIBRATE
MODE
000-056 M1 LIBRATING Mode 1
057-112 M1 LIBRATING Mode 2
