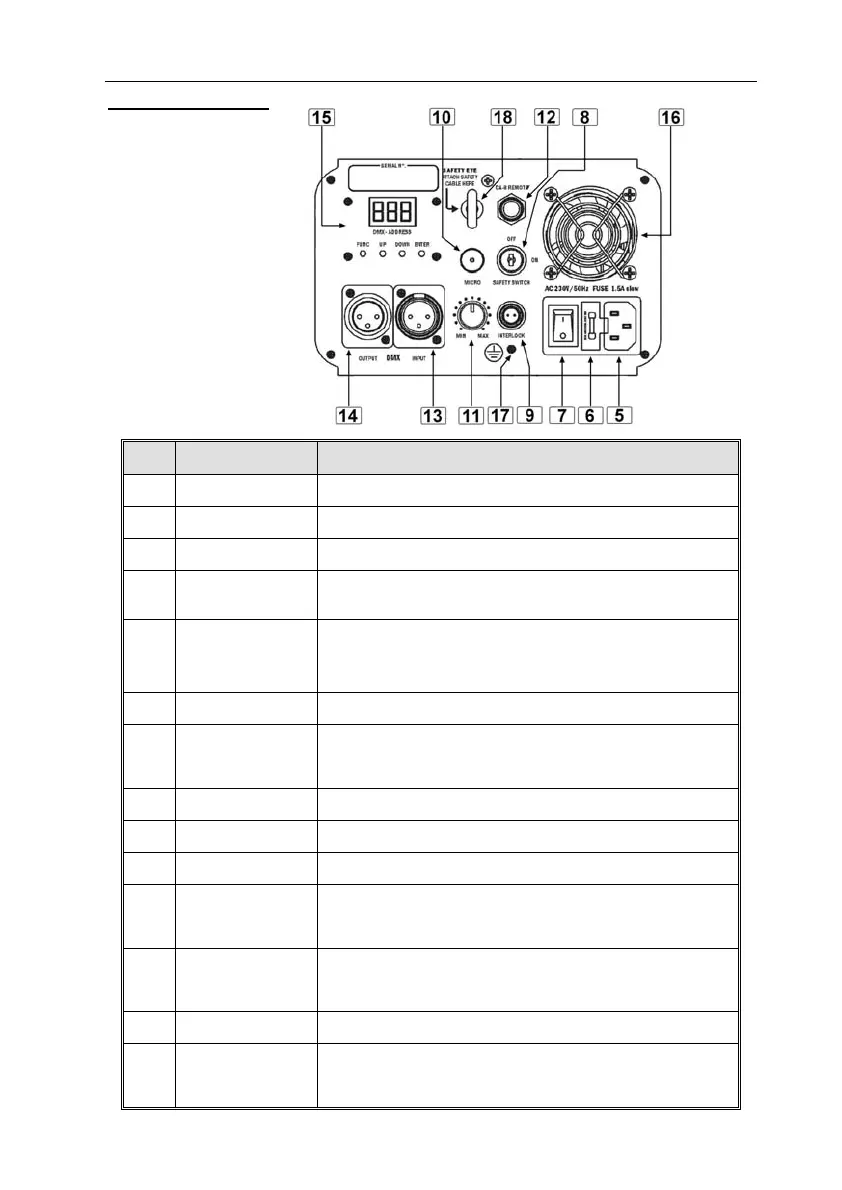

Rear Panel
NO. NAME DESCRIPTION
5
Main Power Input With IEC socket
6
Fuse Integrated fuse holder.
7
Power Switch Switch ON and OFF the fixture
8
Key Switch
To turn the laser effect (laser diode) ON/OFF. Be
sure that only authorized operator hold the key
9
Interlock
Used to connect the optional emergency stopper.
When you push this switch the laser effect will be
blank-out immediately.
10
Microphone To detect the music/sound signal
11
Mic Sensitivity
Knob
Turn the knob (potentiometer) until the laser works
in sync with the music.
12
Controller Easy controller connecting port.
13
DMX Input 3 pins male XLR connector
14
DMX Output 3 pins female XLR connector
15
Control panel
To control the fixture with digital LED display, check
more information on CONTROL & FUNCTION
16
Cooling Fan
Used to cool the components inside the enclosure.
Never cover this fan outlet!
17
GND Fixture power ground point
18
Safety Eye
Used to attached a safety cable when the fixture is
rigged. Check more details in RIGGING
