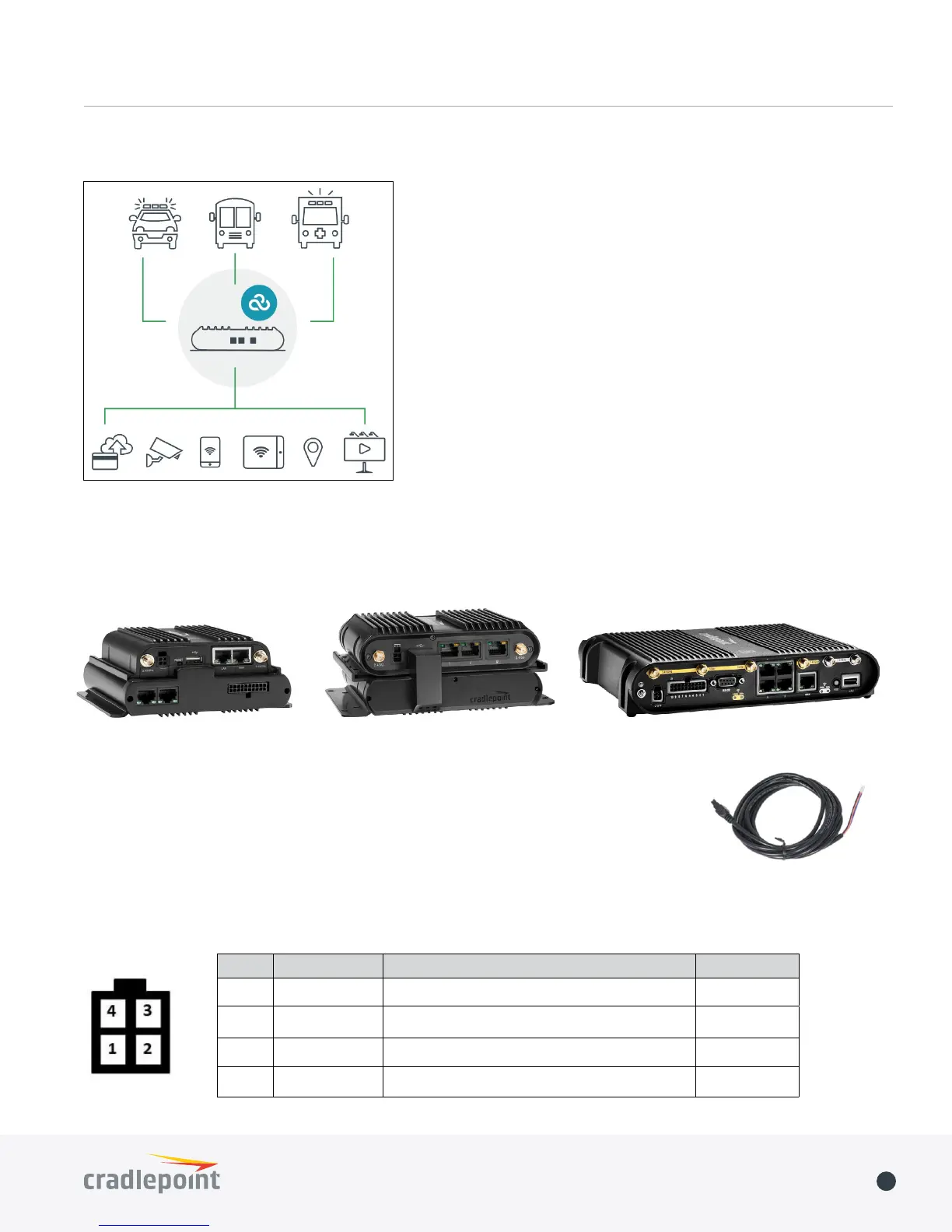

Vehicle Installation Guide / COR IBR9x0, IBR11x0, IBR1700
Introduction
The Cradlepoint COR Series mobile routers are compact, ruggedized,
3G/4G/LTE networking solutions designed for mission-critical
connectivity in the most challenging environments.
Ideal for in-vehicle networks including police cars, ambulances, and
mass transit, this cloud-managed solution provides organizations
the ability to scale deployments quickly and manage their vehicle
networks easily in real-time.
With an extensive list of safety and hardening certifications,
the COR Series mobile routers are engineered to protect against
extreme temperatures, humidity, shocks, vibrations, dust, water
splash, reverse polarity, and transient voltage.
You can also add dual-modem capability to your IBR900/950 or
IBR1100/1150 with the optional COR Extensibility Dock or Dual-
Modem Dock. The IBR1700 has an additional built-in MC400
modem slot and therefore does not require a dock for dual-modem
support. For more information, visit cradlepoint.com.
Power & GPIO
The Cradlepoint COR Series mobile routers include a two meter, 22 AWG direct wire
power and GPIO cable (includes ESD-protected general input and output pins):
This diagram shows the connector pinout. This is the view into the router (or the rear view of the cable connector):
Pin Definition Details Wire Color
1 Ground - Black
2 Power 9–36 V DC Red
3 Input 3 V input high threshold (36 V tolerant) Orange
4 Output capable of sinking 250 mA Blue
