6. Wiring.
WARNING: Turn off circuit breakers to
current fixture from breaker panel and
be sure switch is turned to the OFF
position.
CAUTION: Be sure outlet box is properly
grounded and that a ground wire (GREEN
or Bare) is present.
Make sure all electrical connections
comply with Local Codes or Ordinances
and the National Electrical Code. If you are
unfamiliar with electrical wiring or if the
house/building wires are different colors
than those referred to in the instructions
below, please use a qualified electrician.
Connect BLACK and BLUE wires from
fan to BLACK wire from ceiling with wire
connector provided.
Connect WHITE wire from fan to WHITE
wire from ceiling with wire connector
provided.
Connect all GROUND (GREEN) wires
together from fan to BARE/GREEN wire
from ceiling with wire connector
provided.
If you intend to control the fan light with
a separate light switch, connect BLUE
wire from fan to the BLACK (or RED)
supply from the independent switch.
*Wrap each wire connector separately
with electrical tape as an extra safety
measure.
*

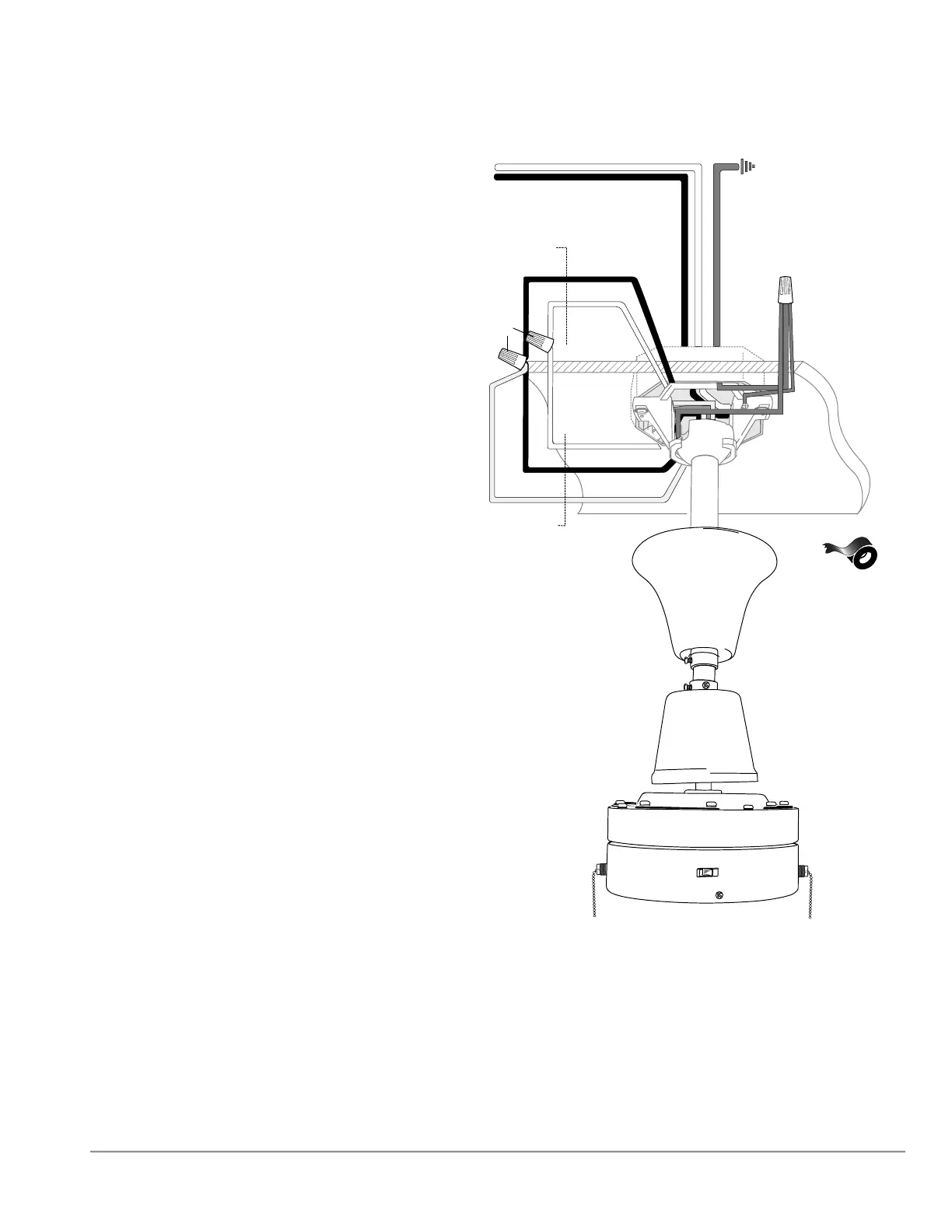

black
black
from fan
from ceiling
white
white
blue
black supply wire
ground
(green or bare)
white supply wire
ground
(green or bare)
wire
connectors
wire
connector
