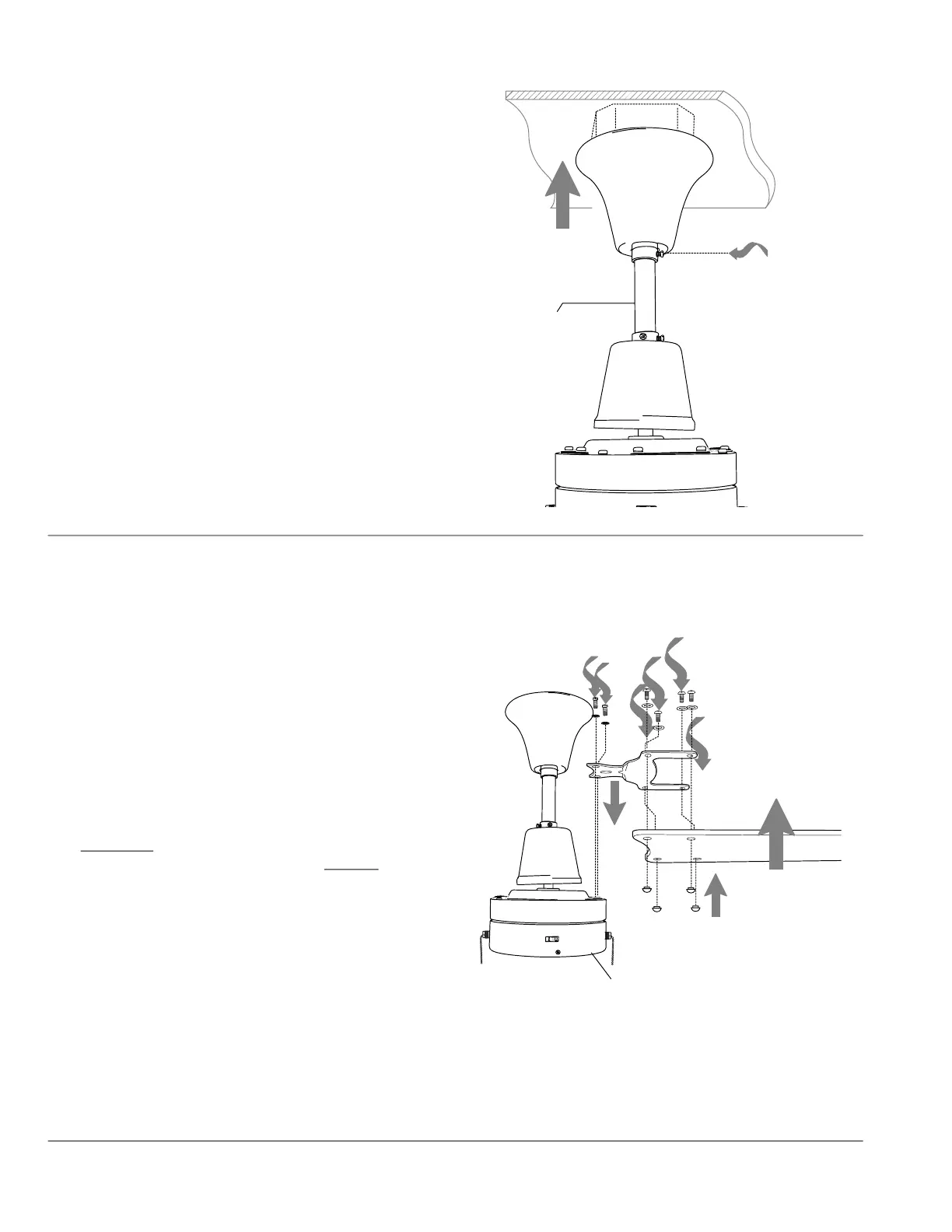

8. Blade Assembly.
7. Canopy Assembly.
page 6
blade
blade arm
canopy set screw
canopy
motor housing
WARNING: To reduce the risk of serious bodily
injury, DO NOT use power tools to assemble the
blades. If screws are overtightened, blades may
crack and break.
Time Saver: Washers for blade screws can be set
on each blade screw prior to installing blades.
Locate 16 blade attachment screws and washers
and 16 decorative nuts in hardware packs. Align
holes in blade with holes in blade arm. (Note label
on blade arm indicating THIS SIDE UP.) Push
decorative nuts through holes in blade from
underside of blade and insert blade attachment
screws (along with washers) from topside. Tighten
all 4 screws securely. Repeat procedure with
remaining blades.
Locate one of the rubber cushions on top of
motor housing. Remove the 2 larger screws (do
not remove center screw) and washers but leave
rubber cushion intact.
Lower blade arm over rubber cushion, attaching
blade arm with screws and washers that were
previously removed. Tighten screws securely.
Repeat with the remaining blades.
NOTE: Tighten blade arm screws twice a year.
decorative nuts
Raise canopy to hanging bracket until
canopy touches the ceiling. Tighten the
canopy set screw to secure canopy.
Carefully remove protective paper from
downrod.
downrod
larger screws
and washers
blade attachment
screws and washers
