6. Wiring.
WARNING: Turn off circuit breakers to current
fixture from breaker panel and be sure switch is
turned to the OFF position.
CAUTION: Be sure outlet box is properly grounded
and that a ground wire (GREEN or Bare) is present.
Make sure all electrical connections comply with
Local Codes or Ordinances and the National
Electrical Code. If you are unfamiliar with electrical
wiring or if the house/building wires are different
colors than those referred to below, please use a
qualified electrician.
WARNING: If using this fan in a WET location, this
fan must be connected to a supply circuit that is
protected by a Ground Fault Circuit Interrupter
(GFCI) to reduce the risk of personal injury,
electrical shock or death.
When downrod is secured in place on the
hanging bracket, electrical wiring can be made as
follows:
Connect BLACK and BLUE wire from fan to
BLACK wire from ceiling with wire connector
provided.
Connect WHITE wire from fan to WHITE wire
from ceiling with wire connector provided.
Connect all GROUND (GREEN) wires together
from fan to BARE/GREEN wire from ceiling with
wire connector provided.
If you intend to control the fan light with a
separate light switch, connect BLUE wire from
fan to the BLACK (or RED) supply from the
independent switch.
* Wrap each wire connector separately with
electrical tape as an extra safety measure.
This fan is remote control adaptable (remote
control sold separately).

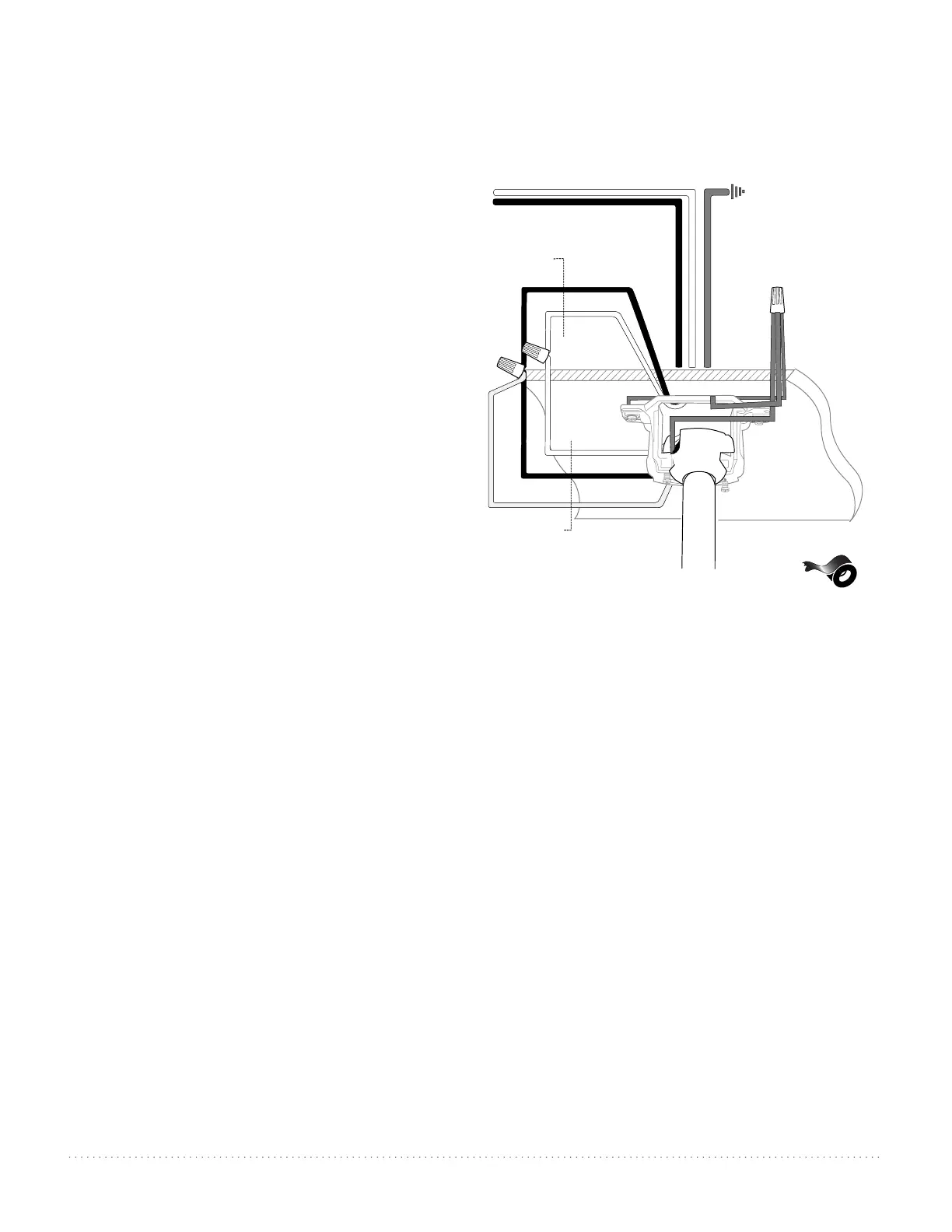

white supply wire
*
black
black
white
white
blue
black supply wire
from ceiling
from fan
ground (green
or bare)
ground
(green or bare)
