Craftsman 10107 - 3/8 in. Corded Drill User Manual

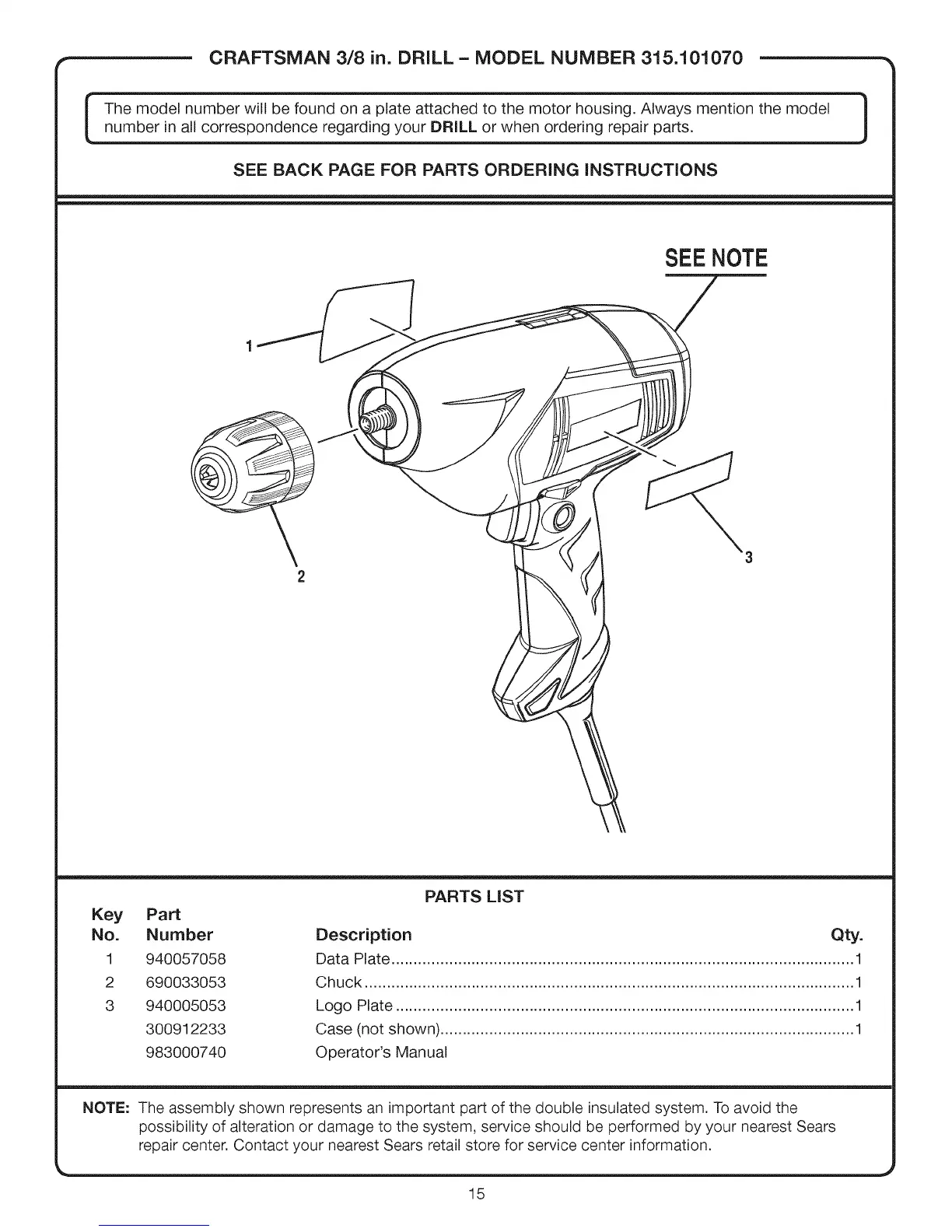

F CRAFTSMAN 3/8 in. DRILL - MODEL NUMBER 315.101070
I he model number will be found on a plate attached to the motor housing. Always mention the model
number in all correspondence regarding your DRILL or when ordering repair parts.
SEE BACK PAGE FOR PARTS ORDERING INSTRUCTIONS
SEENOTE
Key PaN
No. Number
1 940057058
2 690033053
3 940005053
300912233
983000740
PARTS LIST
Description Qty.
Data Plate ........................................................................................................ 1
Chuck .............................................................................................................. 1
Logo Plate ....................................................................................................... 1
Case (not shown) ............................................................................................. 1
Operator's Manual
NOTE: The assembly shown represents an important part of the double insulated system. To avoid the
possibility of alteration or damage to the system, service should be performed by your nearest Sears
repair center. Contact your nearest Sears retail store for service center information.
15

Craftsman 10107 - 3/8 in. Corded Drill Specifications

General

Chuck Size	3/8 in.
Power Source	Corded
Weight	3.5 lbs
Voltage	120V
No Load Speed	0-2500 RPM
Product Weight	3.5 lbs
