Sears Brands Management Corporation, Hoffman Estates, IL 60179, U.S.A.
Visit our website: www.craftsman.com
CAUTION: Before using this product,
read this manual and follow all safety
rules and operating instructions.

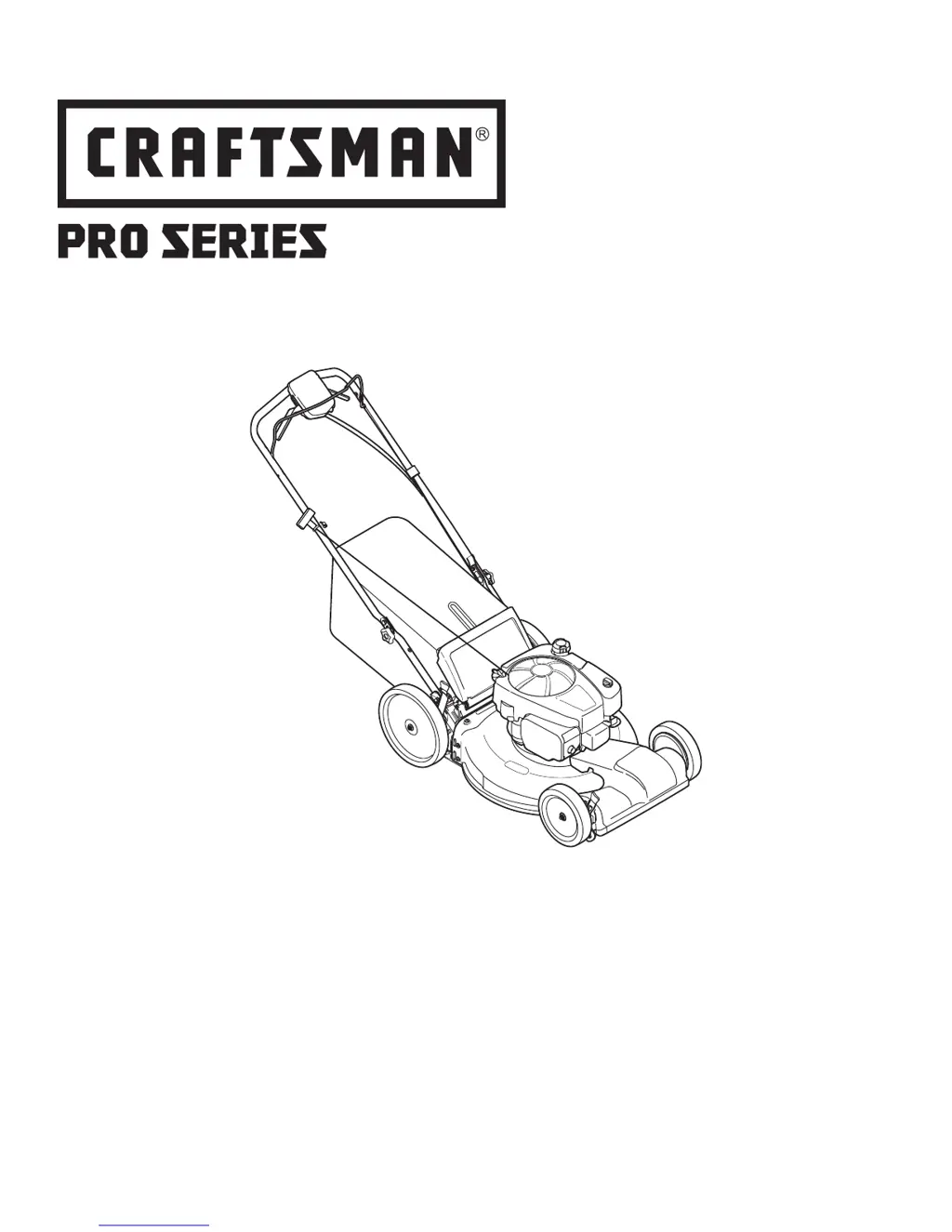

Operator’s Manual
• SAFETY
• UNPACKING P. 8
• ASSEMBLY
• OPERATION
• MAINTENANCE
• ESPAÑOL
21” LAWN MOWER
Model No. 247.397600
Form No. 769-11237
(January 15, 2016)

Table of Contents

Questions and Answers

  • W
    William BrayAug 13, 2025
    Why Craftsman 247.397600 engine fails to start?
    • A
      andrew16Aug 13, 2025
      Your Craftsman Lawn Mower might fail to start due to several reasons: * The blade control might be disengaged, so engage the blade control. * The spark plug boot might be disconnected, so connect the wire to the spark boot. * The fuel tank might be empty or contain stale fuel, so fill the tank with clean, fresh gasoline. * The engine might not be primed (if equipped with a primer), so prime the engine as instructed in the Operation section. * The spark plug might be faulty, so clean, adjust the gap, or replace it. * The engine might be flooded, so wait a few minutes to restart. * The fuel line might be blocked, so contact your Sears Parts & Repair Center to have the fuel line cleaned.
  • F
    fsmithAug 16, 2025
    What causes uneven cut with Craftsman Lawn Mower?
    • E
      Erica ChenAug 16, 2025
      An uneven cut with your Craftsman Lawn Mower could be due to: * Incorrect wheel positioning: Adjust the cutting height lever on the right front and right rear wheels to the same position. * A dull blade: Sharpen or replace the blade.
  • V
    vickie71Aug 20, 2025
    What to do if Craftsman Lawn Mower engine runs erratic?
    • W
      William FlemingAug 20, 2025
      If your Craftsman Lawn Mower engine runs erratically, consider these potential causes and solutions: * A loose spark plug boot: Connect and tighten the spark plug boot. * Stale fuel: Replace the old fuel with clean, fresh gasoline. * A plugged vent in the gas cap: Clear the vent. * Water or dirt in the fuel system: Run the engine until it stops due to lack of fuel, then refill with fresh fuel. * A dirty air cleaner: Refer to the Air Cleaner Maintenance section in the Engine Manual. * A blocked fuel line: Contact your Sears Parts & Repair Center to have the fuel line cleaned.
  • D
    Danny CunninghamAug 25, 2025
    What to do if Craftsman 247.397600 will not self propel?
    • L
      lindsayfarrellAug 25, 2025
      If your Craftsman Lawn Mower won't self-propel, here are some things to check: 1. Belt Installation: Make sure the belt is properly installed on the pulleys and moves freely. 2. Debris: Stop the engine, disconnect the spark plug boot, and clean out any debris that may be clogging the drive operation. 3. Belt Condition: Inspect the belt for damage or wear. If necessary, contact your Sears Parts & Repair Center to have the belt replaced. 4. Drive Control: Adjust the drive control. Refer to page 11 in the Assembly & Set-up section.
  • M
    Mr. Robert KaufmanAug 27, 2025
    Why Craftsman Lawn Mower idles poorly?
    • J
      jeffrey92Aug 28, 2025
      Craftsman Lawn Mower may idle poorly because of: * A spark plug that is fouled, faulty, or has a gap that is too wide: Reset the gap or replace the spark plug. * A dirty air cleaner: Refer to Air Cleaner Maintenance in the Engine Manual.
  • A
    Anthony ObrienAug 31, 2025
    Why Craftsman Lawn Mower engine overheats?
    • J
      johnwrightAug 31, 2025
      The Craftsman Lawn Mower engine may overheat due to: * Low engine oil level: Fill the crankcase with the proper oil. * Restricted airflow: Clean the area around and on top of the engine.
  • M
    muellermarySep 4, 2025
    What causes excessive vibration in Craftsman 247.397600 Lawn Mower?
    • J
      joshuathompsonSep 4, 2025
      Excessive vibration in your Craftsman Lawn Mower can be attributed to: * A loose or unbalanced cutting blade: Tighten the blade and adapter, and balance the blade. * A bent cutting blade: Replace the blade.
  • C
    Cameron HillSep 8, 2025
    Why is there high pullback effort on Craftsman 247.397600 Lawn Mower?
    • Y
      yhannaSep 8, 2025
      High pullback effort on your Craftsman Lawn Mower is caused by pulling the mower backwards before the transmission disengages. Allow the unit to roll forward slightly without the drive lever(s) engaged before pulling backwards.

Summary

Warranty Statement

Product Specifications

Details about engine oil, fuel, and engine type.

Model Number Recording

Section to record the mower's model and serial numbers.

Safety Instructions

General Operation Safety

Guidelines for safe operation, including PPE and environmental checks.

Safety Instructions

Slope Operation Safety

Precautions for mowing on slopes, including angle limits and footing.

Children Safety

Rules for children's proximity and operation of the mower.

Gasoline Handling Safety

Safe practices for refueling and handling gasoline to prevent fires.

Safety Instructions

Engine Modification & Emissions

Warnings against engine modification and emissions compliance information.

Spark Arrestor Warning

Information on the necessity of a spark arrestor for certain land types.

Safety Instructions

Safety Symbols Explained

Visual guide and explanation of safety symbols used on the mower and manual.

Slope Gauge

Assembly

Unpacking and Initial Setup

Steps for removing mower from packaging and checking for loose parts.

Attaching the Handle

Instructions to assemble and secure the mower's handle.

Assembly

Attaching the Grass Catcher

Guide to assemble and attach the grass catcher bag.

Adjustments

Cutting Height Adjustment

How to adjust the mower's cutting height for different grass.

Handle Pitch Adjustment

How to adjust the handle's angle for operator comfort.

Drive Control Adjustment

How to adjust the drive control for proper self-propulsion.

Operation

Blade and Drive Controls

How to operate blade control and drive controls for mower function.

Cutting Height & Deck Systems

Adjusting cutting height, using grass catcher, deck wash, and trail shield.

Starting the Engine

Using the recoil starter to safely start the mower's engine.

Operation

Gas and Oil Fill-Up Procedures

Steps for filling engine with correct gasoline and oil types and quantities.

Refueling Safety Guidelines

Safety precautions to follow when refueling the lawn mower.

Operation

Engine Start and Stop

Detailed instructions on how to start and stop the engine safely.

Mowing and Grass Collection

How to operate the mower for cutting grass and using the grass catcher.

Service and Maintenance

Maintenance Schedule

A schedule of recommended maintenance tasks and their intervals.

Service and Maintenance

Engine Maintenance

Procedures for cleaning and maintaining the engine components.

Deck Wash Maintenance

Instructions for using the deck wash system to clean the mower deck.

Service and Maintenance

Blade Care and Service

Guidelines for inspecting, servicing, and installing the cutting blade.

Belt Care

Note on drive belt maintenance and seeking professional service.

Off-Season Storage

Preparing Engine for Storage

Steps to prepare the engine for long-term storage to prevent fuel issues.

Preparing Mower for Storage

Procedures for cleaning, lubricating, and protecting the mower before storage.

Battery Storage

Guidelines for storing the battery to maintain charge and lifespan.

Troubleshooting

Notes

Emission Control System Warranty

Owners Warranty Responsibilities

Owner's duties regarding maintenance and care for warranty validity.

Repair Protection Agreement

Craftsman 247.397600 Specifications

General IconGeneral
BrandCraftsman
Model247.397600
CategoryLawn Mower
TypeWalk-Behind
Power SourceGas
EngineBriggs & Stratton
Engine Type4-Cycle
Engine Displacement140cc
Cutting Width21 inches
Cutting Height Positions6
Starting SystemRecoil
Deck MaterialSteel
Mulching CapabilityYes
Bagging CapabilityYes
Side Discharge CapabilityYes
Starter TypeRecoil
Oil Capacity20 oz
Cutting Height1.25 to 3.75 inches
Wheel Size7 inches (front), 8 inches (rear)
