Craftsman 25912 - Cutting Unit Dismantling and Assembly

6

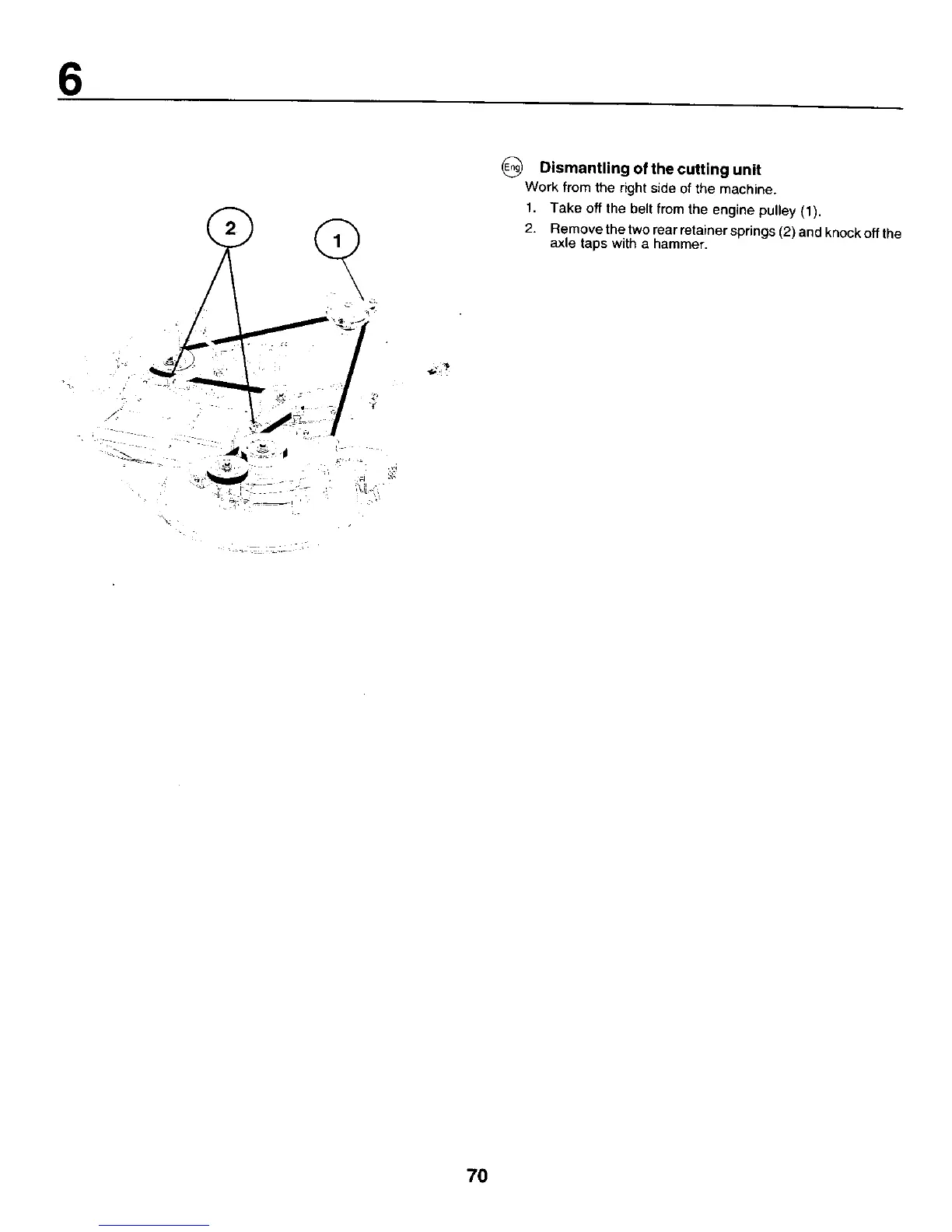

(_ Dismantling ofthecutting unit
Work from the right side of the machine.
1. Take off the belt from the engine pulley (1).
2. Remove the two rear retainer springs (2) and knock off the
axle taps with a hammer.
7O
