Your router table has a precision-built electric switch box and it should be con-
nected to only a 120-volt, 60-HZ AC power supply (normal household current),
DO NOT operate on direct current (DC). The large voltage drop would cause a
loss of power and the motor would overheat. If the router table does not oper-
ate when plugged into correct 120-volt, 60-HZ AC ONLY outlet, check the power
supply° The router table comes with an 8-ft. power cord (no adapter needed).

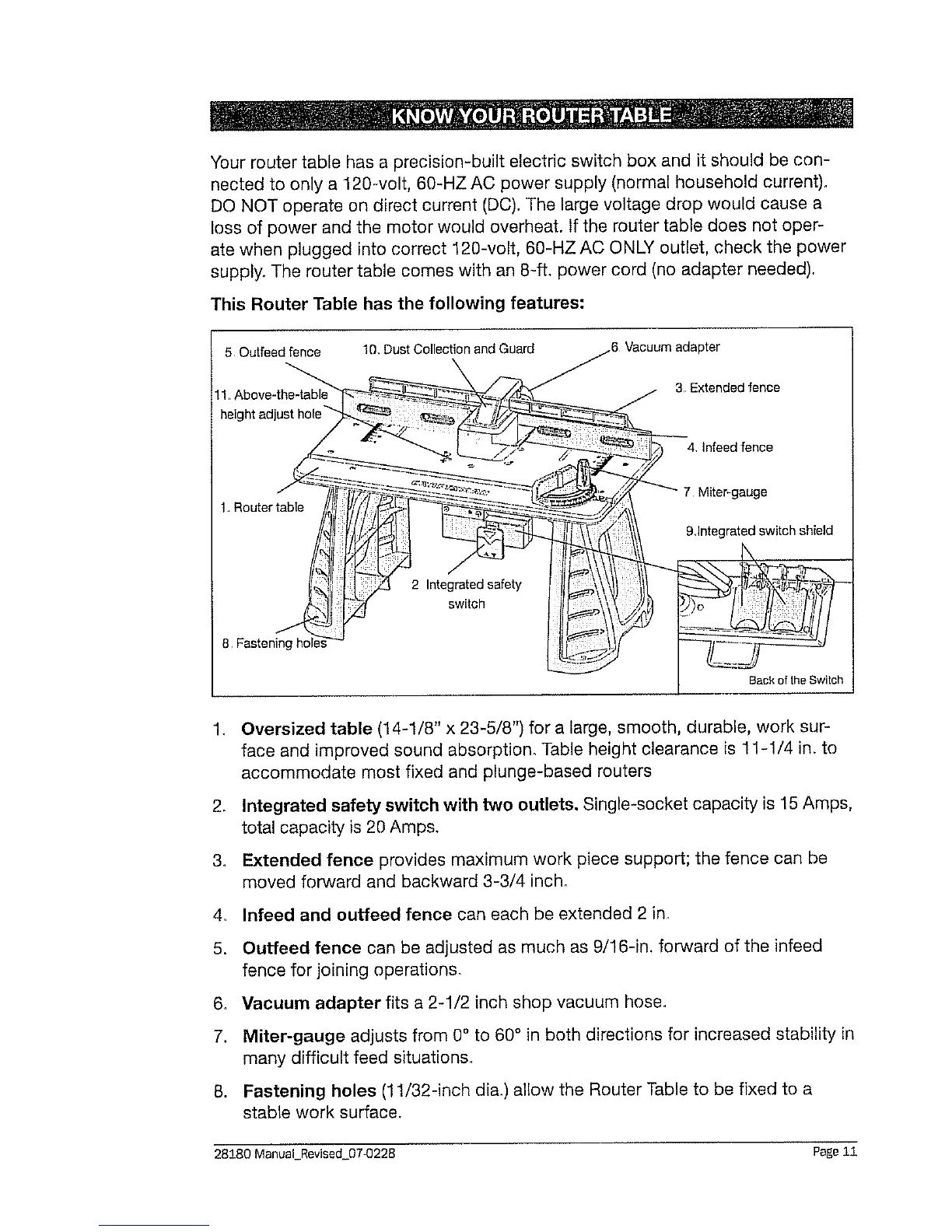

This Router Table has the following features:
50utfeed fence 10, Dust Collection and Guard pter
11 Above-the-table 3 Extended fence
1 Router table
2 Integrated safety
switch
8 Fastening
Back of the Switch
1, Oversized table (14-1/8" x 23-5/8") for a large, smooth, durable, work sur-
face and improved sound absorption. Table height clearance is 11-1/4 in. to
accommodate most fixed and plunge-based routers
2_ Integrated safety switch with two outlets, Single-socket capacity is t 5 Amps,
total capacity is 20 Amps.
3. Extended fence provides maximum work piece support; the fence can be
moved forward and backward 3-3/4 inch.
4. Infeed and outfeed fence can each be extended 2 in_
5. Outfeed fence can be adjusted as much as 9/16-in. forward of the infeed
fence for joining operations.
& Vacuum adapter fits a 2-1/2 inch shop vacuum hose,,
7. Miter-gauge adjusts from 0° to 60 ° in both directions for increased stability in
many difficult feed situations.
8. Fastening holes (11/32-inch dia.) allow the Router Table to be fixed to a
stable work surface.
28180 Manual Revised 0743228 Page 11
