5.
.
7_

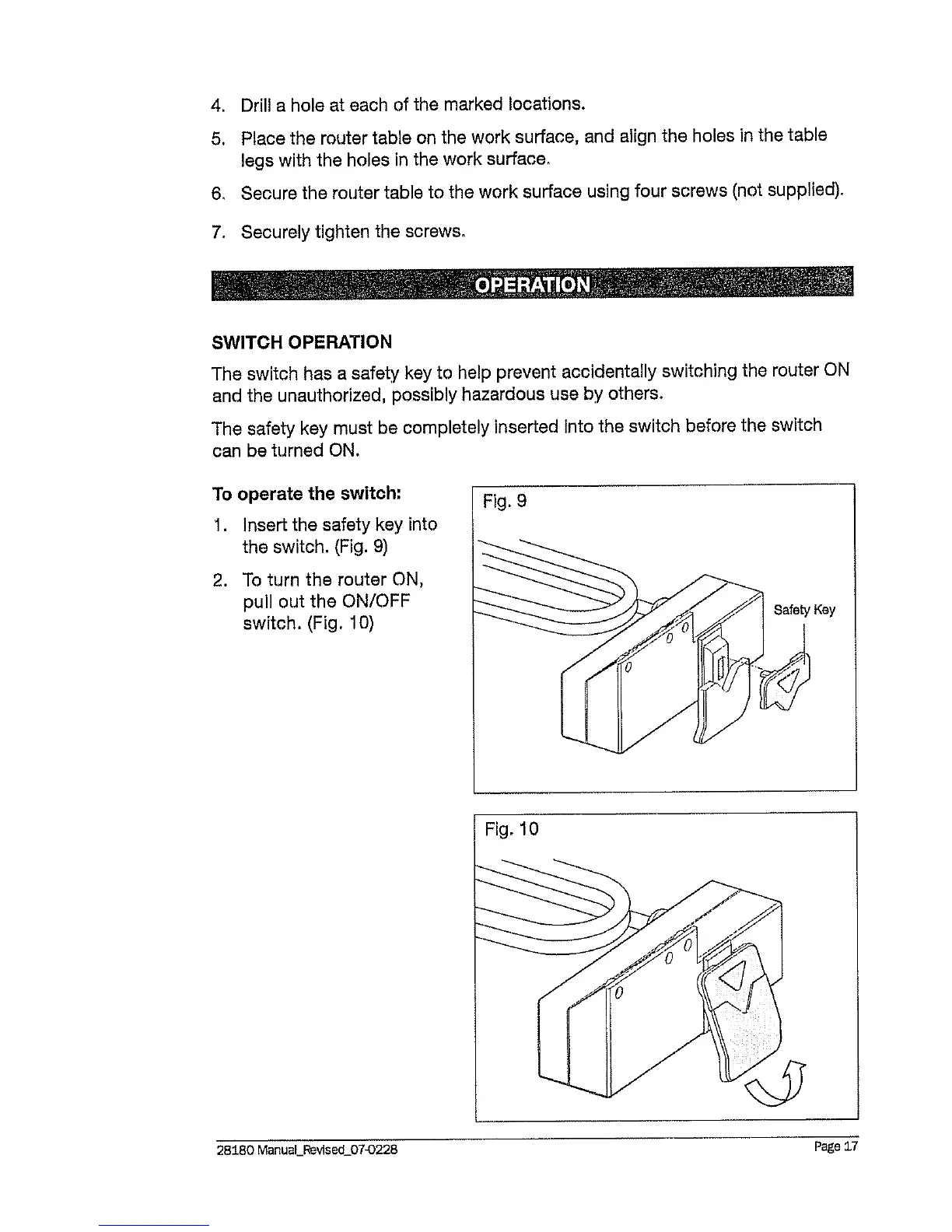

Drill a hole at each of the marked locations.
Place the router table on the work surface, and align the holes in the table
legs with the holes in the work surface.
Secure the router table to the work surface using four screws (not supplied).
Securely tighten the screws°
SWITCH OPERATION
The switch has a safety key to help prevent accidentally switching the router ON
and the unauthorized, possibly hazardous use by others°
The safety key must be completely inserted into the switch before the switch
can be turned ON.
To operate the switch:
1. Insert the safety key into
the switch. (Fig. 9)
2. To turn the router ON,
pull out the ON/OFF
switch. (Fig. 10)
Safety Key
Fig. 10
28180 Manual_Revised_07<)228 Page17
