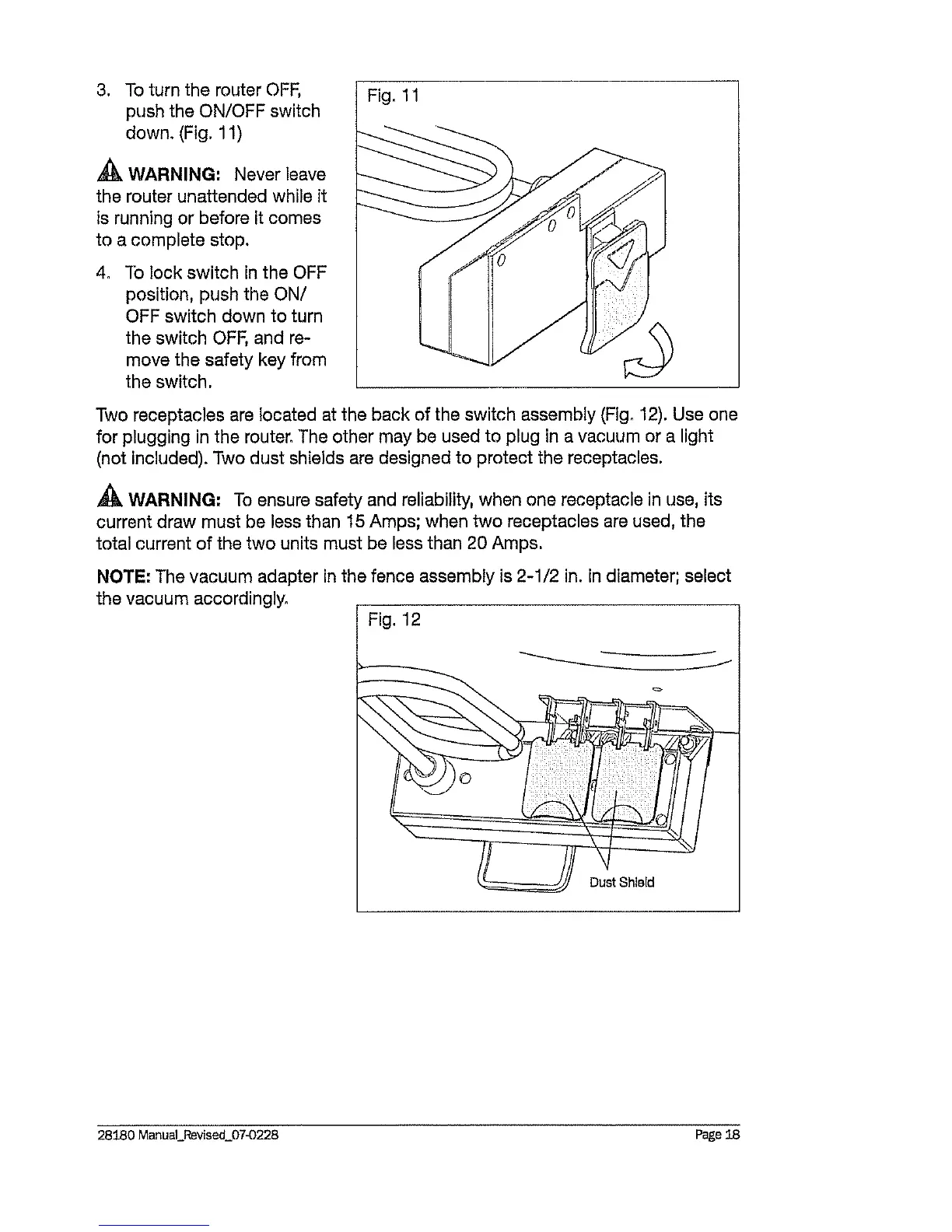

3. To turn the router OFF,
push the ON/OFF switch
down. (Fig, 11)
WARNING: Never leave
the router unattended while it
is running or before it comes
to a complete stop.
, To lock switch in the OFF
position, push the ON/
OFF switch down to turn
the switch OFF, and re-
move the safety key from
the switch.
Fig. 11
Two receptacles are located at the back of the switch assembly (Fig. 12). Use one
for plugging in the router. The other may be used to plug in a vacuum or a light
(not included). Two dust shields are designed to protect the receptacles.
,_ WARNING: To ensure safety and reliability, when one receptacle in use, its
current draw must be less than 15 Amps; when two receptacles are used, the
total current of the two units must be less than 20 Amps.
NOTE: The vacuum adapter in the fence assembly is 2-1/2 in. in diameter; select
the vacuum accordingly.
Fig. 12
Dust Shield
28/80 ManuatRevised_07-0228 Page/8
