WARNING: TO AVOID SERIOUS INJURY, BEFORE PERFORMING ANY SER-
VICE OR ADJUSTMENTS:
1, Depress brake pedal fully and set parking brake.
2. Place attachment clutch in "DISENGAGED" position.
3. Turn ignition key to "STOP" and remove key,
4. Make sure the blades and all moving parts have completely stopped,
5. Disconnect spark plug wire from spark plug and place wire where it cannot
come in contact with plug.

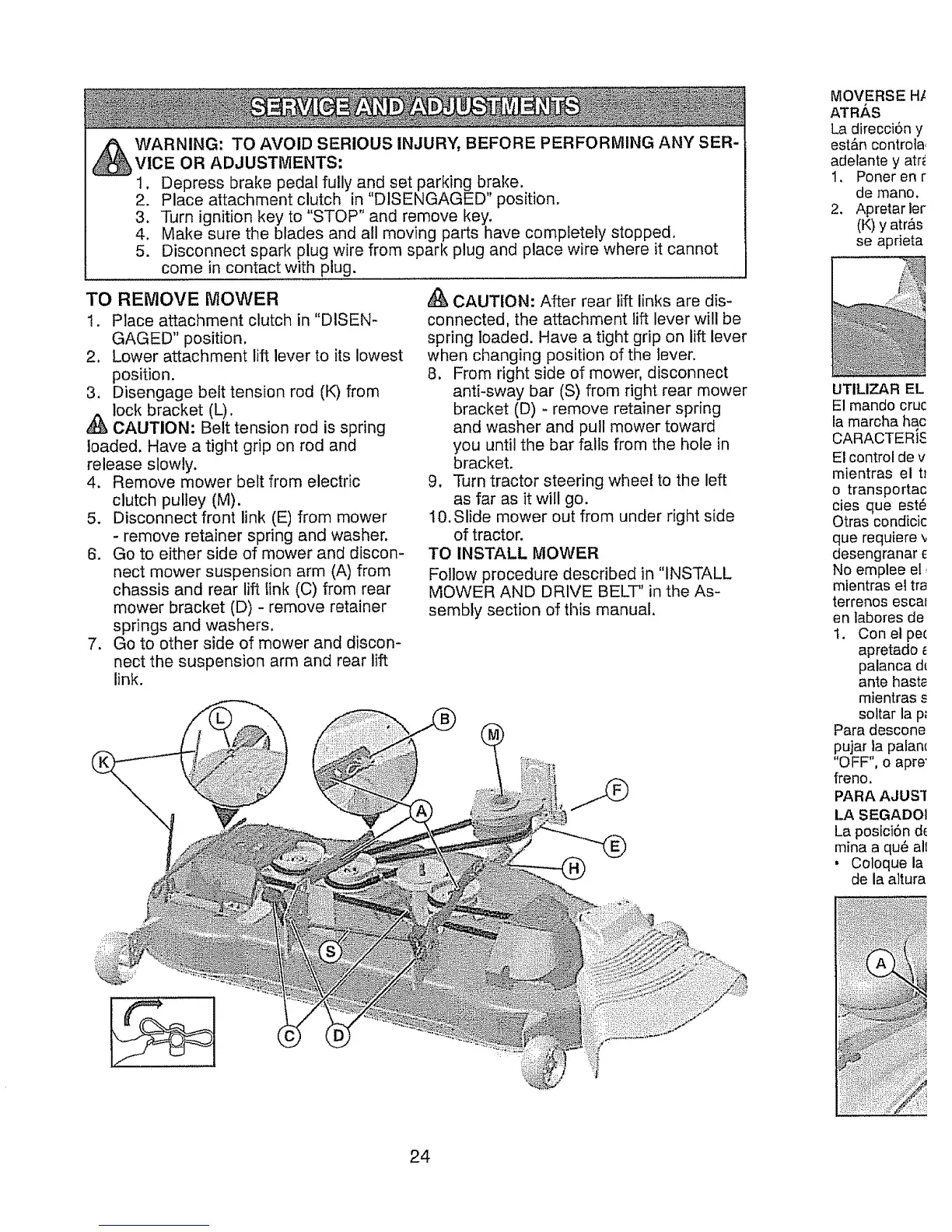

TO REiV1OVE MOWER
1. Place attachment clutch in "DISEN-
GAGED" position,
2, Lower attachment lift lever to its lowest
position.
3. Disengage belt tension rod (K) from
lock bracket (L),
_, CAUTION: Belt tension rod is spring
loaded. Have a tight grip on rod and
release slowly.
4. Remove mower belt from electric
clutch pulley (M),
5. Disconnect front link (E) from mower
- remove retainer spring and washer.
6. Go to either side of mower and discon-
nect mower suspension arm (A) from
chassis and rear lift link (C) from rear
mower bracket (D) - remove retainer
springs and washers,
7. Go to other side of mower and discon-
nect the suspension arm and rear lift
link.
CAUTION: After rear lift links are dis-
connected, the attachment lift lever will be
spring loaded. Have a tight grip on lift lever
when changing position of tile lever.
8, From right side of mower, disconnect
anti-sway bar (S) from right rear mower
bracket (D) - remove retainer spring
and washer and pull mower toward
you until the bar falls from the hole in
bracket.
9. Turn tractor steering wheel to the left
as far as it will go.
10.Slide mower out from under right side
of tractor.
TO INSTALL MOWER
Follow procedure described in "INSTALL
MOWER AND DRIVE BELT" in the As-
sembly section of this manual,
MOVERSE HI
ATRAS
La direcci6n y
est&n controta,
adelante y atr_
1. Poneren r
de mano.
2. Apretar ler
(K) y atra's
se aprieta
UTILIZAR EL
E1mando cruc
la marcha hac
CARACTERi5
El control de v
mientras el t_
o transportac
cies que est6
Otras condicic
que requiere
desengranar €
No emplee el,
mientras et tra
terrenos escal
en labores de
1. Con elpe(
apretado
palanca d{
ante haste
mientras s
soltar la p_
Para descone
pujar la palan_
"OFF", o apre"
freno.
PARA AJUS'I
LA SEGADOI
La posici6n d_
mina a qu6 al!
, Coloque la
de la a]tura
24
