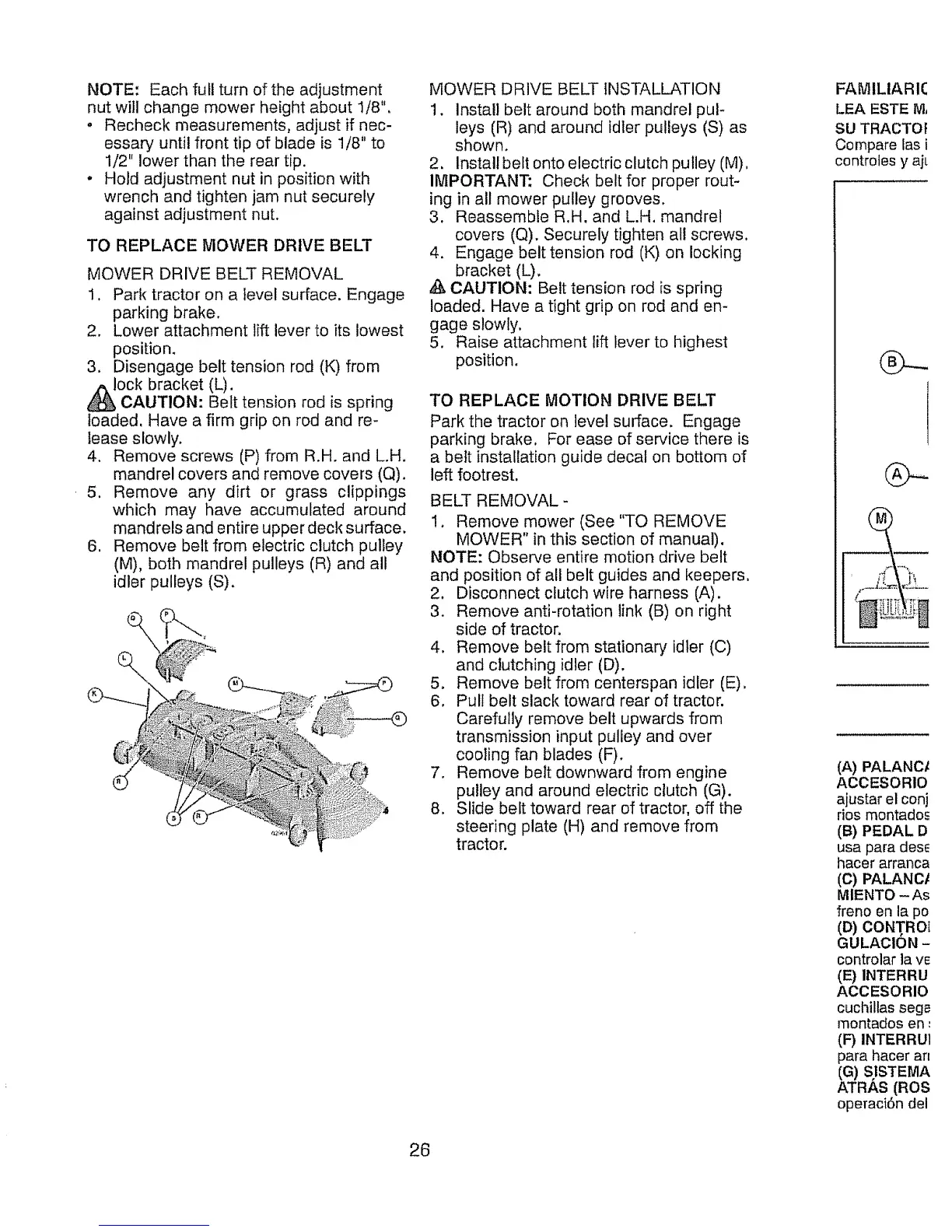

NOTE: Each full turn of the adjustment
nut will change mower height about 1/8".
, Recheck measurements, adjust if nec-
essary until front tip of blade is 1/8" to
1/2" lower than the rear tip.
- Hold adjustment nut in position with
wrench and tighten jam nut securely
against adjustment nut.
TO REPLACE MOWER DRIVE BELT
MOWER DRIVE BELT REMOVAL
1. Park tractor on a level surface. Engage
parking brake.
2. Lower attachment lift lever to its lowest
position.
3. Disengage belt tension rod (K) from
ock bracket (L).
CAUTION: Belt tension rod is spring
loaded, Have a firm grip on rod and re-
lease slowly.
4. Remove screws (P) from R.H. and L.H.
mandrel covers and remove covers (Q).
5. Remove any dirt or grass clippings
which may have accumulated around
mandrels and entire upper deck surface.
6. Remove belt from electric clutch pulley
(M), both mandrel pulleys (R) and all
idler pulleys (S).
MOWER DRIVE BELT INSTALLATION
1. install belt around both mandrel pul-
leys (R) and around idler pulleys (S) as
shown.
2. Install belt onto electric clutch pulley (M),
IMPORTANT" Check belt for proper rout-
ing in all mower pulley grooves.
3. Reassemble R.H. and L.H. mandrel
covers (Q). Securely tighten all screws,
4. Engage belt tension rod (14)on locking
bracket (L).
CAUTION: Belt tension rod is spring
loaded. Have a tight grip on rod and en-
gage slowly,
5. Raise attachment lift lever to highest
position.
TO REPLACE MOTION DRIVE BELT
Park the tractor on level surface. Engage
parking brake. For ease of service there is
a belt installation guide decal on bottom of
left footrest.
BELT REMOVAL-
1. Remove mower (See "TO REMOVE
MOWER" in this section of manual).
NOTE: Observe entire motion drive belt
and position of all belt guides and keepers,
2. Disconnect clutch wire harness (A).
3. Remove anti-rotation link (B) on right
side of tractor.
4. Remove belt from stationary idler (C)
and clutching idler (D).
5. Remove belt from centerspan idler (E),
6. Pull belt slack toward rear of tractor.
Carefully remove belt upwards from
transmission input pulley and over
cooling fan blades (F).
7. Remove belt downward from engine
pulley and around electric clutch (G).
8. Slide belt toward rear of tractor, off the
steering plate (H) and remove from
tractor.
FAMILIARlC
LEA ESTE M,
SU TRACTOt
Compare las i
controles y ajl
(A) PALANCI
ACCESORIO
ajustar el conj
dos montado_
(B) PEDAL D
usa para desE
hacer arranoa
(C) PALANCl
MIENTO - As
freno en la po
(D) CONTROI
GULACION -
controlar ]ave
(E) INTERRU
ACCESORIO
cuchillas sega
montados en
(F) INTERRU1
para hacer at=
(G)SlSTEMA
ATRAS (ROS
operaci6n del
26
