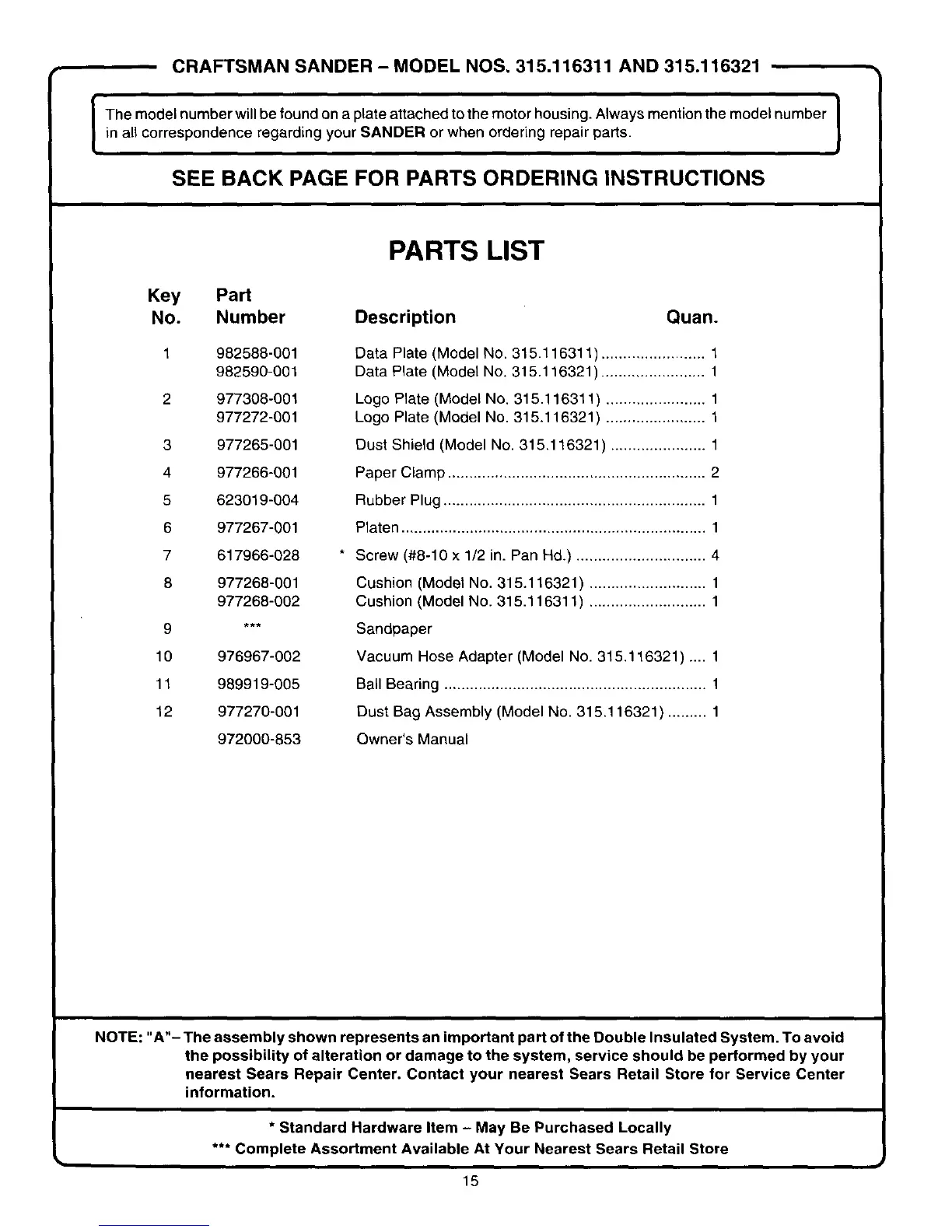

CRAFTSMAN SANDER - MODEL NOS. 315.116311 AND 315.116321
The model number will be found on a plate attached to the motor housing. Nways mention the model number
in all correspondence regarding your SANDER or when ordering repair parts.
SEE BACK PAGE FOR PARTS ORDERING INSTRUCTIONS
J
Key Part
No. Number
1 982588-001
982590-001
2 977308-001
977272-001
3 977265-001
4 977266-001
5 623019-004
6 977267-001
7 617966-028
8 977268-001
977268-002
9 ***
10 976967-002
11 989919-005
12 977270-001
972000-853
PARTS LIST
Description Quan.
Data Plate (Model No. 315.116311) ........................ 1
Data Plate (Model No. 315.116321 ) ........................ 1
Logo Plate (Model No, 315.116311) ....................... 1
Logo Plate (Model No. 315.116321) ....................... 1
Dust Shield (Model No. 315,116321 ) ...................... 1
Paper Clamp ............................................................ 2
Rubber Plug ............................................................. 1
Platen ....................................................................... 1
Screw (#8-10 x 1/2 in. Pan Hd.) .............................. 4
Cushion (Model No. 315.116321) ........................... 1
Cushion (Model No. 315.116311) ........................... 1
Sandpaper
Vacuum Hose Adapter (Model No. 315.116321) .... 1
Ball Bearing ............................................................. 1
Dust Bag Assembly (Model No. 315.116321) ......... 1
Owner's Manual
NOTE: "A"- The assembly shown represents an important part of the Double Insulated System. To avoid
the possibility of alteration or damage to the system, service should be performed by your
nearest Sears Repair Center. Contact your nearest Sears Retail Store for Service Center
information.
* Standard Hardware Item - May Be Purchased Locally
*** Complete Assortment Available At Your Nearest Sears Retail Store
