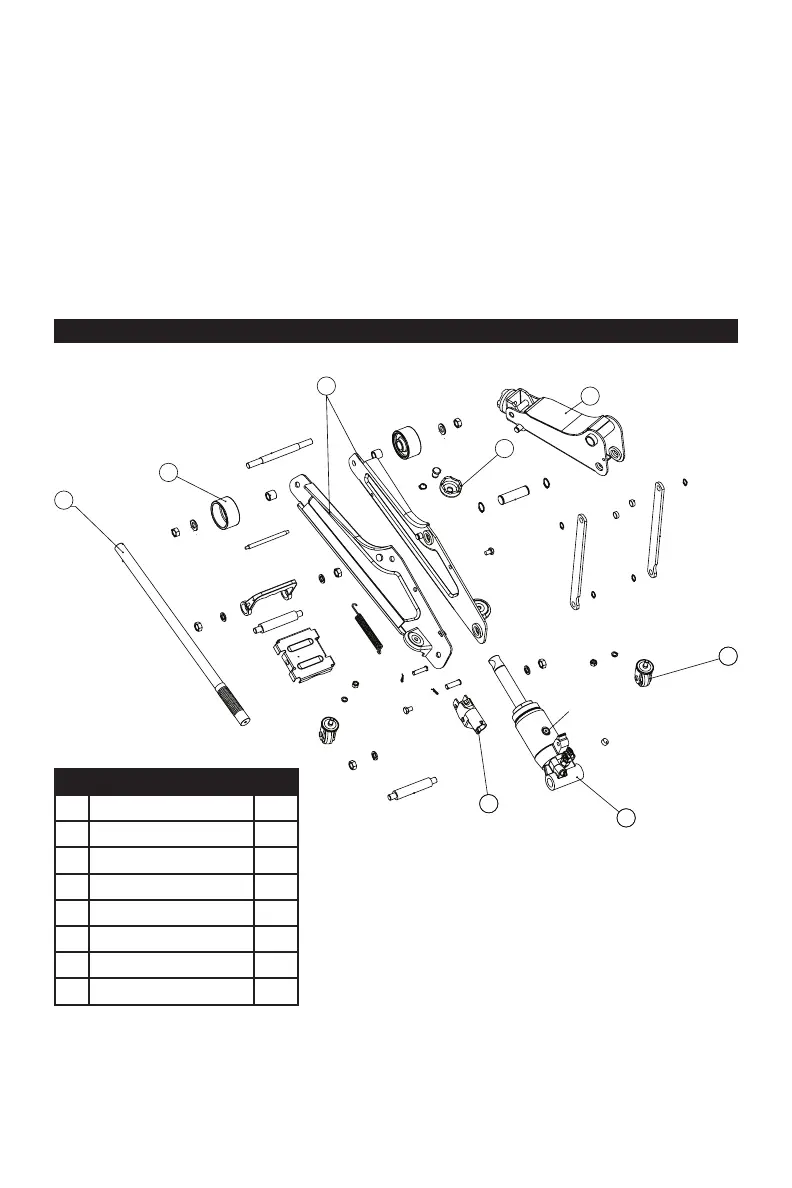

EXPLODED VIEW AND PARTS LIST
1
2
4
5
6
7
8
Oil Fill Plug
# Description Qty.
1 Saddle 1
2 Lift Arm 1
3 Side Plate Assembly 1
4 Front Wheel 2
5 Rear Caster Assembly 2
6 Handle 1
7 Handle Socket 1
8 Power Unit Assembly 1
For Help Line, Parts and Service:
Call 8:00 am - 4:45 pm, CT, Monday - Friday
1-888-332-6419
Rust Prevention:
• Check ram and pump plunger on the Power
Unit Assembly every two months (or sooner,
based on usage) for any signs of rust or
corrosion. Lift the jack as high as it goes
and look under and behind the lifting arm. If
signs of rust are visible clean as needed and
wipe down with with an oily cloth or cloth
sprayed with WD-40.
• When storing the jack, always have the
saddle and pump plunger in the down
postion.
ALWAYS USE A GOOD GRADE
HYDRAULIC JACK OIL. DO NOT USE
HYDRAULIC BRAKE FLUID, ALCOHOL,
GLYCERINE, DETERGENT, MOTOR
OIL OR DIRTY OIL. USE OF AN UN-
RECOMMENDED FLUID CAN CAUSE
DAMAGE TO YOUR JACK.
Air Purge Procedure
During shipment, air may get into the
hydraulic system causing reduced lifting
performance. Perform Air Purge Procedure
described on page 2.
