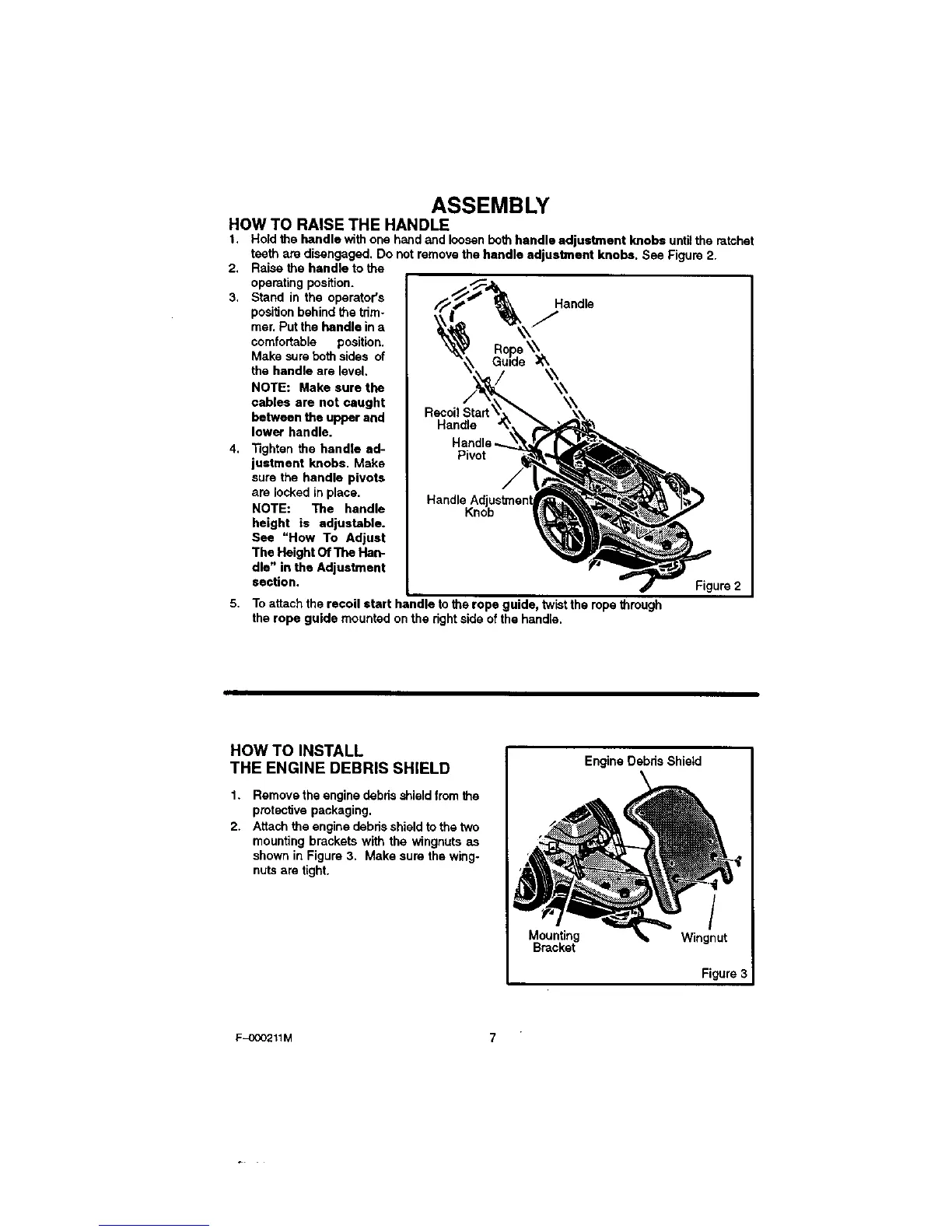

ASSEMBLY
HOW TO RAISE THE HANDLE
t. Hold the handle with one hasd asd loosen both handle adjustment knobs untU the ratchet
teeth are disengaged. Do not remove the handle adjustment knobs. See Figure 2.
2. Raise the handle to the
operating position.
3. Stand in the operator's
position behind the trim-
mer. Put the handle in a
comfortable position.
Make sure both sides of
the handle are level.
NOTE: Make sure the
cables are not caught
between the upper and
lower handle.
4. Tighten the handle ad-
justment knobs. Make
sure the handle pivots
are locked in place.
NOTE: The handle
height is adjustable.
See "How To Adjust
The Height Of The Han-
dle" in the Adjustment
section.
Handle
Rope \\
Guide
/ \\
\\
\\
Recoil
Handle
Pivot
5. To attach the recoil start handle to the rope guide, twist the rope through
the rope guide mounted on the right side of the handle.
Figure 2
HOW TO INSTALL
THE ENGINE DEBRIS SHIELD
1. Remove the engine debris shield from the
proteclJve packaging.
2. Attach the engine debris shield to the two
mounting brackets with the wingnuts as
shown in Figure 3. Make sure the wing°
nuts are tight.
Mounting
Bracket
Figure
F-O(X)211M
