Craftsman 580.752921 - Page 27

27
Item Part # Description
33 200275GS SCREW
36 B2384GS FILTER-GARDEN HOSE
A 317897GS KIT-CHECK VALVE
B 200345GS KIT-WATER SEAL
C 200346GS KIT-O-RING
D 315747GS KIT-UNLOADER
E 192914GS KIT-CHEMICAL INJ
F 200349GS KIT-EASY START
G 200350GS SCREW-GRUB
H 201497GS FITTING
J 201496GS KIT-WATER INLET
K 317057GS KIT-PLUG
Parts Not Illustrated
Part # Description
208673GS VALVE-THERMO RELIEF
Optional Accessories Not Illustrated
Sears Item # Description
74403 Pump Saver
75127 Pump Oil
NOTE: Item letters A - K are Service Kits and include all parts
shown within the box.
CRAFTSMAN 2700 PSI Pressure Washer 580.752921

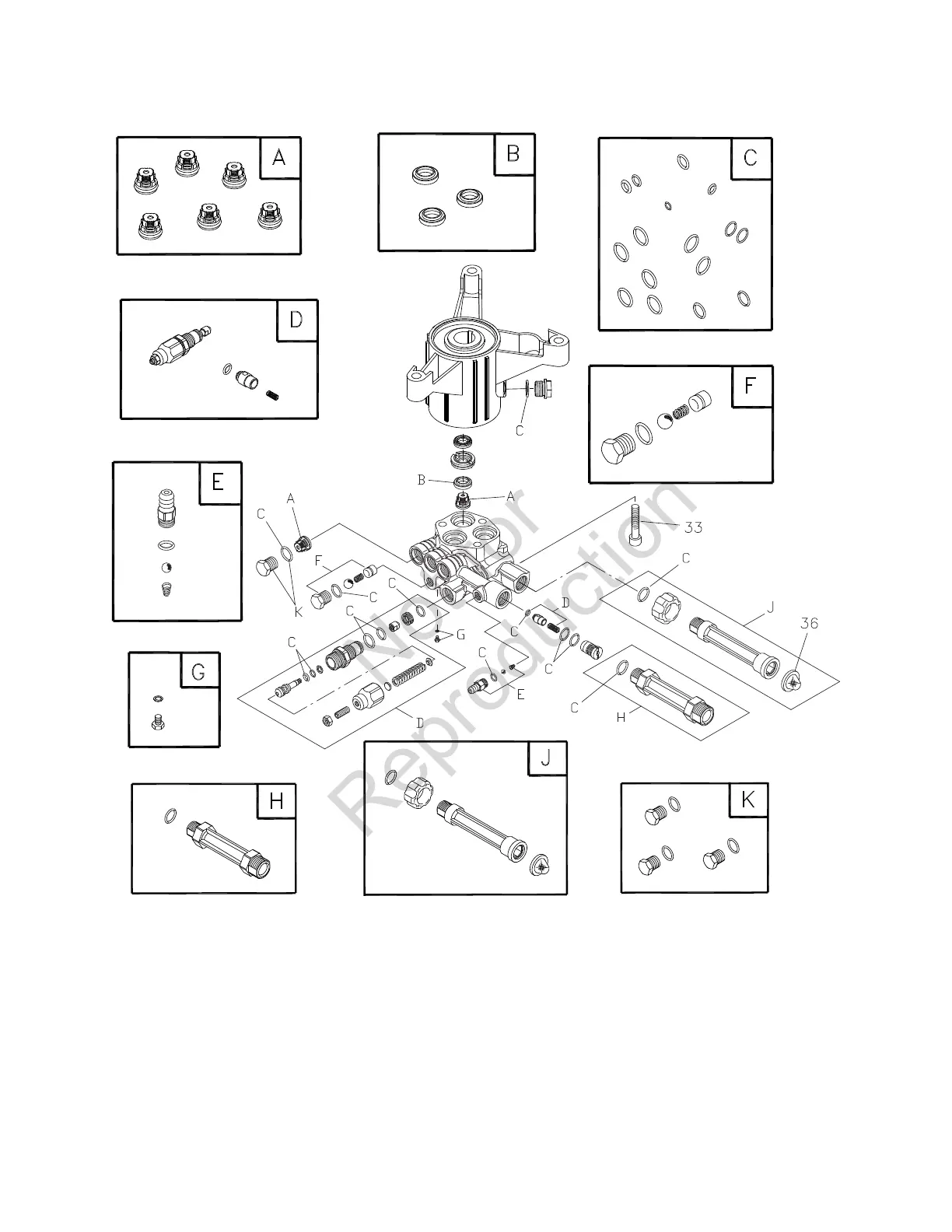

Pump — Exploded View and Parts List
Not for
Reproduction
