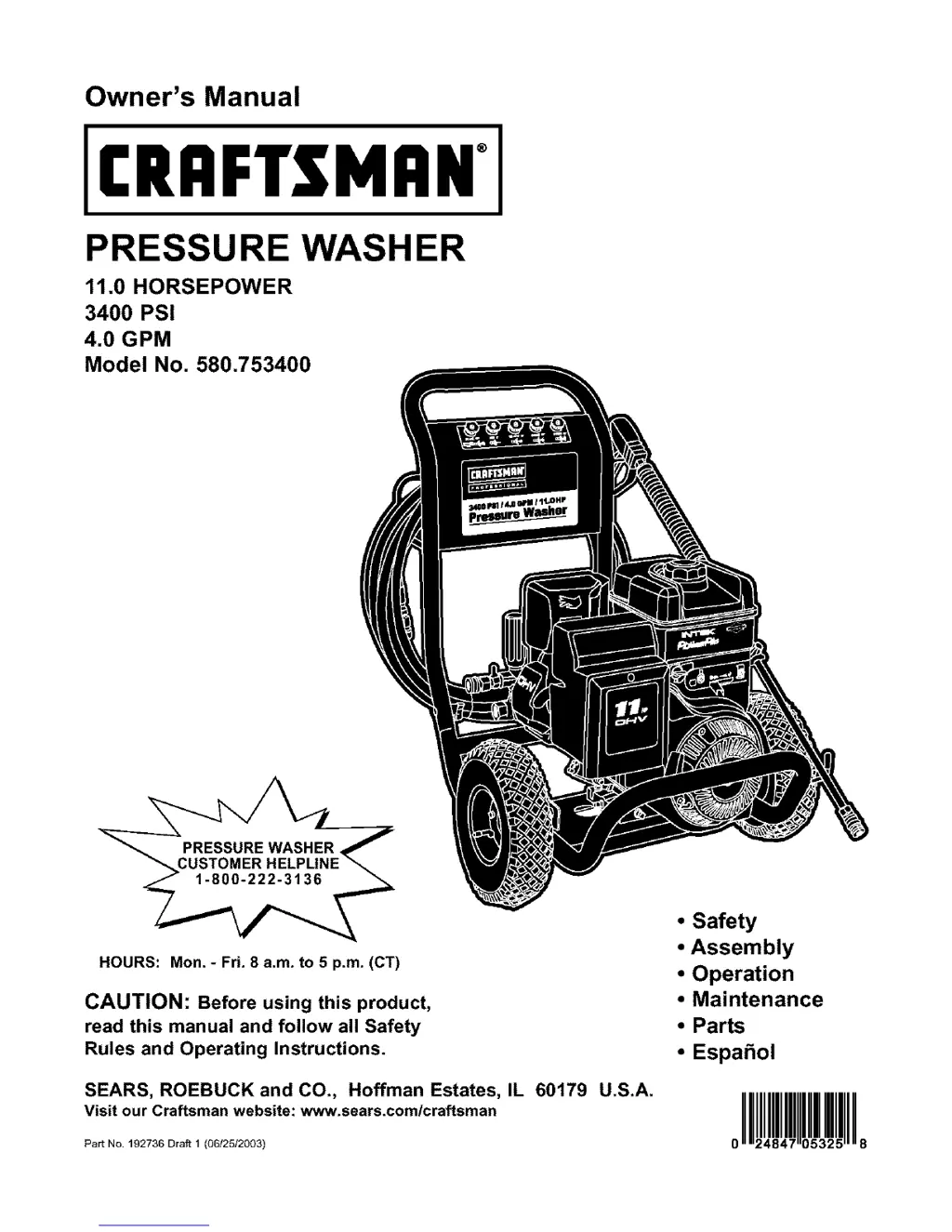

Owner's Manual
ICRRFTSMRN+I
PRESSURE WASHER
11.0 HORSEPOWER
3400 PSI
4.0 GPM
Model No. 580.753400
HOURS: Mon. - FrL 8 a.m. to 5 p.m. (CT)
CAUTION: Before using this product,
read this manual and follow all Safety
Rules and Operating Instructions.
SEARS, ROEBUCK and CO., Hoffman Estates, IL 60179 U.S.A.
visit our Craftsman website: www.sears.com/craftsman
Part No. 192736 Draft 1 (0612512003)
• Safety
• Assembly
• Operation
• Maintenance
• Parts
• Espa_ol
01!!1!1!!!1!8

Table of Contents

Questions and Answers

  • M
    mckinneycarolineJul 31, 2025
    Why won't my Craftsman 580.753400 Pressure Washer engine start or runs rough?
    • T
      tbrownJul 31, 2025
      Several factors can prevent your engine from starting or cause it to run rough: * A dirty air cleaner may be the culprit - try cleaning or replacing it. * Make sure the fuel tank is filled with gasoline. * Old gasoline can also cause issues, so drain the tank and refill with fresh fuel. * Ensure the spark plug wire is correctly connected to the spark plug. Replace the spark plug if it is bad. * If there is water in the gasoline, drain the tank and fill it with fresh fuel. * If the engine is overchoking, open the choke fully and crank the engine.
  • G
    Garrett HowellAug 6, 2025
    What to do if my Craftsman 580.753400 engine shuts down during operation?
    • R
      Robert CrawfordAug 6, 2025
      If your engine shuts down during operation, the most likely cause is that you are out of gasoline. Refill the fuel tank.
  • A
    Andrea BrownAug 12, 2025
    How to fix a Craftsman 580.753400 Pressure Washer engine that runs good at no-load but bogs when load is added?
    • T
      taylorcarlaAug 12, 2025
      If your engine runs well without a load but bogs down when a load is added, the engine speed may be too slow. Try moving the throttle control to the FAST position.
  • D
    Dennis WelchAug 17, 2025
    Why does my Craftsman 580.753400 engine lack power?
    • C
      Caitlin WrightAug 17, 2025
      If your engine lacks power, it might be due to a dirty air filter. Replace the air filter to resolve this issue.
  • J
    Jennifer LopezAug 25, 2025
    How to fix Craftsman 580.753400 when detergent fails to mix with spray?
    • L
      Laura PerezAug 25, 2025
      If the detergent is not mixing with the spray, consider the following: * Ensure the detergent siphoning tube is fully submerged in the detergent. * The chemical filter may be clogged; clean or replace the filter/detergent siphoning tube. * Make sure the nozzle is in low pressure mode by pushing the nozzle forward.

Summary

Warranty Information

Limited Warranty Details

Details the limited warranty coverage for the Craftsman pressure washer, including terms and conditions.

Safety Rules and Warnings

Fuel and Exhaust Hazards

Electrical and Water Safety

High-Pressure Water and Hot Surface Hazards

Covers risks of high-pressure water injection injury and burns from hot engine parts.

Rotating Parts and Sparking Hazards

Assembly Instructions

Unpacking and Initial Setup

Filling Engine and Pump Oil

Detailed instructions on how to properly add oil to the engine and pump.

Adding Fuel to Tank

Guidance on safely filling the fuel tank with appropriate gasoline.

Connecting Hoses and Water Supply

Steps for connecting the garden hose and high-pressure hoses to the unit.

Pre-Operation Checklist

Operating Your Pressure Washer

Starting the Pressure Washer

Comprehensive guide to starting the engine-powered pressure washer.

Stopping the Pressure Washer

Using Spray Tips

Instructions on selecting, attaching, and using different spray tips for various cleaning tasks.

Applying Detergent and Cleaning

Steps for using detergent with the pressure washer for effective cleaning.

Maintenance Procedures

Owners Maintenance Schedule

Outlines required maintenance tasks and their intervals for regular upkeep.

Product and Engine Specifications

Before Each Use Checks

Pump and Engine Oil Procedures

Detailed instructions for changing pump and engine oil and checking levels.

Air Cleaner Service

Spark Plug and Carburetor Service

Storage Guidelines

Post-Use Storage Procedures

Winter and Long-Term Storage

Specific instructions for protecting the unit during cold weather or extended periods.

Fuel System Protection for Storage

Guidance on protecting the fuel system to prevent issues during storage.

Pump and Cylinder Bore Protection

Methods to protect the pump and cylinder bore from damage during storage.

Troubleshooting Common Issues

Pump Performance Troubleshooting

Solutions for issues related to pressure, water volume, and pump operation.

Engine and Detergent Troubleshooting

Craftsman 580.753400 Specifications

General IconGeneral
Power SourceGasoline
Flow Rate2.3 GPM
Hose Length25 ft
Weight45 lbs
PumpAxial Cam
Nozzles Included0°, 25°, 40°
