Shed Assembly – Headers/Continued

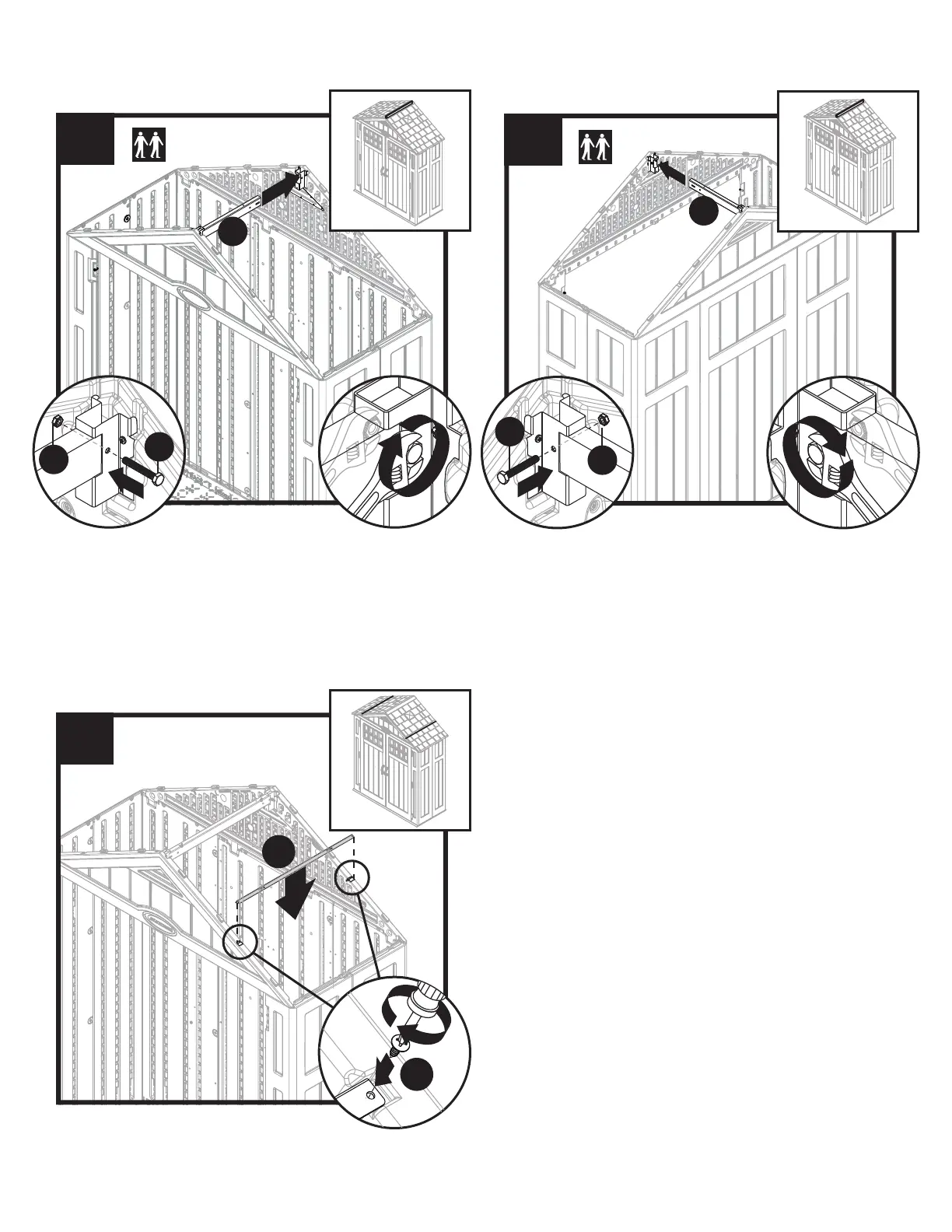

Raise ridge beam (T) up and into rear roof ridge beam
bracket. Secure with one 2" hex bolt (W) and one nut (Z).
Note: Alignment of ridge beam to bracket may require
header panels to be pushed inwards or outwards
slightly as ridge beam is slid into place.
1
3
2
22
Z
W
T
Slide ridge beam (T) into front roof ridge beam bracket.
Secure with one 2" hex bolt (W) and one nut (Z). Note:
Alignment of ridge beam to bracket may require header
panels to be pushed inwards or outwards slightly as
ridge beam is slid into place.
1
24
2
3
BB
x2
HH
Attach roof support bracket (HH) to front and rear
headers. Secure with two screws (BB).
Repeat for remaining roof support.
