r" 3
m -
q
p

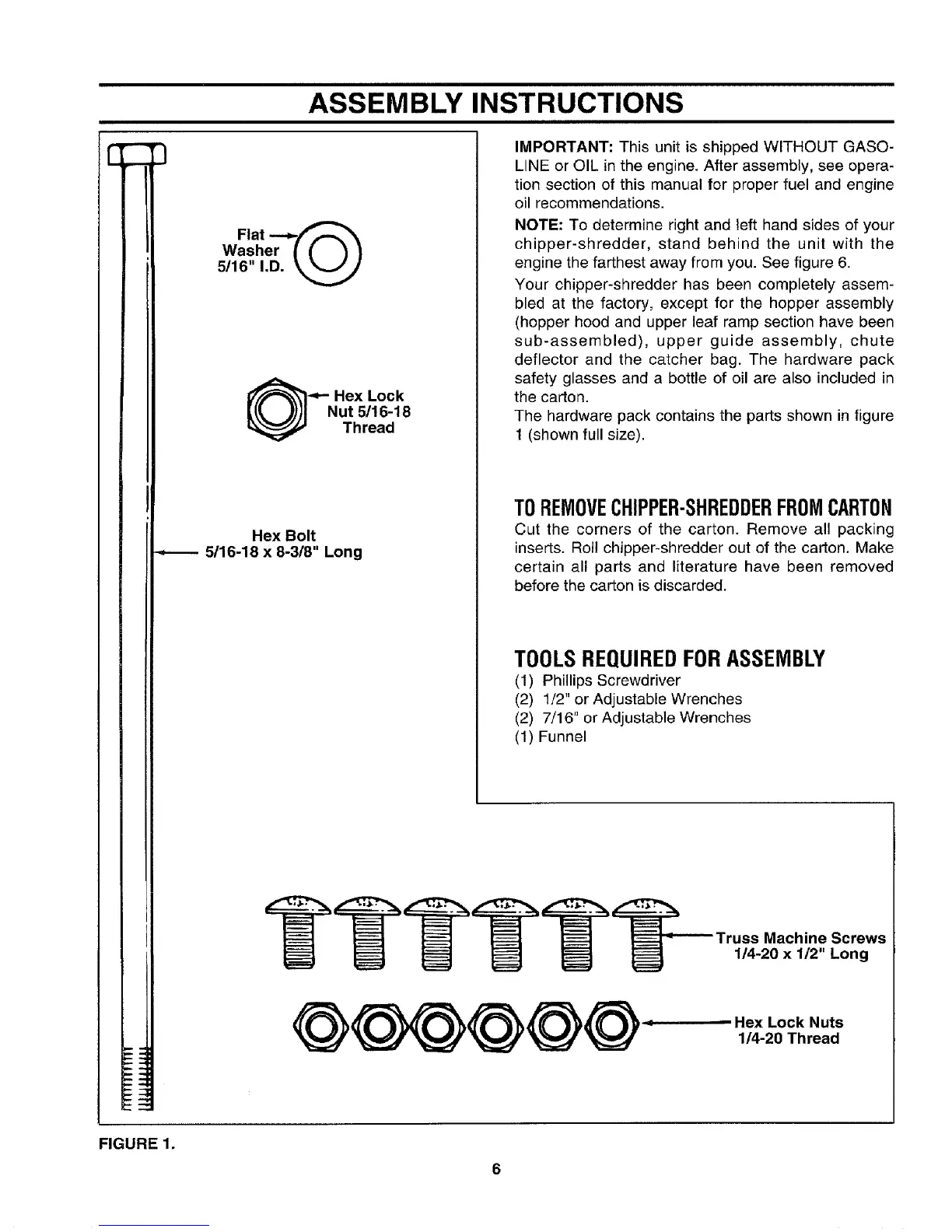

FIGURE 1.
ASSEMBLY INSTRUCTIONS
Flat ---=-//_
Washer | 1_ _ |
5/16" I.D.
_,.--Hex Lock
Nut 5/16-18
Thread
Hex Bolt
5/16-18 x 8-3/8" Long
IMPORTANT: This unit is shipped WITHOUT GASO-
LINE or OIL in the engine. After assembly, see opera-
tion section of this manual for proper fuel and engine
oil recommendations.
NOTE: To determine right and left hand sides of your
chipper-shredder, stand behind the unit with the
engine the farthest away from you. See figure 6.
Your chipper-shredder has been completely assem-
bled at the factory, except for the hopper assembly
(hopper hood and upper leaf ramp section have been
sub-assembled), upper guide assembly, chute
deflector and the catcher bag. The hardware pack
safety glasses and a bottle of oil are also included in
the carton.
The hardware pack contains the parts shown in figure
1 (shown full size).
TOREMOVECHIPPER-SHREDDERFROMCARTON
Cut the corners of the carton. Remove all packing
inserts. Roll chipper-shredder out of the carton. Make
certain all parts and literature have been removed
before the carton is discarded.
TOOLS REQUIREDFORASSEMBLY
(1) Phillips Screwdriver
(2) 1/2" or Adjustable Wrenches
(2) 7/16" or Adjustable Wrenches
(1) Funnel
uss Machine Screws
1/4-20 x 1/2" Long
Hex Lock Nuts
1/4-20 Thread
