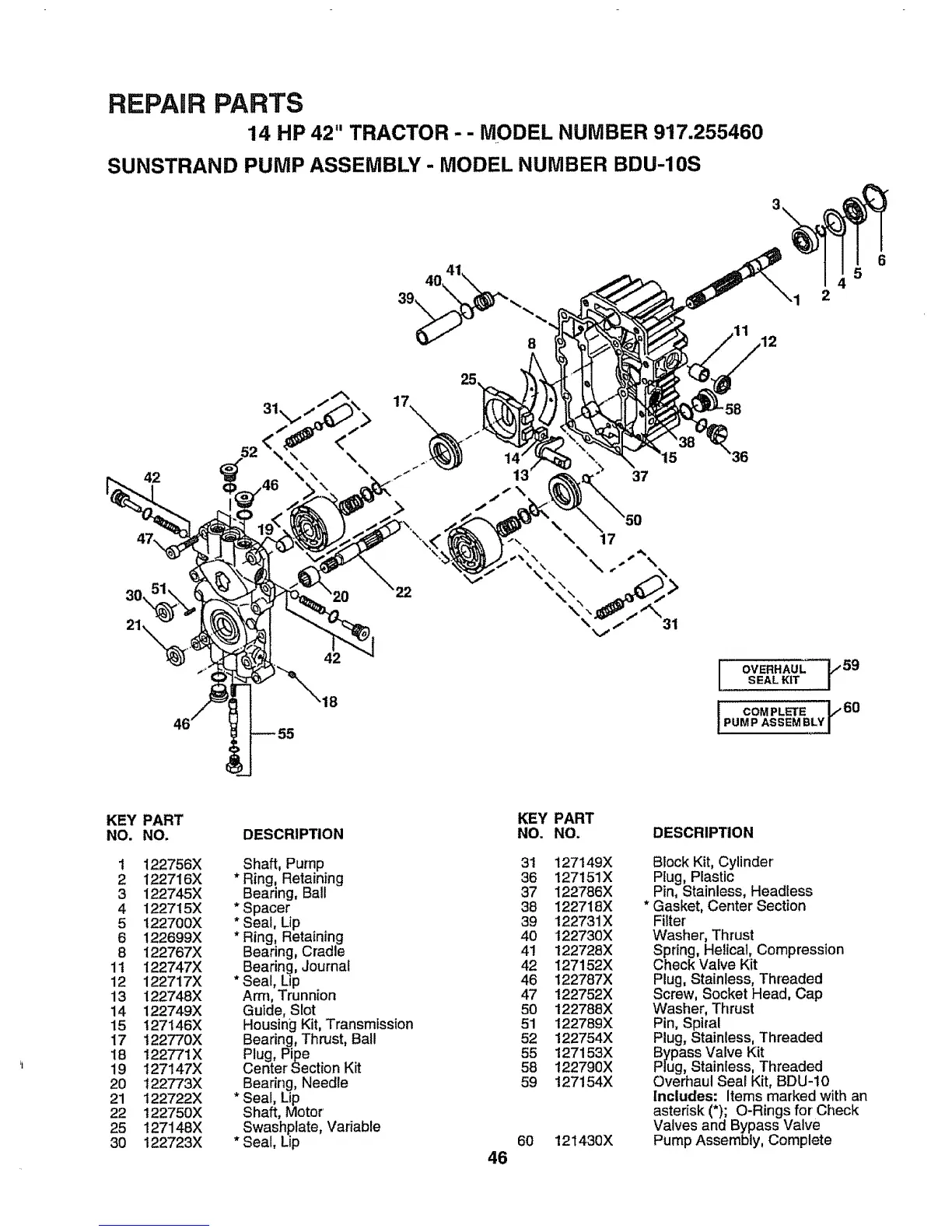

REPAIR PARTS
14 HP 42" TRACTOR-- MODEL NUMBER 917.255460
SUNSTRAND PUMP ASSEMBLY - MODEL NUMBER BDU-10S
3\
42
30,
21\
42
18
4O
>
25
-" 37
5
I 2
OVERHAUL ]F59
SEAL KIT
COMPLETE 1t,60
PUMP ASSEMBLY]
6
KEY
NO.
1
2
3
4
5
6
8
11
12
13
14
15
17
18
19
20
21
22
25
30
PART
NO.
122756X
122716X
122745X
122715X
t22700X
122699X
122767X
122747X
122717X
122748X
122749X
t 27 !46X
t 22770X
122771X
127147X
122773X
122722X
t22750X
127148X
122723X
DESCRIPTION
Shaft, Pump
* Ring, Retaining
Bearing, Ball
* Spacer
* Seal, Lip
* Ring, Retaining
Bearing, Cradle
Bearing, Journal
* Seal, Lip
Am1, Trunnion
Guide, Slot
HousingKit,Transmission
Bearing,Thrust, Ball
Plug, Pipe
Center Section Kit
Beadng, Needle
* Seal, Lip
Shaft, Motor'
Swashplate, Variable
* Seal, Lip
KEY PART
NO. NO.
31 127149X
36 127151X
37 122786X
38 122718X
39 122731X
4O 122730X
4! 122728X
42 127152X
46 t22787X
47 122752X
50 122788X
51 122789X
52 122754X
55 127153X
58 122790X
59 127154X
6O
46
12t430X
DESCRIPTION
Block Kit, Cylinder
Ptug, Plastic
Pin, Stainless, Headless
Gasket, Center Section
Filter
Washer, Thrust
Spdng, Helical, Compression
Check Valve Kit
Plug, Stainless, Threaded
Screw, Socket Head, Cap
Washer, Thrust
Pin, Spiral
Plug, Stainless, Threaded
Bypass Valve Kit
Plug, Stainless, Threaded
Overhaul Seal Kit, BDU-10
Includes: Items marked with an
asterisk (*); O-Rings for Check
Valves and Bypass Valve
Pump Assembly, Complete
