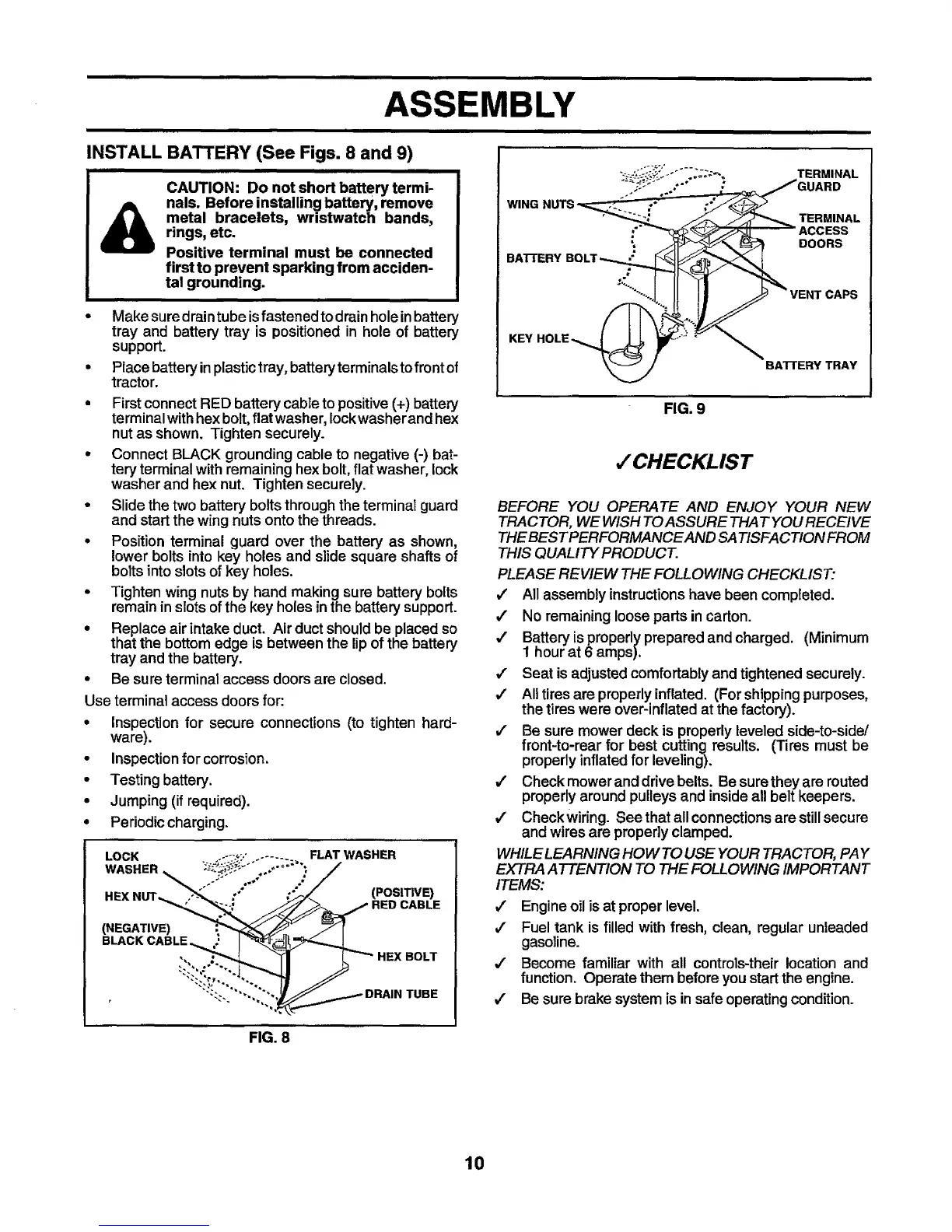

ASSEMBLY
INSTALL BATTERY (See Figs. 8 and 9)
CAUTION: Do not short battery termi-
nals. Before installing battery, remove
metal bracelets, wristwatch bands,
rings, etc.
Positive terminal must be connected
first to prevent sparking from acciden-
tal grounding.
w
• Make sure drain tube isfastened to drain hole inbattery
tray and battery tray is positioned in hole of battery
• support.
Placebattery in plastic tray, battery terminals to front of
tractor.
• First connect RED battery cable to positive (+) battery
terminal with hex bolt, flat washer, lockwasherand hex
nut as shown. Tighten securely.
• Connect BLACK grounding cable to negative (-) bat-
tery terminal with remaining hex bolt, flat washer, lock
washer and hex nut. Tighten securely.
• Slide the two battery bolts through the terminal guard
and start the wing nuts onto the threads.
• Position terminal guard over the battery as shown,
lower bolts into key holes and slide square shafts of
bolts into slots of key holes.
• Tighten wing nuts by hand making sure battery bolts
remain in slots of the key holes inthe battery support.
• Replace air intake duct. Air duct should be placed so
that the bottom edge is between the lip of the battery
tray and the battery.
• Be sure terminal access doors are closed.
Use terminal access doors for:
• Inspection for secure connections (to tighten hard-
, ware).
Inspection for corrosion.
• Testing battery.
• Jumping (if required).
1
I HEX NUTL'_.:"':; •/" :"__ (POSITIVE) /
I (NEGATIVE) /
/ S ,CKCABLE....j /
RG. 8
DOORS
BATTERY TRAY
FIG. 9
J CHECKLIST
BEFORE YOU OPERATE AND ENJOY YOUR NEW
TRACTOR, WE WISH TO ASSURE THAT YOU RECEIVE
THEBEST PERFORMANCEAND SATISFACTION FROM
THIS QUALITY PRODUCT.
PLEASE REVIEW THE FOLLOWING CHECKLIST:
,/ All assembly instructions have been completed.
#" No remaining loose parts in carton.
J Battery is properly prepared and charged. (Minimum
1 hour at 6 amps).
,/ Seat is adjusted comfortably and tightened securely.
J All tires are properly inflated. (For shipping purposes,
the tires were over-inflated at the factory).
J Be sure mower deck is properly leveled side-to-side/
front-to-rear for best cutting results. (Tires must be
properly inflated for leveling).
/ Check mowerand drive belts. Be surethey are routed
properly around pulleys and inside all belt keepers.
/ Check wiring. See that all connections are still secure
and wires are propedy clamped.
WHILE LEARNING HOW TO USE YOUR TRACTOR, PAY
EXTRA ATTENTION TO THE FOLLOWING IMPORTANT
ITEMS:
v" Engine oil is at proper level.
J Fuel tank is filled with fresh, clean, regular unleaded
gasoline.
J Become familiar with all controls-their location and
function. Operate them before you start the engine.
J Be sure brake system is in safe operating condition.
10
