i

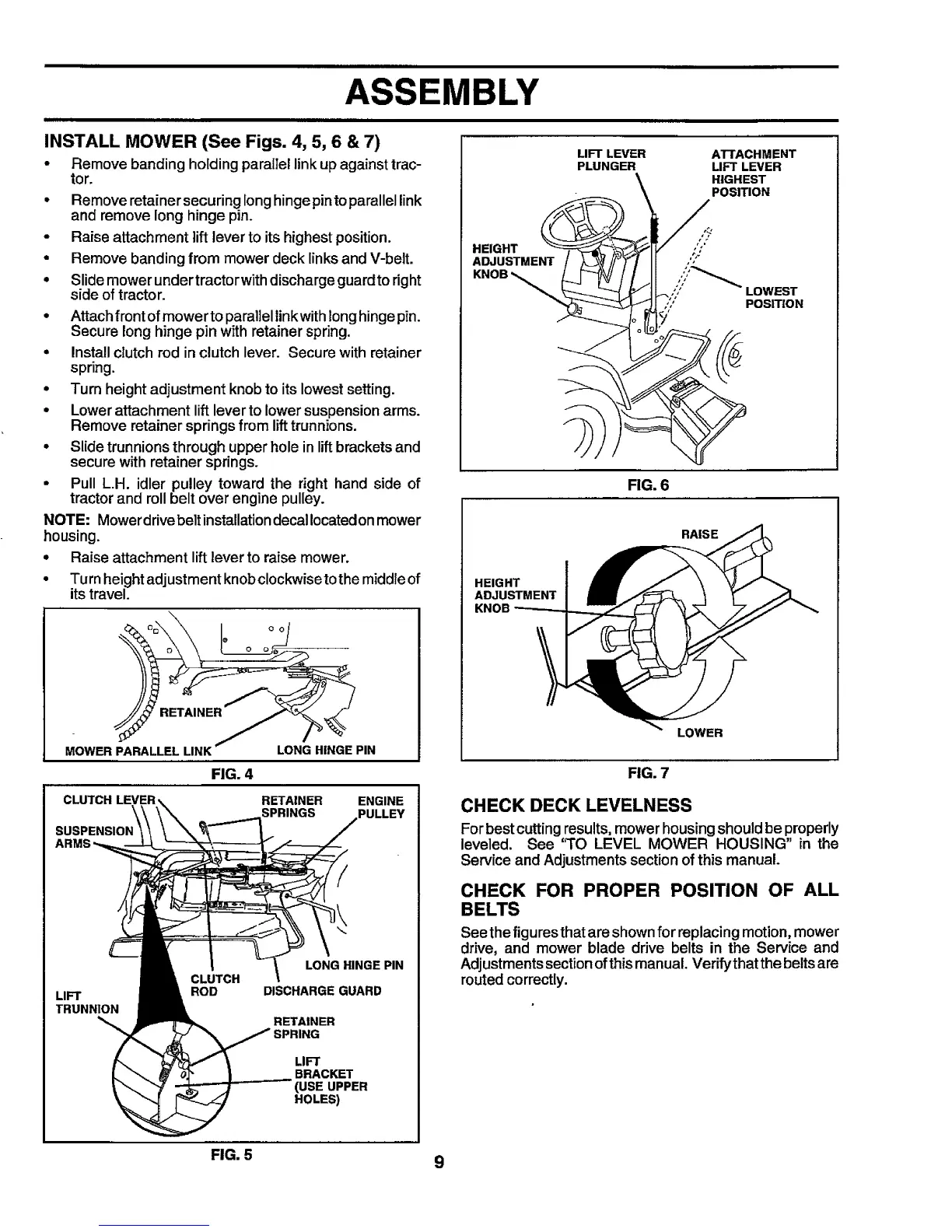

ASSEMBLY
INSTALL MOWER (See Figs. 4, 5, 6 & 7)
• Remove banding holding parallel linkup against trac-
tor.
• Remove retainersecuring longhingepinto parallellink
and remove long hinge pin.
• Raise attachment lift lever to its highest position.
• Remove banding from mower deck links and V-belt.
• Slidemowerundertractorwithdischargeguardtoright
side of tractor.
• Attach front of mower to parallel linkwith long hinge pin.
Secure long hinge pin with retainer spring.
• Install clutch rod in clutch lever. Secure with retainer
spring.
• Turn height adjustment knob to its lowest setting.
• Lower attachment lift lever to lower suspension arms.
Remove retainer springs from lift trunnions.
• Slide trunnions through upper hole in lift brackets and
secure with retainer springs.
• Pull L.H. idler pulley toward the right hand side of
tractor and roll belt over engine pulley.
NOTE: Mower drive belt installation decal located on mower
housing.
• Raise attachment lift lever to raise mower,
• Turnheightadjustment knobclockwisetothe middle of
itstravel.
0(3 oo
MOWER PARALLEL LINK LONG HINGE PIN
FIG. 4
CLUTCH RETAINER ENGINE
SPRINGS
SUSPENSIO_
LONG HINGE PIN
LIFT ROD DISCHARGE GUARD
TRUNNION
RETAINER
LIFT
BRACKET
(USE UPPER
HOLES)
LIFT LEVER ATI'ACHM ENT
PLUNGER LIFT LEVER
__ HIGHEST
POSITION
,,, 75"
KNOB, LOWEST
,',' POSITION
/
FIG. 6
RAISE
HEIGHT
ADJUSTMENT
KNOB
LOWER
FIG. 7
CHECK DECK LEVELNESS
Forbestcuttingresults,mower housingshouldbe properly
leveled. See 'q'O LEVEL MOWER HOUSING" in the
Service and Adjustments section of this manual.
CHECK FOR PROPER POSITION OF ALL
BELTS
See the figuresthat are shown for replacing motion,mower
drive, and mower blade drive belts in the Service and
Adjustments section of this manual. Verifythat the belts are
routed correctly.
FIG. 5 9
