OPERATION
KNOW YOUR TRACTOR
READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR TRACTOR.
Compare the illustrationswithyourtractortofamiliarize yourselfwiththe locationof variouscontrolsand adjustments. Save
this manual for future reference.
LIGHT SWITCH
ATrACHMENT CLUTCH LEVER
IGNITION SWITCH
LIFT LEVER PLUNGER
CHOKE
PEDAL
THRO'n'LE
CONTROL
ATTACHMENT
LIFT LEVER
BRAKE LEVER
GEARSHIFT LEVER
HEIGHT ADJUSTMENT KNOB

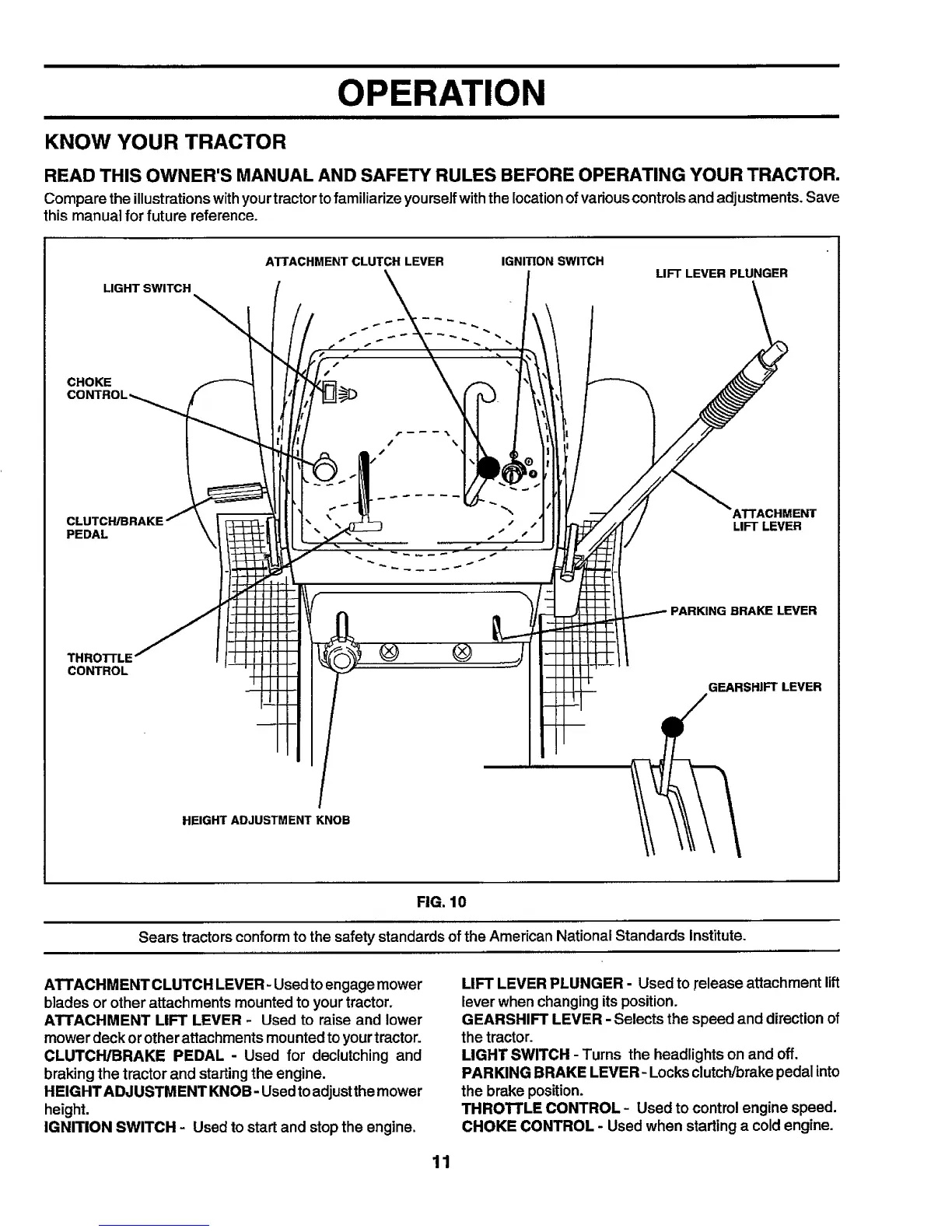

FIG. 10
Sears tractors conformto the safety standards of the American National Standards Institute.
ATFACHMENT CLUTCH LEVER- Used toengagemower
b]ades or other attachments mountedto yourtractor.
ATTACHMENT LIFT LEVER - Used to raise and lower
mower deck orother attachments mountedto yourtractor.
CLUTCH/BRAKE PEDAL - Used for declutching and
brakingthe tractor and startingthe engine.
HEIGHTADJUSTMENT KNOB- Usedtoadjustthemower
height.
IGNITION SWITCH = Used to start and stopthe engine.
LIFT LEVER PLUNGER - Used to release attachment lift
lever when changing its position.
GEARSHIFT LEVER - Selects the speed and directionof
the tractor.
LIGHT SWITCH - Turns the headlights on and off.
PARKING BRAKE LEVER- Locksclutch/brakepedal into
the brake position.
THROI"rLE CONTROL - Used to control engine speed.
CHOKE CONTROL - Used when startinga cold engine.
