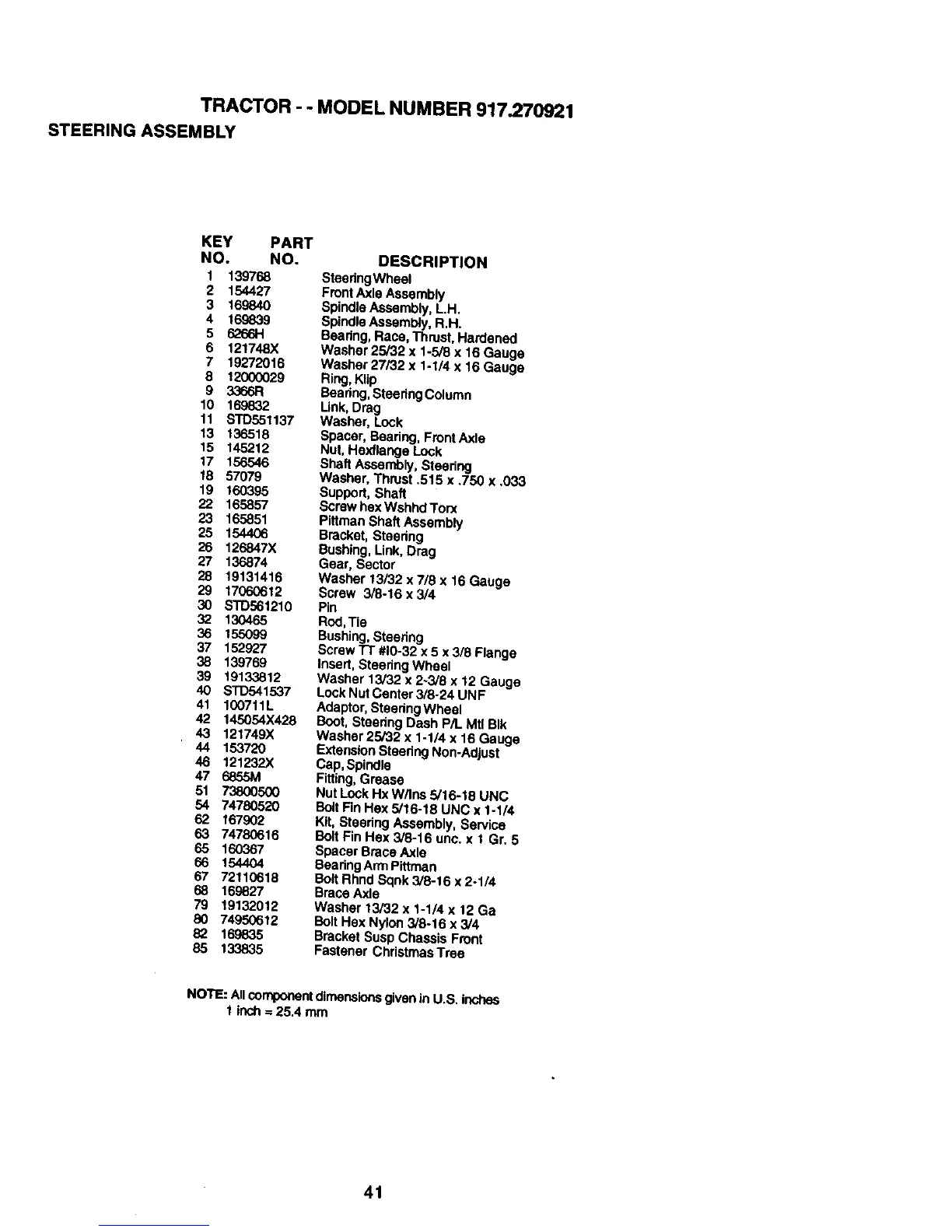

Craftsman 917.270921 - Page 41

TRACTOR - - MODEL NUMBER 917.270921
STEERING ASSEMBLY
KEY PART
NO. NO.
1 139768
2 154427
3 169840
4 169839
5 6266H
6 121748X
7 19272016
8 12000029
9 33661:1
10 169832
11 STD551137
13 136518
15 145212
17 156546
18 57079
19 160395
22 165857
23 165851
26 154406
26 126847X
27 136874
28 19131416
29 1706C612
30 STD561210
32 130465
36 155O99
37 152927
38 139769
39 19133812
40 STD541537
41 100711L
42 145054X428
43 121749X
44 153720
46 121232X
47 6855M
51 738OO5OO
54 74780520
62 167902
63 74780616
65 160367
66 1544O4
67 72110618
68 169827
79 19132012
80 74950612
82 169835
85 133835
DESCRIPTION
SteedngWheel
Front Axle Assembly
Spindle Assembly, L.H.
Spindle Assembly,R,H.
Beadng, Race, Thrust, Hardened
Washer 25/32 x 1-5/8 x 16 Gauge
Washer 27/32 x 1-1/4 x 16 Gauge
Ring,Kl_p
Beadng, Steedng Column
Link,Drag
Washer, Lock
Spacer, Beadng, Front Axte
Nut. Hextlange Lock
Shaft Assembly, Steedng
Washer, Thrust .515 x .750 x .033
Support, Shaft
Screw hex Wshhd Torx
Piftman Shaft Assembly
Bracket, Staedng
Bushing, Link. Drag
Gear, Sector
Washer 13/32 x7/8 x 16 Gauge
Screw 3/8-16 x 3/4
Pin
Rod,Tie
Bushing,Steedng
Screw "iT"#10-32x 5 x 3/8 Flange
Insert, Steedng Wheel
Washer 13/32 x 2-3/5 x 12 Gauge
LockNut Center 3/8-24 UNF
Adaptor,Steedng Wheel
Boot, Steedng Dash P/I. MU BIk
Washer 25/32 x 1-1/4 x 16 Gauge
Extension Steadng Non-Adjust
Cap, Spindle
Fitting,Grease
Nut Lock Hx W/Ins 5/16-18 UNC
Bolt FinHex 5/16-18 UNC x 1-1/4
Kit, Steedng Assembly, Service
Bolt Fin Hex 3/8-16 unc. x I Gr. 5
Spacer Brace Axle
Beadng ArmPittman
Bolt Rhnd Sqnk 3/8-16 x 2-1/4
Brace Axle
Washer 13/32 x 1-1/4 x 12 Ga
Bolt Hex Nylon 3/8-16 x 3/4
Bracket Susp Chassis Front
Fastener ChristmasTree
NOTE: Allcomponentdimensionsgivenin U.S. inches
1 inch = 26.4 mm
41
