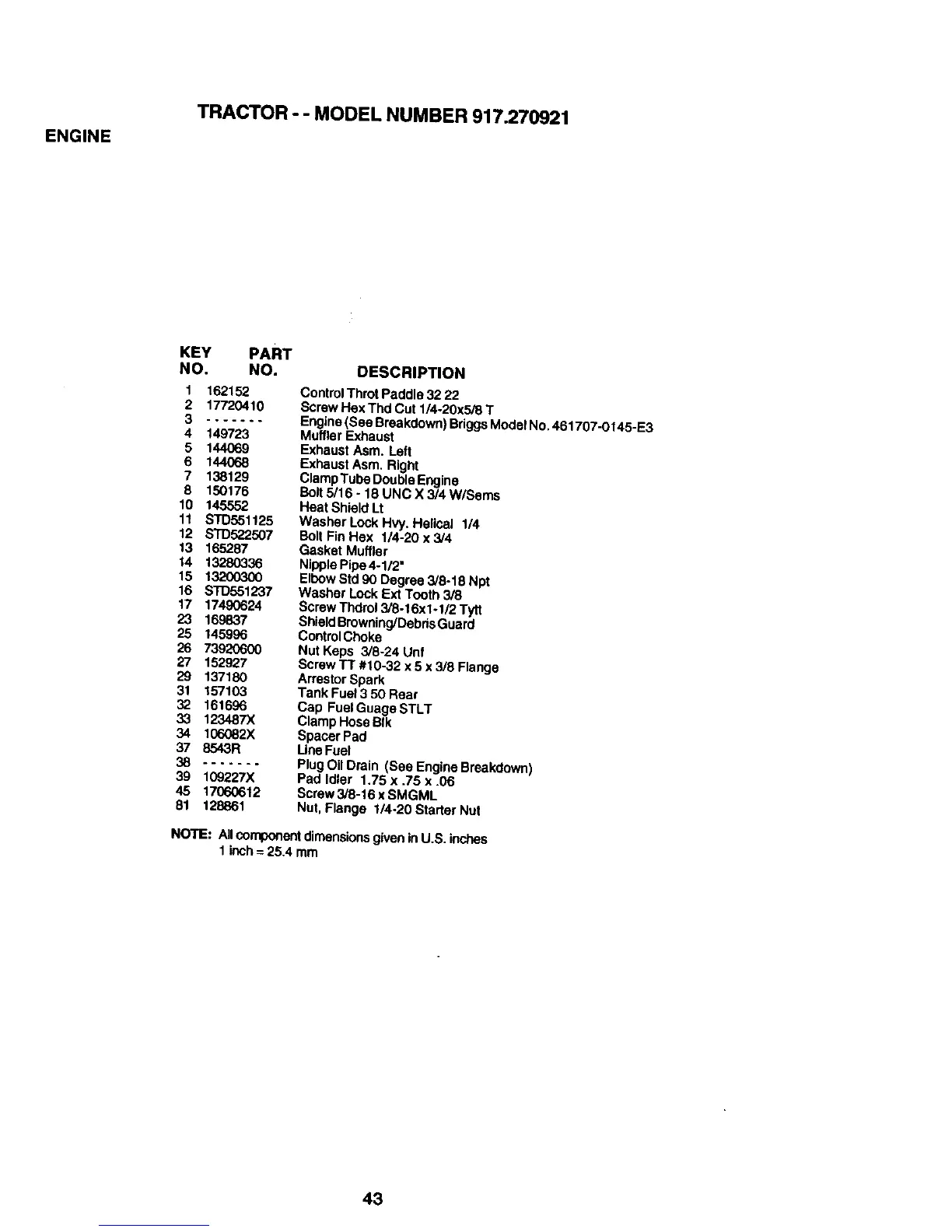

Craftsman 917.270921 - Page 43

ENGINE
TRACTOR - - MODEL NUMBER 917.270921
KEY PART
NO. NO. DESCRIPTION
1 162152
2 17720410
3 .......
4 149723
5 144069
6 144O68
7 138129
8 150176
10 145552
11 SXD551125
12 S'rD522507
13 165287
14 13280336
15 13200300
16 STD551237
17 17490624
23 169837
25 145996
26 73920600
27 152927
29 137180
31 157103
32 161696
33 123487X
34 106082X
37 8543R
38 --..--.
39 109227)(
45 17060612
81 128861
Control Throt Paddle 32 22
Screw Hex Thd Cut 1/4-20x5/8 T
Engine(Sea Breakdown) BrlggsModelNo. 461707-0145-E3
Muffler Exhaust
Exhaust Asm. Left
Exhaust Asm. Right
Clamp Tube DoubleEngine
Bolt 5/16 - 18 UNC X 3/4 W/Seres
Heat ShieldLt
Washer Lock Hvy. Helical 1/4
Bolt Fin Hex 1/4-20 x 3/4
Gasket Muffler
Nipple Pipe4-1/2"
Elbow Std 90 Degree 3/8-18 Npt
Washer Lock Ext Tooth 3/8
Screw Thdrol 3/8-16xl -1/2 Tytt
ShieldBrowning/DebrisGuard
ControlChoke
Nut Keps 3/8-24 Unf
Screw TT #10-32 x 5 x 3/8 Flange
Arrestor Spark
Tank Fuel 3 50 Rear
Cap Fuel Guage STLT
Clamp Hose 81k
Spacer Pad
Une Fuel
Plug Oil Drain (See Engine Breakdown)
Pad Idler 1.75 x .75 x .06
Screw 3/6-16 x SMGML
Nut, Flange 1/4-20 Starter Nut
NOTE: AllcomponentdimensionsgiveninU.S. inches
1 inch = 25.4 mm
43
