Craftsman 917.271821 - Seat Assembly Parts

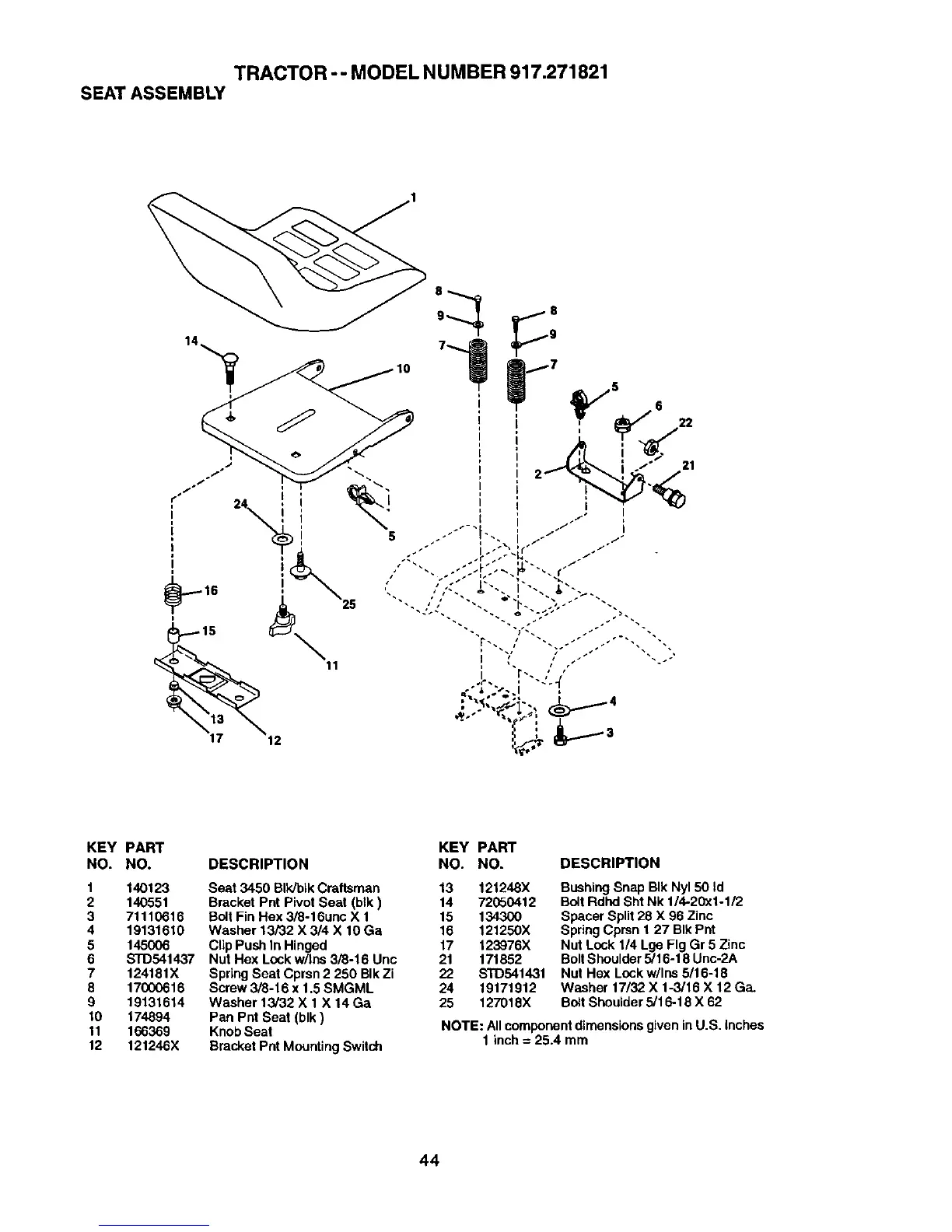

TRACTOR -- MODEL NUMBER 917.271821
SEATASSEMBLY
KEY PART
NO. NO.
1 140123
2 140551
3 71110616
4 19131610
5 145006
6 STD541437
7 124131X
8 17000616
9 19131614
10 174894
11 166369
12 121246X
KEY PART
DESCRIPTION NO. NO. DESCRIPTION
Seat 3450 BIk/blk Craftsman 13 121248X
Bracket Pnt Pivot Seat (btk) 14 72(;50412
Bolt Fin Hex 3/8-16unc X 1 15 134300
Washer 13/32 X 3/4 X 10 Ga 16 121250X
Clip Push In Hinged 17 123976X
Nut Hex Lock w/Ins 3/8-16 Unc 21 171852
Spring Seat Cprsn 2 250 BIk Zi 22 STD541431
Screw 3/8-16 x 1.5 SMGML 24 19171912
Washer 13/32 X 1 X 14 Ga 25 127018X
Pan Pnt Seat (blk)
Knob Seat
Bracket Pnt Mounting Switch
Bushing Snap BIk Nyl 50 Id
Bolt Rdhd Sht Nk 1/4-20x1-1/2
Spacer Split 28 X 96 Zinc
Spring Cprsn 1 27 BIk Pnt
Nut Lock 1/4 Lge Fig Gr 5 Zinc
BoltShoulder 5/16-18 Unc-2A
Nut Hex Lock w/Ins 5/16-18
Washer 17/32 X 1-3/16 X 12 Ga.
Bolt Shoulder 5/16-16 X 62
NOTE: All component dimensionsgiven in U.S. inches
1 inch = 25.4 mm
44
