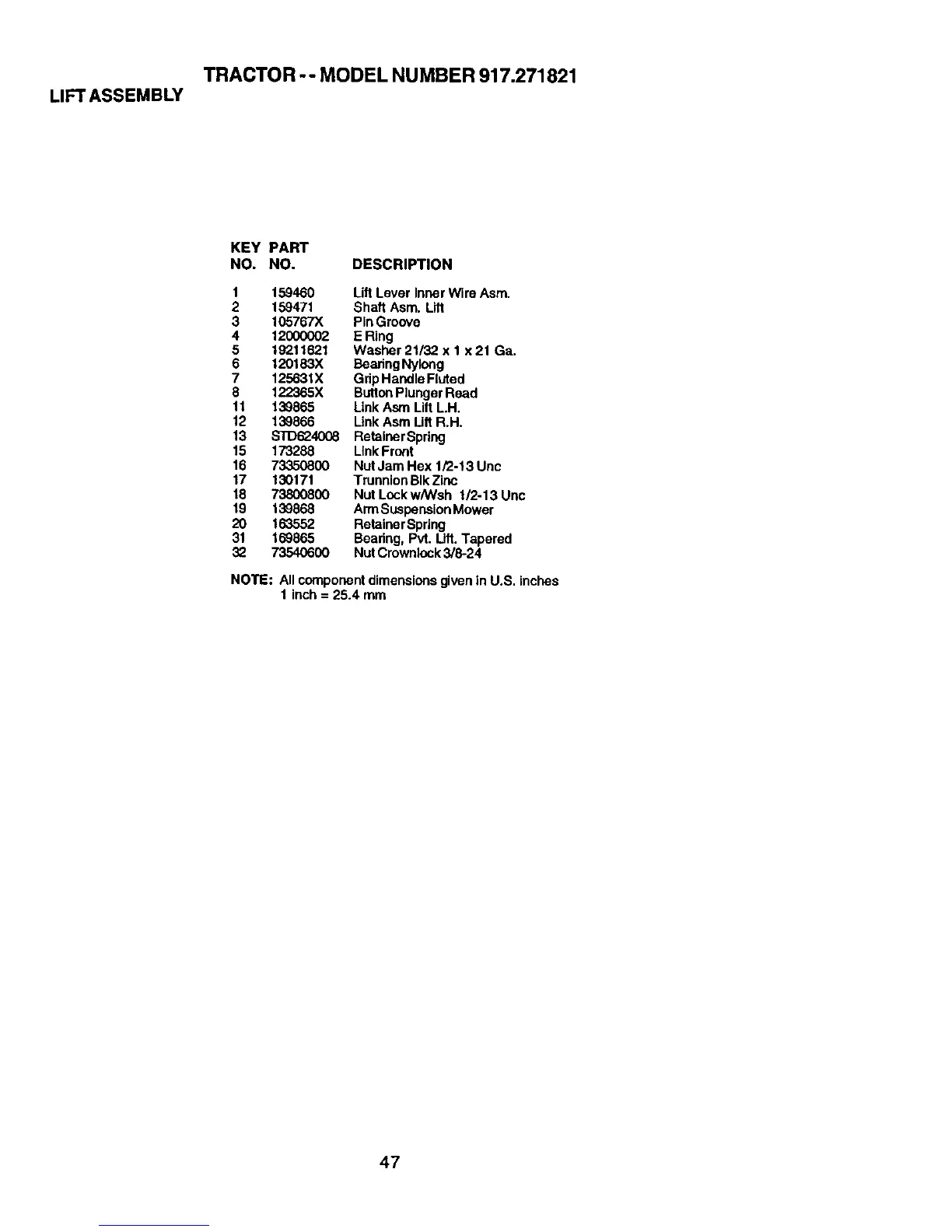

TRACTOR -- MODEL NUMBER 917.271821
LIFTASSEMBLY
KEY PART
NO. NO. DESCRIPTION
1 159460 Lift Lever Inner Wire Asm.
2 159471 Shaft Asm. Lilt
3 105767X Pin Groove
4 12000002 E Ring
5 19211621 Washer 21/32 x 1 x21 Ga.
6 120183X BearingNylong
7 125631X Grip Handle Fluted
8 122365X ButtonPlunger Read
11 139865 Link Asm Lift L.H.
12 139866 Link Asm Uft R.H.
13 $1"D324008 Retainer Spring
15 173288 Link Front
16 73,350800 Nut Jam Hex 1/2-13 Unc
17 130171 Truonion BIk Zinc
18 738(X)800 Nut Lockw/Wsh 1/2-13 Unc
19 139868 ArmSuspension Mower
20 163552 Retainer Spring
31 169865 Bearing, Pvt. Lift. Tapered
32 73540600 Nut Crownlock 3/8-24
NOTE: All component dimensions givenin U.S. inches
1 inch = 25.4 mm
