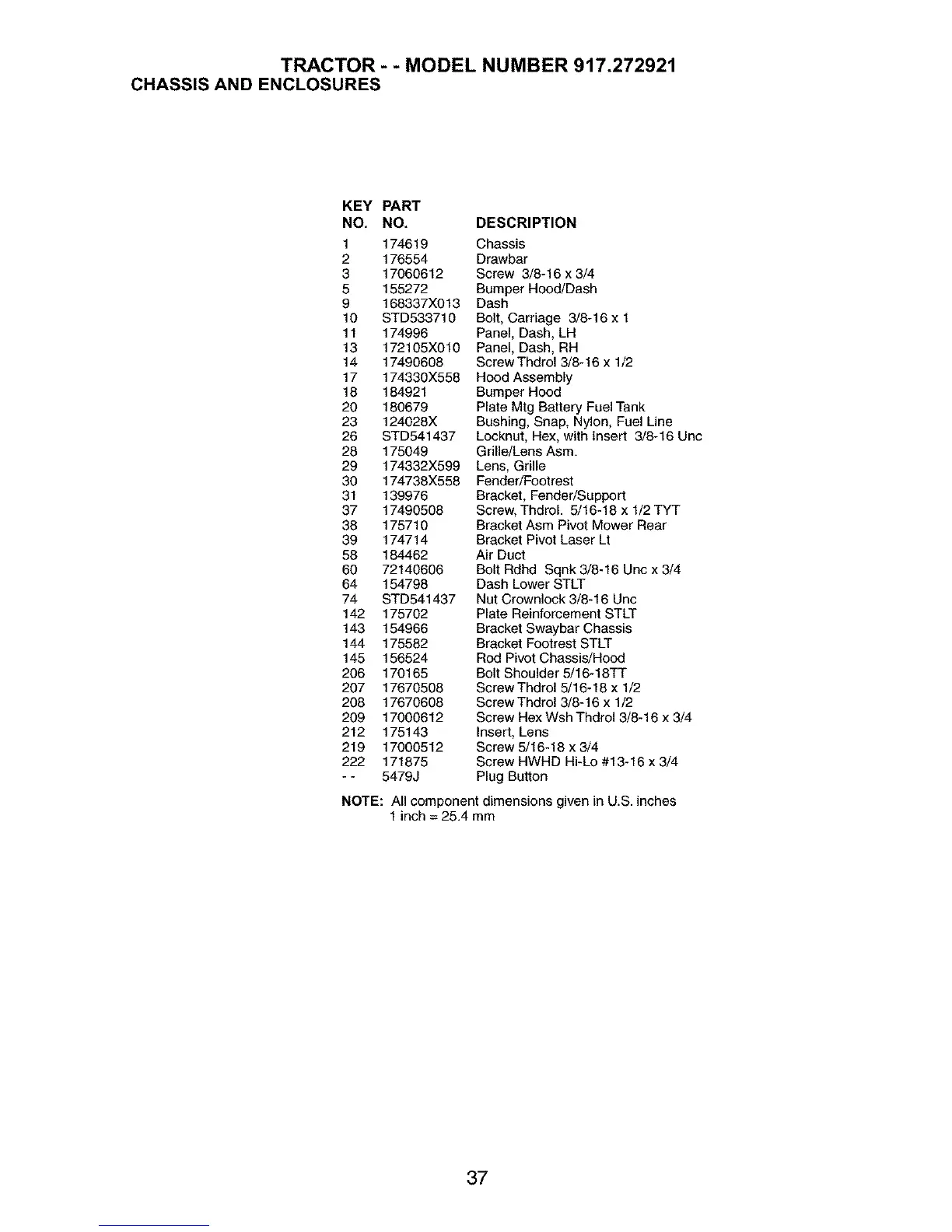

TRACTOR - - MODEL NUMBER 917.272921
CHASSIS AND ENCLOSURES
KEY PART
NO, NO. DESCRIPTION
1 174619 Chassis
2 176554 Drawbar
3 17060612 Screw 3/8-16 x 3/4
5 155272 Bumper Hood/Dash
9 168337X013 Dash
10 STD533710 Bolt, Carriage 3/8-16 x 1
11 174996 Panel, Dash, LH
13 172105X010 Panel, Dash, RH
14 17490608 ScrewThdrol 3/8-16 x 1/2
17 174330X558 Hood Assembly
18 184921 Bumper Hood
20 180679 Plate Mtg Battery Fuel Tank
23 124028X Bushing, Snap, Nylon, Fuel Line
26 STD541437 Lecknut, Hex, with Insert 3/8-16 Unc
28 175049 Grille/Lens Asm.
29 174332X599 Lens, Grille
30 174738X558 Fender/Footrest
31 139976 Bracket, Fender/Support
37 17490508 Screw, Thdrol. 5/16-18 x 1/2 TYT
38 175710 Bracket Asm Pivot Mower Rear
39 174714 Bracket Pivot Laser Lt
58 184462 Air Duct
60 72140606 Bolt Rdhd Sqnk 3/8-16 Unc x 3/4
64 154798 Dash Lower STLT
74 STD541437 Nut Crownlock 3/8-16 Unc
142 175702 Plate Reinforcement STLT
143 154966 Bracket Swaybar Chassis
144 175582 Bracket Footrest STLT
145 156524 Red Pivot Chassis/Hood
206 170165 Bolt Shoulder 5/16-18TT
207 17670508 ScrewThdrol 5/16-18 x 1/2
208 17670608 ScrewThdrol 3/8-16 x 1/2
209 17000612 Screw Hex Wsh Thdrol 3/8-16 x 3/4
212 175143 Insert, Lens
219 17000512 Screw 5/16-18 x 3/4
222 171875 Screw HWHD Hi-Lo #13-16 x 3/4
- - 5479J Plug Button
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
37
